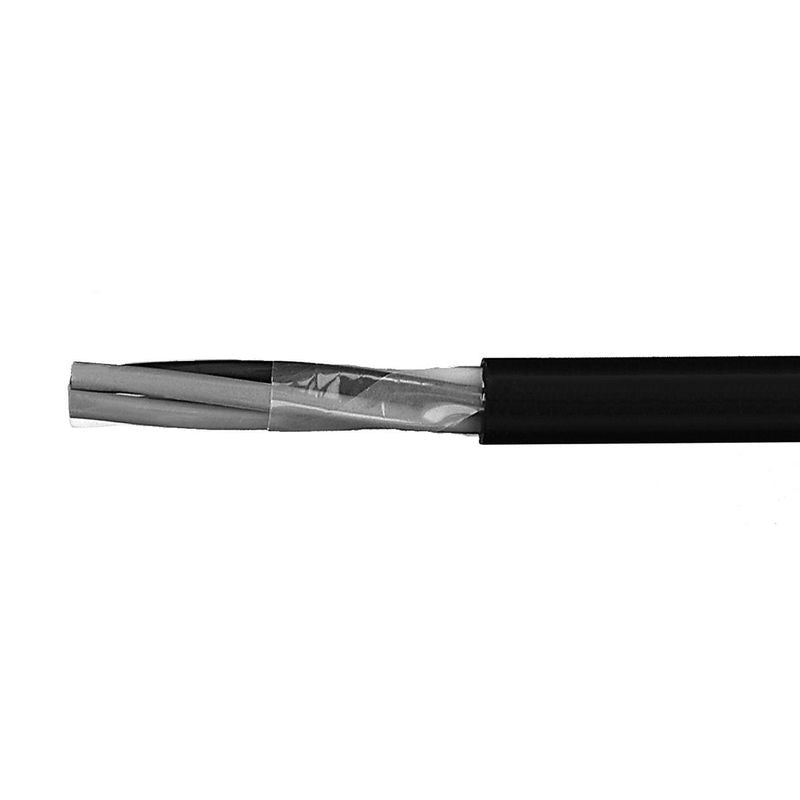

OMNI A11404 Cable 14/4 TC-ER Tray Cable

Product Description

The OMNI A11404 is a Type TC-ER unshielded tray cable suitable for 600V applications. This cable features four 14 AWG conductors, crafted from annealed bare stranded copper, with each conductor containing seven strands. The insulation is made from flame-retardant polyvinyl chloride (PVC) along with a clear nylon coating that enhances durability. A protective PVC jacket that is both flame-retardant and sunlight-resistant ensures longevity in various conditions. The cable can be used in free air, in raceways, direct burial, and in both wet and dry locations. The conductors are color-coded black, red, blue, and orange, providing clear identification.

• Four 14 AWG annealed bare stranded copper conductors
• Flame-retardant PVC insulation with a PVC jacket
• Rated for 600V; suitable for direct burial and various locations

Product Highlights

This cable is ideal for electrical installations requiring flexibility and durability across a range of applications.

Product Information

Standard Information

• Brand: OMNI Cable
• Manufacturer Part Number: A11404

Technical Specifications

• Strands: 7
• Outside Diameter: 0.365 inches
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 600 Volt
• Type: Type TC-ER Unshielded
• Conductor Material: Bare Copper
• Number of Conductors: 4
• Color: Black, Red, Blue, Orange
• Jacket Material: PVC
• Insulation Material: PVC/Nylon
• Gauge: 14 AWG
• Application: Free air, raceways, direct burial, wet/dry locations
• Jacket Color: Black
