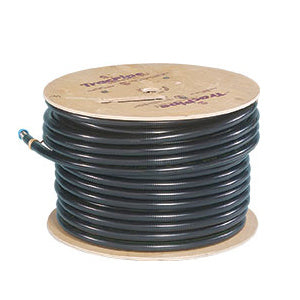

Omegaflex TRACPIPECS34-50 Tracpipe Counterstrike Flexible Gas Piping 3/4 Inches X 50 Foot Roll

Product Description

The OmegaFlex TRACPIPECS34-50 TracPipe CounterStrike is a flexible gas piping system designed for use in residential and light commercial construction. It is sold in a 3/4 inch diameter by 50 foot roll, making it a practical choice for gas distribution runs of moderate length. HVAC installers, plumbers, and gas fitters rely on this type of corrugated stainless steel tubing, commonly known as CSST, for routing natural gas and propane lines through walls, floors, and other structural elements. The flexible nature of the tubing allows for easier installation around obstacles compared to rigid black iron pipe, reducing the number of fittings required and speeding up job completion. The TRACPIPECS34-50 features a semi-rigid 300 Series stainless steel core that provides durability and resistance to corrosion over the life of the system. The outer jacket is made from a proprietary polymer with energy dissipating properties, which is the defining feature of the CounterStrike product line. This jacket is engineered to help reduce the risk of puncture from an electrical arc in the event of a nearby lightning strike, a key safety consideration that sets CounterStrike apart from standard CSST products. The jacket is compliant with ASTM E-84 standards, with a flame spread index not exceeding 25 and a smoke density index not exceeding 50, meeting fire safety requirements for building applications. The system is CSA approved, confirming it meets recognized safety standards for gas distribution systems in North America. Sold in increments of 50 feet, this roll is ready for field installation in new construction, renovation, or replacement projects.

• Semi-rigid 300 Series stainless steel corrugated tubing for flexible natural gas and propane distribution
• Proprietary polymer outer jacket with energy dissipating properties for enhanced lightning arc protection
• ASTM E-84 compliant with flame spread not exceeding 25 and smoke density not exceeding 50

Product Highlights

The OmegaFlex TRACPIPECS34-50 TracPipe CounterStrike delivers a CSA-approved, arc-resistant flexible gas piping solution in a convenient 3/4 inch by 50 foot roll, suited for professional gas system installations in residential and commercial settings.

Product Information

Standard Information

• Brand: OMEGAFLEX
• Manufacturer Part Number: TRACPIPECS34-50

Technical Specifications

• Pipe Diameter: 3/4 inches
• Roll Length: 50 feet
• Tubing Material: Semi-rigid 300 Series Stainless Steel
• Jacket Material: Proprietary Polymer with Energy Dissipating Properties
• Flame Spread Index: 25 maximum (ASTM E-84)
• Smoke Density Index: 50 maximum (ASTM E-84)
• Certification: CSA Approved
• Gas Type Compatibility: Natural Gas and Propane
