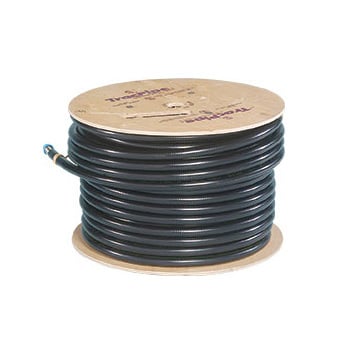

Omegaflex TRACPIPECS114-150 Tracpipe Counterstrike Corrugated Stainless Steel Gas Line 1-1/4 Inches X 150 Foot Roll

Product Description

The Omegaflex TRACPIPECS114-150 is a 1-1/4 inches diameter by 150 foot roll of TracPipe CounterStrike corrugated stainless steel tubing (CSST) designed for residential and commercial fuel gas distribution systems. This product is built for HVAC technicians, plumbers, gas fitters, and mechanical contractors who need a reliable, code-compliant flexible gas piping solution for natural gas and propane installations. The TRACPIPECS114-150 features a proprietary energy dissipating black polymer jacket that sets it apart from standard CSST. This jacket is engineered to help protect the stainless steel pressure liner and other connected fuel gas system components in the event that the CounterStrike piping becomes energized due to a nearby or direct lightning strike. Lightning-induced electrical surges are a known cause of CSST damage and gas system failures, and the CounterStrike jacket addresses this risk directly. The inner tubing is semi-rigid 300 Series stainless steel, which provides corrosion resistance, flexibility for routing through walls, floors, and framing, and durability for long-term service in both above-ground and concealed installations. The 150 foot roll length makes this product well-suited for larger projects or multi-zone gas piping runs where longer continuous lengths reduce the number of fittings and connections required. The jacket material meets ASTM E-84 standards with a flame spread index not to exceed 25 and a smoke density not to exceed 50, supporting compliance with building and fire codes. The TRACPIPECS114-150 is CSA approved for use in fuel gas systems and is compatible with standard TracPipe CounterStrike fittings and manifolds. It is sold in 150 foot increments.

• Energy dissipating black polymer jacket protects against lightning-induced electrical surges on the gas line
• Semi-rigid 300 Series stainless steel inner tubing provides corrosion resistance and flexible routing in tight spaces
• CSA approved and ASTM E-84 compliant with flame spread not to exceed 25 and smoke density not to exceed 50

Product Highlights

The Omegaflex TRACPIPECS114-150 TracPipe CounterStrike delivers 150 feet of lightning-resistant flexible gas piping in a 1-1/4 inch diameter, combining 300 Series stainless steel construction with a proprietary energy dissipating jacket for code-compliant fuel gas installations.

Product Information

Standard Information

• Brand: OMEGAFLEX
• Manufacturer Part Number: TRACPIPECS114-150

Technical Specifications

• Pipe Diameter: 1-1/4 inches
• Roll Length: 150 feet
• Tubing Material: Semi-rigid 300 Series Stainless Steel
• Jacket Material: Proprietary Polymer with Energy Dissipating Properties
• Approval: CSA Approved
• Flame Spread Index: 25 maximum (ASTM E-84)
• Smoke Density Index: 50 maximum (ASTM E-84)
• Application: Fuel Gas Distribution - Natural Gas and Propane
