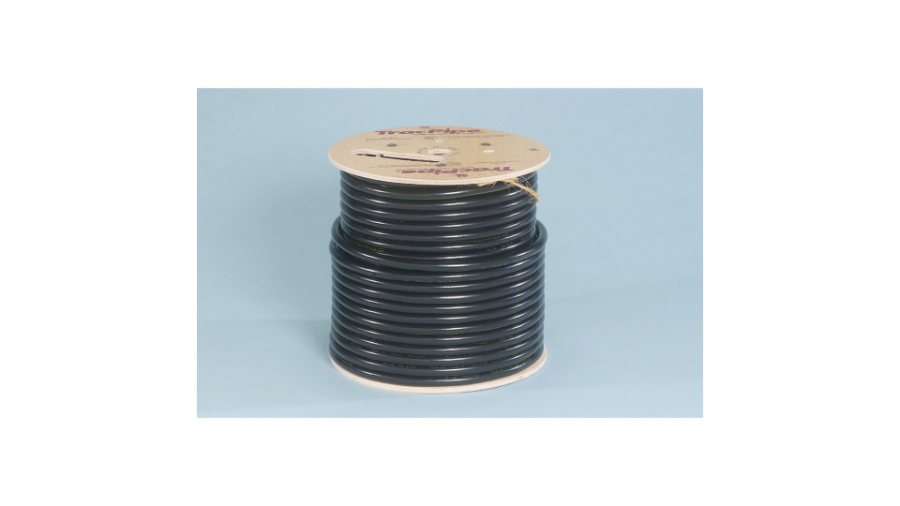

Omega Flex FGP-CS-750-250 Tubing 3/4 x 250' Black Stainless Steel CounterStrike FGP-CS-750-250

Product Description

The Omega Flex FGP-CS-750-250 is a flexible gas pipe designed for efficient gas distribution. It features a nominal size of three-fourth inches and comes in a 250-foot length. This product is constructed from stainless steel with a polymer jacket, providing enhanced durability and resistance to environmental factors.

• Flexible gas pipe suitable for both natural gas and propane applications.
• Standard compliance for safety in installation.
• Energy-efficient design reduces installation time.

Product Highlights

The CounterStrike design offers superior electrical arcing resistance. It contributes to a safer installation environment compared to traditional CSST products.

Product Information

Standard Information

• Manufacturer: Omega Flex
• Part Number: FGP-CS-750-250

Technical Specifications

• Type: Tubing
• Material: Stainless Steel
• Dimensions: 3/4 x 250'
• Inside Diameter: 0.82 inches
• Outside Diameter: 1.14 inches
• Wall Thickness: 0.01 inches
• Working Pressure: 25 psi
• Temperature Rating: -20 to 200 degrees F
• Compliance Standards: ANSI LC1/CSA 6.26, ANSI Z223.1, ASTM E84, ICC Codes
