Product Description

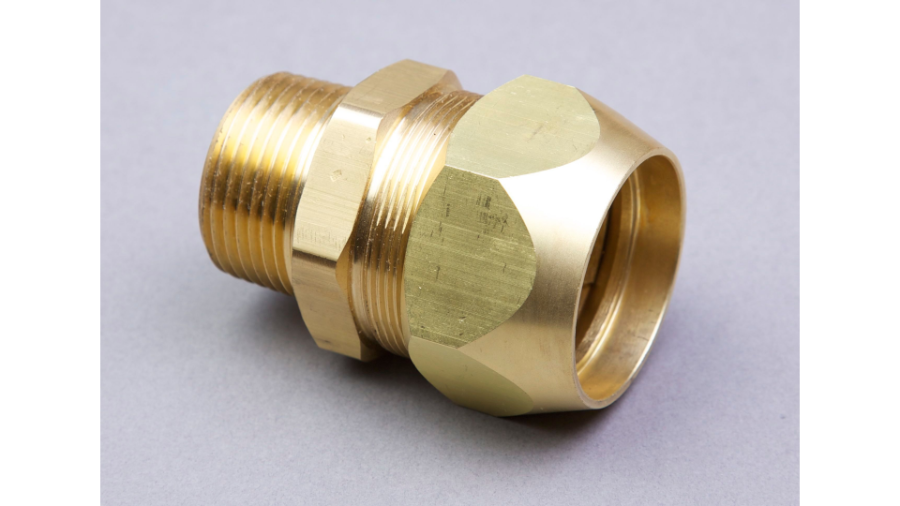

The Omega Flex FGPSFST500 is an AutoSnap 1/2 inch MNPT straight fitting designed for use with CounterStrike CSST. This fitting simplifies gas piping installations by eliminating the need for disassembly or reassembly, streamlining the installation process. Its design reduces the presence of small components, allowing for easier handling in challenging environments such as tight spaces or cold conditions.
- Designed for 1/2 inch MNPT connections
- Eliminates disassembly or reassembly
- Compatible with TracPipe and CounterStrike systems
Product Highlights
This fitting is CSA listed and offers a metal-to-metal seal that enhances reliability without exposing stainless steel pipe. Reusability and reduced torque values make it ideal for installers.
Product Information
Standard Information
-
Brand: Omega Flex
-
Part Number: FGPSFST500
Technical Specifications
-
Material: Yellow Brass
-
Connection Size: 1/2 inch
-
Connection Type: MNPT
-
Fitting Type: AutoSnap
-
Maximum Pressure (PSI): 125
-
Pressure Rating: 25 PSIG
-
Weight: 0.4 lbs
-
Dimensions: 1.25 x 1.25 x 2.25 inches
-
Country of Origin: USA
