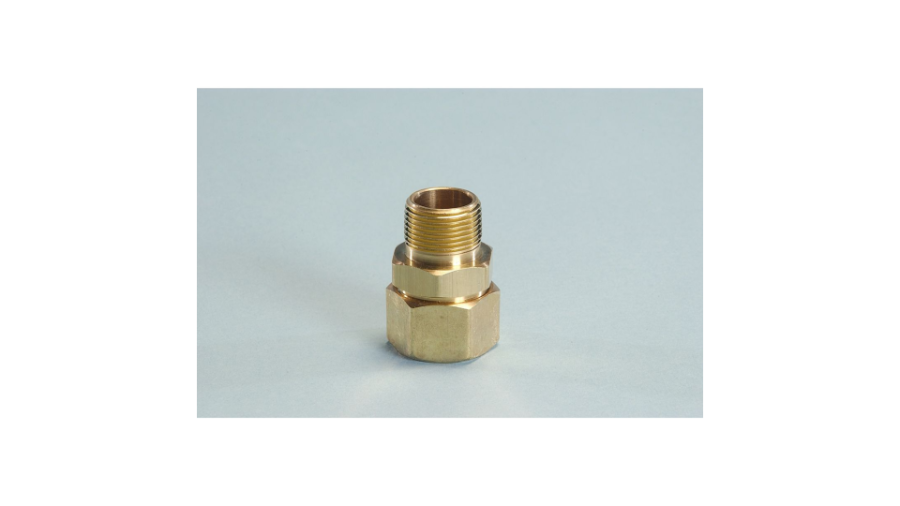

Omega Flex FGP-FST-1000 Straight Mechanical Fitting, 1 Yellow Brass Stainless Steel AutoFlare

Product Description

The Omega Flex FGP-FST-1000 is a straight mechanical fitting designed for use with TracPipe or CounterStrike tubing. It features a self-flaring design that eliminates the need for special tools during installation. This fitting is made from yellow brass and includes stainless steel components.

• Self-piloting and self-flaring design
• Compatible with NPT threads
• Rated for both indoor and outdoor applications

Product Highlights

This fitting supports gas piping systems with a maximum operating pressure rating of 125 PSIG.

Product Information

Standard Information

• Type: Straight Mechanical Fitting
• Brand: Omega Flex
• Part Number: FGP-FST-1000

Technical Specifications

• Material: Yellow Brass
• Connection Type: MNPT x TracPipe PS-II/CounterStrike
• Nominal Size: 1 inch
• Diameter: 1-5/8 inches
• Length: 2-3/8 inches
• Maximum Pressure: 125 PSIG
• Country of Origin: USA
