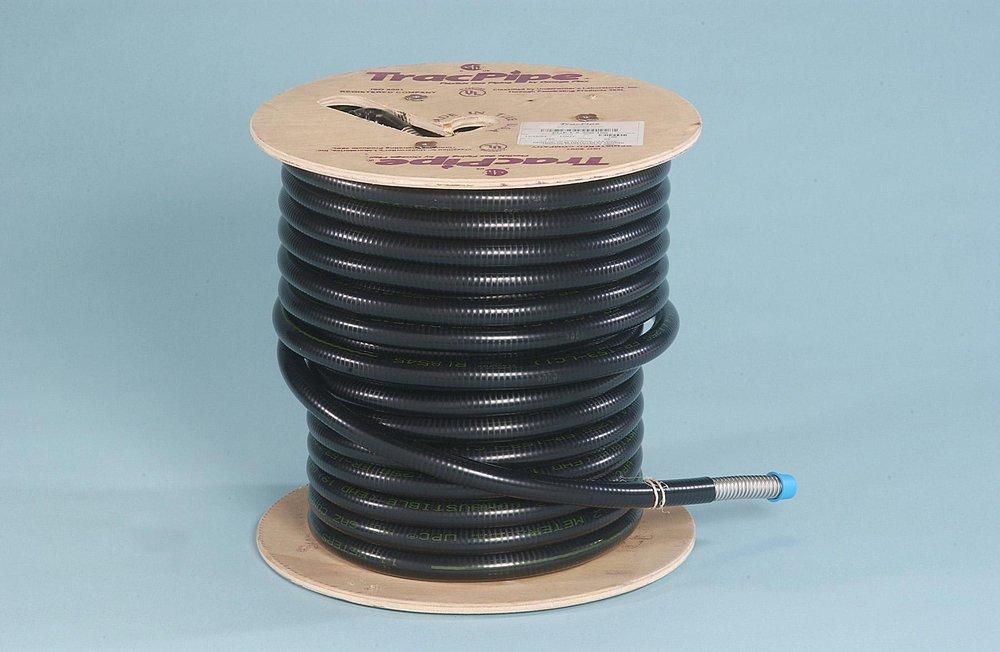

Omega Flex FGP-CS-500-100 CounterStrike 1/2 in x 100 ft Gas Pipe

Product Description

The Omega Flex FGP-CS-500-100 CounterStrike 1/2 inch x 100 ft Flexible Gas Pipe is designed for safe gas transmission in residential and commercial settings. This tubing is constructed from semi-rigid stainless steel with a proprietary polymer jacket and is UL listed for safety.

• Flexible design allows for easier installation.
• Resistant to damage from seismic activity and lightning.
• Meets standards for flame spread and smoke density.

Product Highlights

CounterStrike pipe is suitable for natural gas and propane applications, ensuring reliable and efficient gas flow.

Product Information

Standard Information

• Brand: Omega Flex
• Part Number: FGP-CS-500-100

Technical Specifications

• Material: 300 Series Stainless Steel
• Nominal Size: 1/2 inch
• Length: 100 ft
• Inside Diameter: 0.597 inches
• Outside Diameter: 0.888 inches
• Wall Thickness: 0.01 inches
• Working Pressure: 25 psi
• Temperature Rating: -20 to 200 degrees Fahrenheit
• Standards Complied: ANSI LC1/CSA 6.26, ASTM E84, UL 723
