Omega Flex FGP-CS-100-50 CounterStrike 1 Reel 1 x 50 ft

Product Description

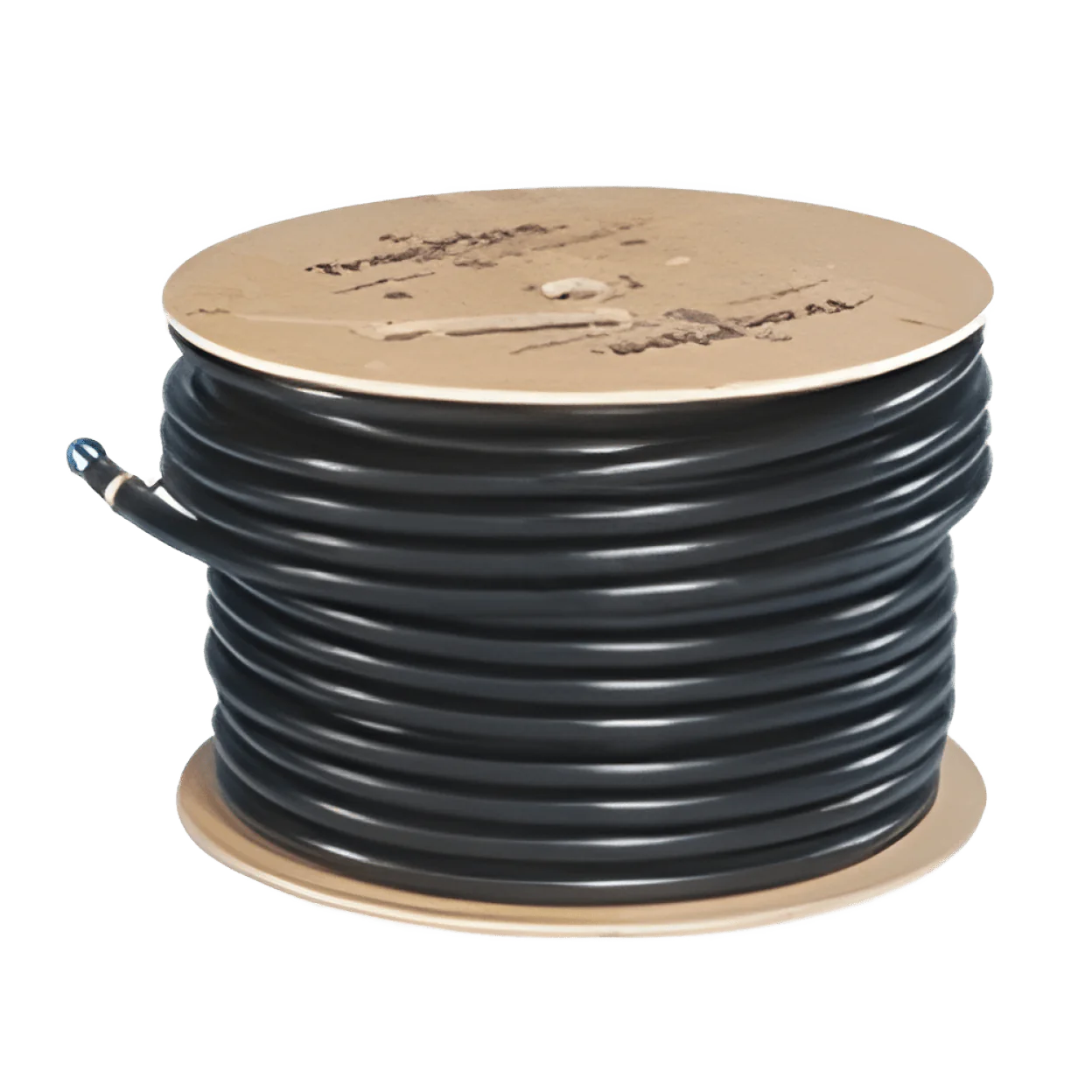

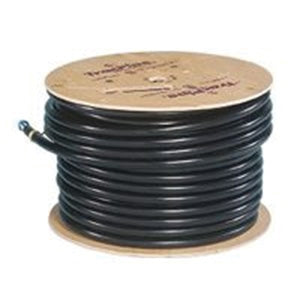

The Omega Flex FGP-CS-100-50 is a CounterStrike Gas Pipe with a nominal size of one inch, provided on a fifty-foot reel. This flexible gas pipe is designed for both natural gas and propane applications.

• Material: 300 series stainless steel with a polymer jacket for enhanced protection.
• Operating temperature range: -20 to 200 degrees Fahrenheit.
• Working pressure rated at 25 psi.

Product Highlights

This product is suitable for standard gas piping applications, offering improved lightning protection compared to traditional CSST. The semi-rigid design allows for easier installation, saving time and reducing costs.

Product Information

Standard Information

• Brand: Omega Flex
• MPN: FGP-CS-100-50

Technical Specifications

• Inside Diameter: 1.06 inches
• Outside Diameter: 1.415 inches
• Wall Thickness: 0.01 inches
• Length: 50 feet
• End Style: CounterStrike
• Standards/Approval: ANSI LC1/CSA 6.26, ANSI Z223.1, ASTM E84
• Applications: For natural gas and liquified petroleum installations
