Product Description

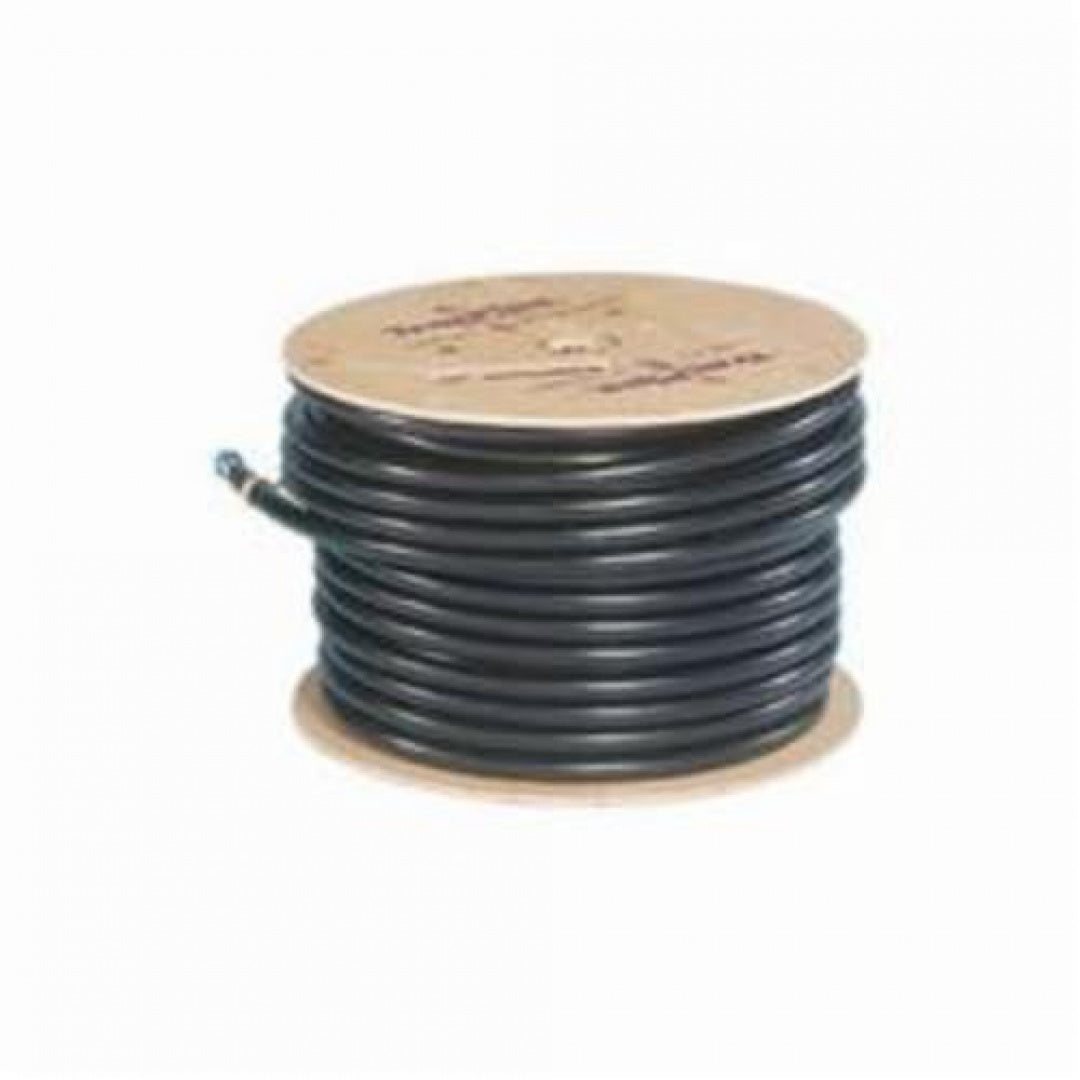

The Omega Flex CounterStrike flexible gas pipe, cataloged under part number FGP-CS-100-180, stands out in both performance and reliability. Designed for efficient gas transport, this 1-inch diameter pipeline extends up to 180 feet, coated in black for durability and resistance against environmental factors.
- Highly resistant to lightning-induced damages.
- Features a semi-rigid, non-annealed construction that enhances its crush resistance, simplifying installation.
- No additional bonding required, meeting all relevant safety standards including ANSI, CSA, ASTM, and UL.
Product Highlights
Engineered with a proprietary polymer jacket, the Omega Flex CounterStrike is optimized for dissipating energy from electrical arcing, offering superior protection over traditional gas piping solutions. Its unique design eliminates the need for reassembly during installations, significantly reducing setup time and labor costs.
Product Information
Standard Information
-
Brand: Omega Flex
-
MPN: FGP-CS-100-180
Technical Specifications
-
Material: 300 Stainless Steel
-
Length: 180 ft
-
Working Pressure: 25 psi
-
Temperature Rating: -20 to 200 degrees Fahrenheit
-
Standards: ANSI LC1/CSA 6.26, ANSI Z223.1, ASTM E84, ICC Codes, UL 723
