Omegaflex FGP-UGP-125-150 TracPipe Underground CounterStrike Pipe (1-1/4 in x 150 ft)

Product Description

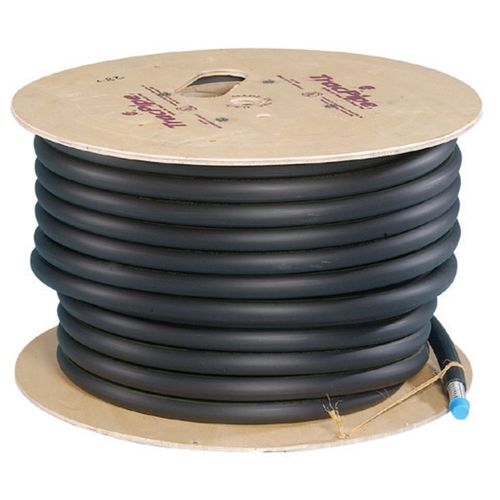

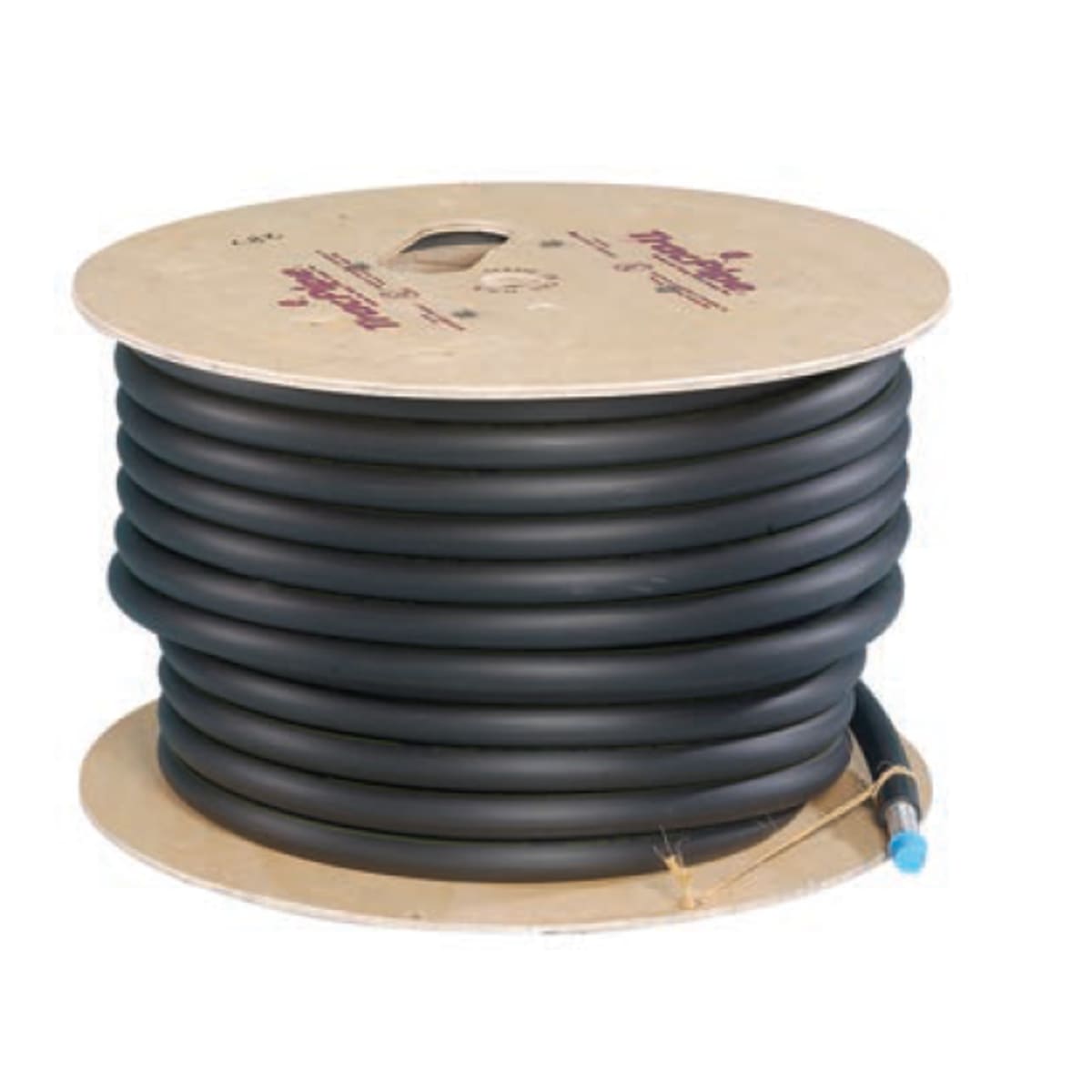

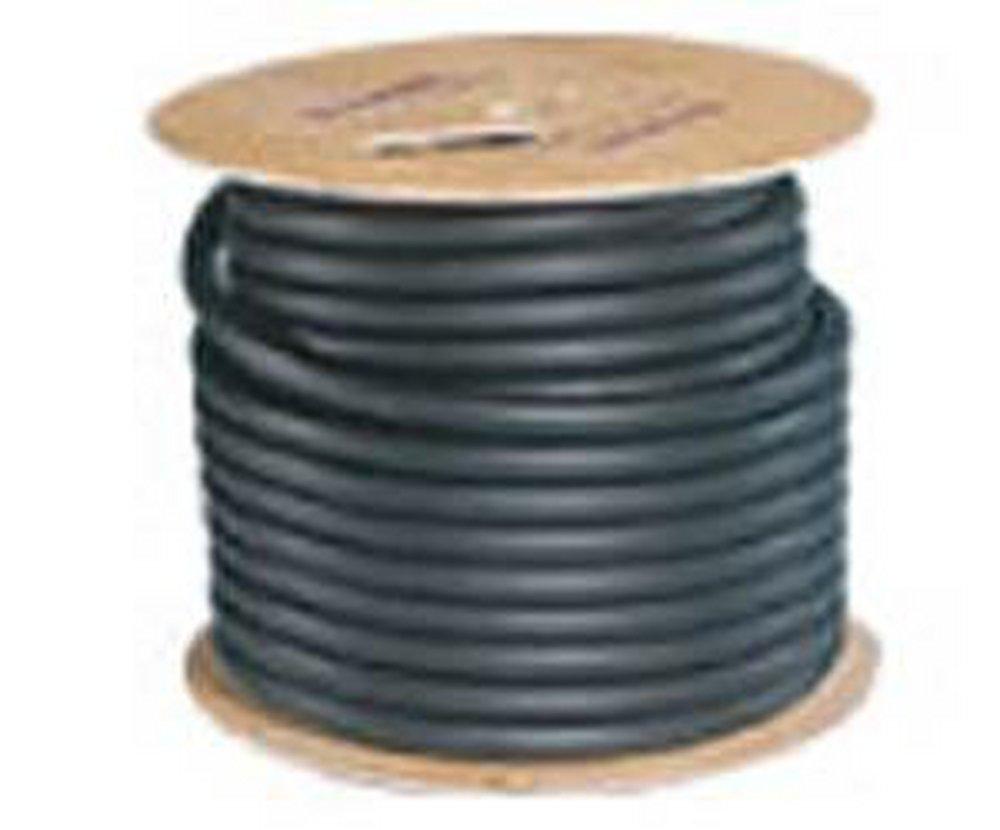

Omegaflex FGP-UGP-125-150 is a TracPipe PS-II underground CounterStrike flexible corrugated stainless steel gas pipe supplied on a 150 ft reel. It includes a pre-sleeved polyethylene jacket with yellow layline that provides a vented containment system for underground, under-slab, rooftop, or exterior wall gas distribution. The nominal 1-1/4 in tubing supports NPT connections and installs in long continuous lengths to reduce joints.

• Nominal size 1-1/4 in, length 150 ft; outside diameter 1.96 in; wall thickness 0.012 in
• Corrugated stainless steel tubing with pre-sleeved polyethylene jacket and yellow layline; vent-capable containment
• Operating pressure 25 psig (maximum 125 psig); temperature range -20 F to 200 F; CSA, IAPMO, UL, ANSI listings

Product Highlights

Pre-sleeved corrugated stainless steel gas tubing for underground installations with vented containment and multiple code listings.

Product Information

Standard Information

• Brand: OMEGAFLEX
• Manufacturer Part Number: FGP-UGP-125-150
• Country of Origin: USA

Technical Specifications

• Brand: Omegaflex
• MPN: FGP-UGP-125-150
• Manufacturer Part Number: TRAC-FGP-UGP-125-150
• Size: 1-1/4 in (nominal)
• Length: 150 ft
• Outside Diameter: 1.96 in
• Wall Thickness: 0.012 in
• Material: Corrugated stainless steel tubing with pre-sleeved polyethylene jacket
• Jacket: Pre-sleeved polyethylene jacket with yellow layline; vented containment
• Pipe Wall Type: Corrugated
• Operating Pressure: 25 psig (typical operating)
• Maximum Operating Pressure: 125 psig (maximum)
• Temperature Range: -20 F to 200 F
• Applications: Underground, under slab, rooftop, exterior wall, pool heaters, school labs, barbecues, island ranges, gas lamps/torches, stadiums
• Certifications: CSA 6.26; CSA B149.1; IAPMO listed; UL listed; ANSI LC1; ANSI Z223.1; ASTM A-240; International Code Council
• Package Type: Reel
• Country of Origin: USA
• Weight: 137 lb
• UPC: 840242203049
