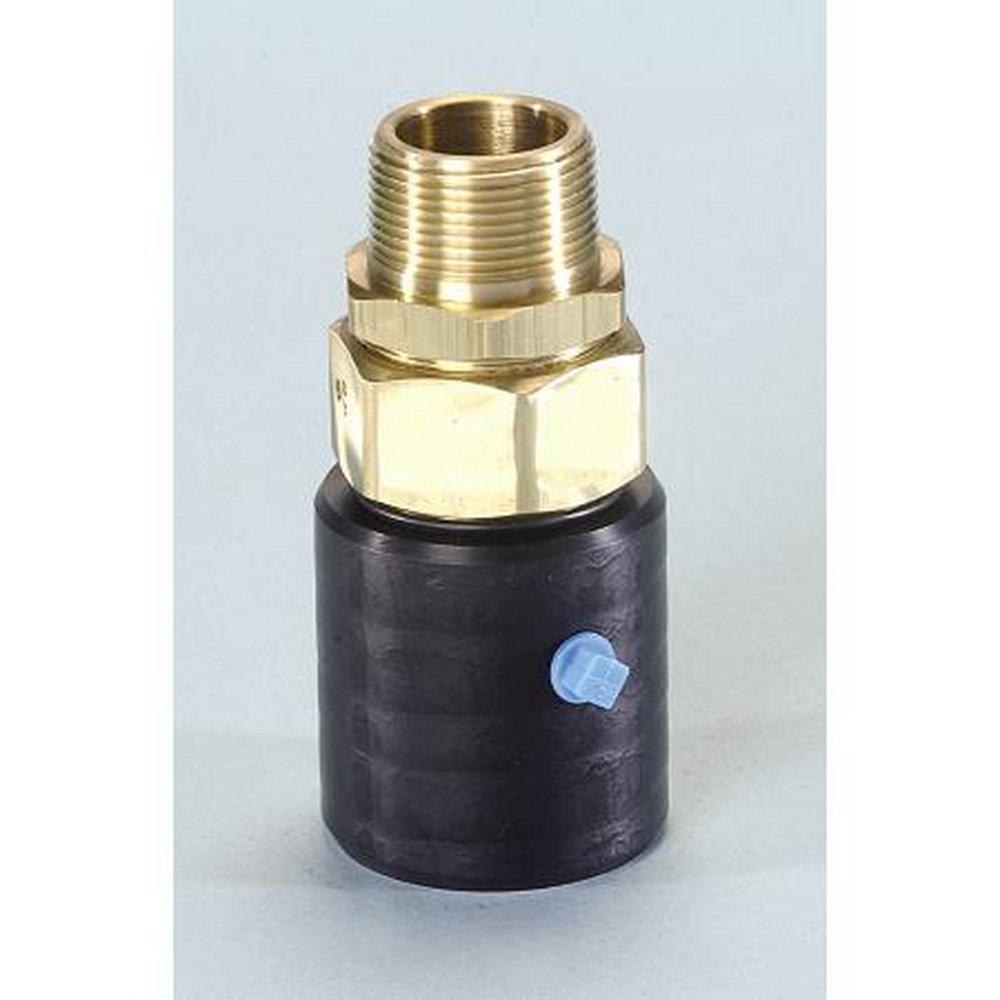

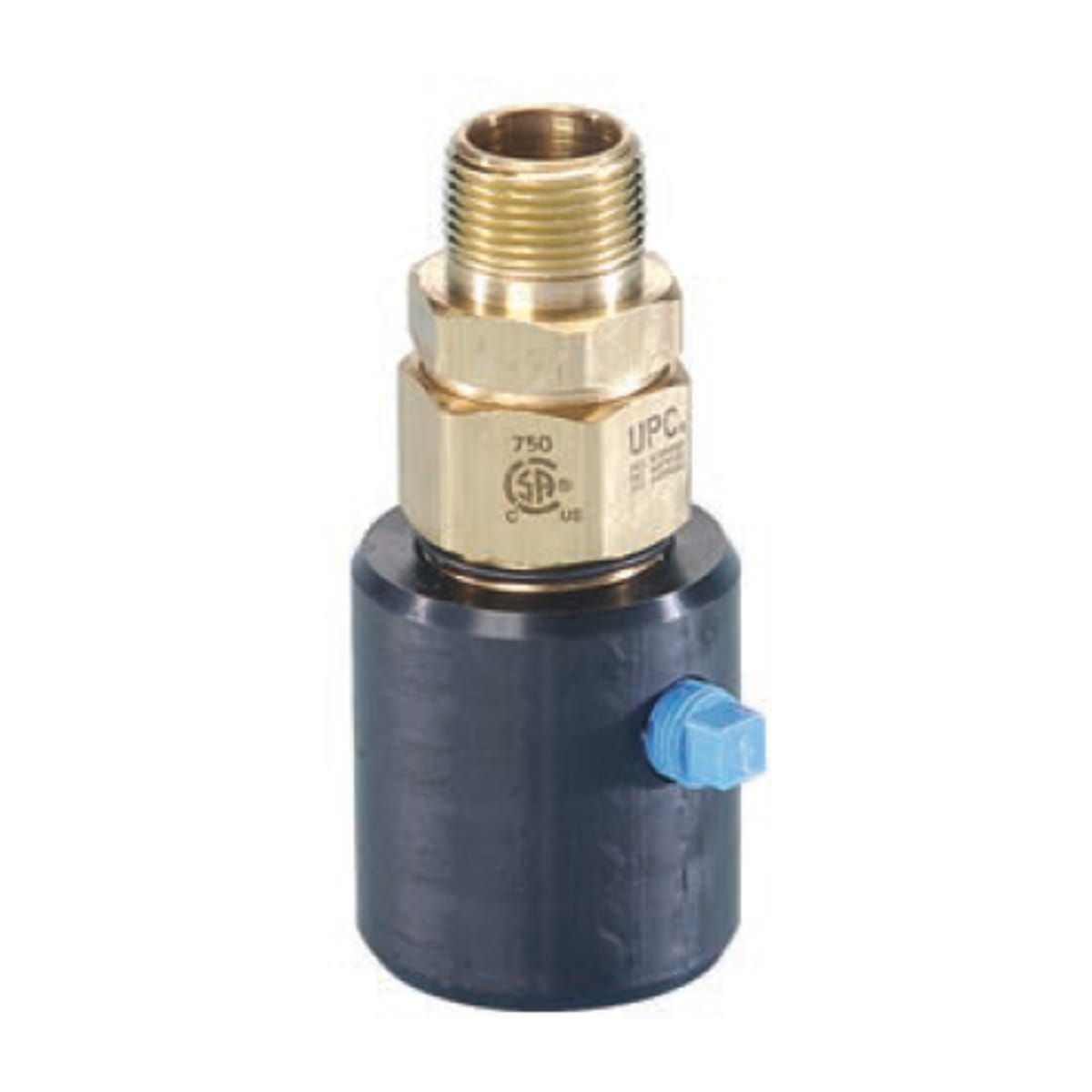

Omegaflex FGP-UGF-1250 TracPipe Underground Vented Male Adapter 1-1/4 in

Product Description

Omegaflex FGP-UGF-1250 is a 1-1/4 in TracPipe underground vented male adapter for TracPipe PS-II flexible gas systems. The adapter uses a yellow brass body with a stainless steel insert and split rings, features AutoFlare containment coupling and 1/4 in NPT vent fittings, and provides MNPT x TracPipe PS-II end connections for pre-sleeved underground or exterior installations. Rated for 25 psi working pressure (40 psig max test) and -20 to 200 °F.

• 1-1/4 in MNPT x TracPipe PS-II male adapter compatible with TracPipe PS-II/CounterStrike systems
• Yellow brass construction with stainless steel insert, 1 in split rings, and AutoFlare plastic containment coupling
• 25 psi working pressure (40 psig max test), temperature range -20 to 200 °F, length approximately 5-1/4 in, 1/4 in NPT vent fitting

Product Highlights

1-1/4 in TracPipe PS-II male adapter; yellow brass with stainless steel insert; AutoFlare and 1/4 in NPT vent; 25 psi, -20 to 200 °F

Product Information

Standard Information

• Brand: OMEGAFLEX
• Manufacturer Part Number: FGP-UGF-1250
• Country of Origin: Domestic (United States)

Technical Specifications

• Brand: Omegaflex
• Manufacturer Part Number: FGP-UGF-1250
• Product Name: TracPipe Underground Vented Male Adapter
• Size: 1-1/4 in
• End Connections: MNPT x TracPipe PS-II/CounterStrike
• Fitting Type: Adapter, Straight
• Material: Yellow brass
• Insert Material: Stainless steel
• Split Ring Size: 1 in
• Length: 5-1/4 in
• Pressure Rating: 25 psi (working)
• Max Test Pressure: 40 psig
• Temperature Rating: -20 to 200 °F
• Vent Fitting: 1/4 in NPT
• Pipe/Tubing Size: 1-1/4 in
• Origin: Domestic
• Applicable Standards: ANSI LC1; ANSI Z223.1; ASME B1.20.1; CSA 6.26; CSA B149.1
