Omegaflex FGP-RFG-500 Adapter 1/2 BRS STR FLG X M TPSFF1/2

Product Description

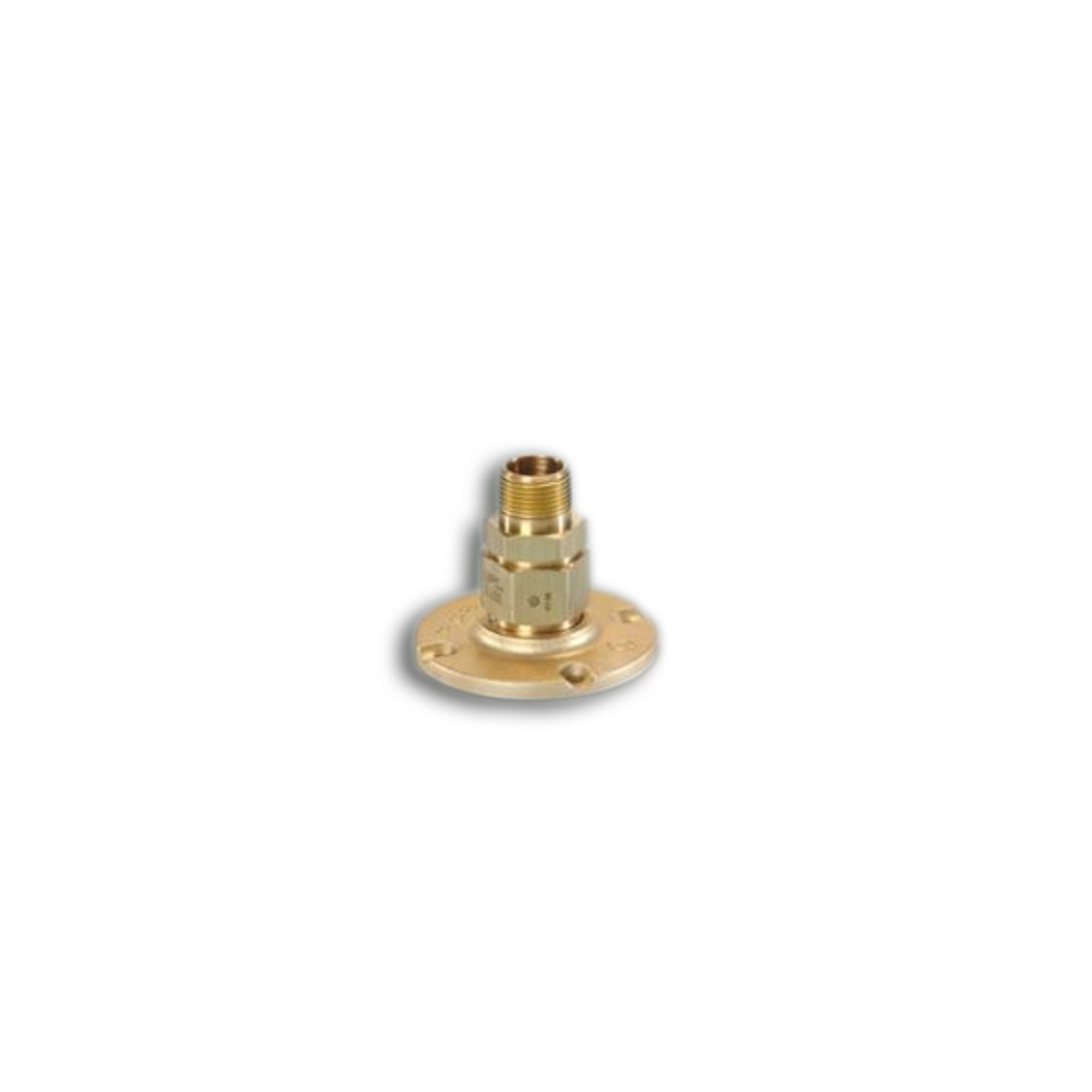

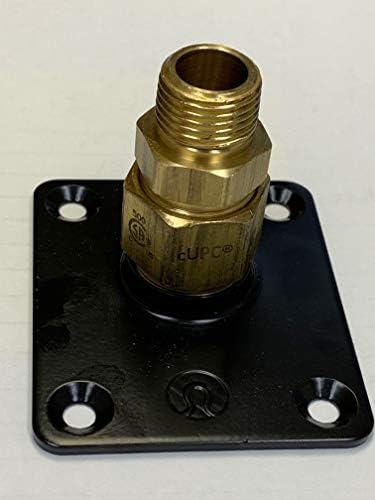

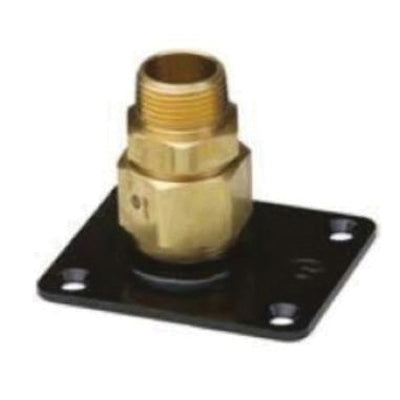

The OMEGAFLEX FGP-RFG-500 is a 1/2 inch Autoflare Steel Flange Fitting. This self-piloting adapter is designed to connect TracPipe CounterStrike to traditional gas fittings and appliances. It is suitable for flexible gas piping systems and can be used in indoor, outdoor, and concealed locations. Featuring a 1/2 inch MNPT connection, it is constructed from steel and has a pressure rating of 25 psig.

• Autoflare self-piloting design for easy connection.
• Suitable for indoor, outdoor, and concealed gas piping applications.
• Connects TracPipe or CounterStrike tubing to NPT threaded gas fittings.

Product Highlights

Self-piloting steel flange fitting for flexible gas piping systems.

Product Information

Standard Information

• Brand: OMEGAFLEX
• Manufacturer Part Number: FGP-RFG-500

Technical Specifications

• Sub Brand: TracPipe AutoFlare
• Type: Self-Piloting
• Nominal Size: 1/2 inch
• Connection Type: MNPT
• Length: 2-3/4 inch
• Material: Steel
• Pressure Rating: 25 psig
• Temperature Rating: -20 to 200 deg F
• Diameter: 1-1/8 inch OD
• Suitable For Use With: Flexible Gas Piping System
• Number of Pieces: 2
• UPC: 614608543779
• Series: CounterStrike
• Certifications: ANSI LC1/CSA 6.26, ANSI Z223.1, ICC Certified, NFPA 54, UPC Certified
