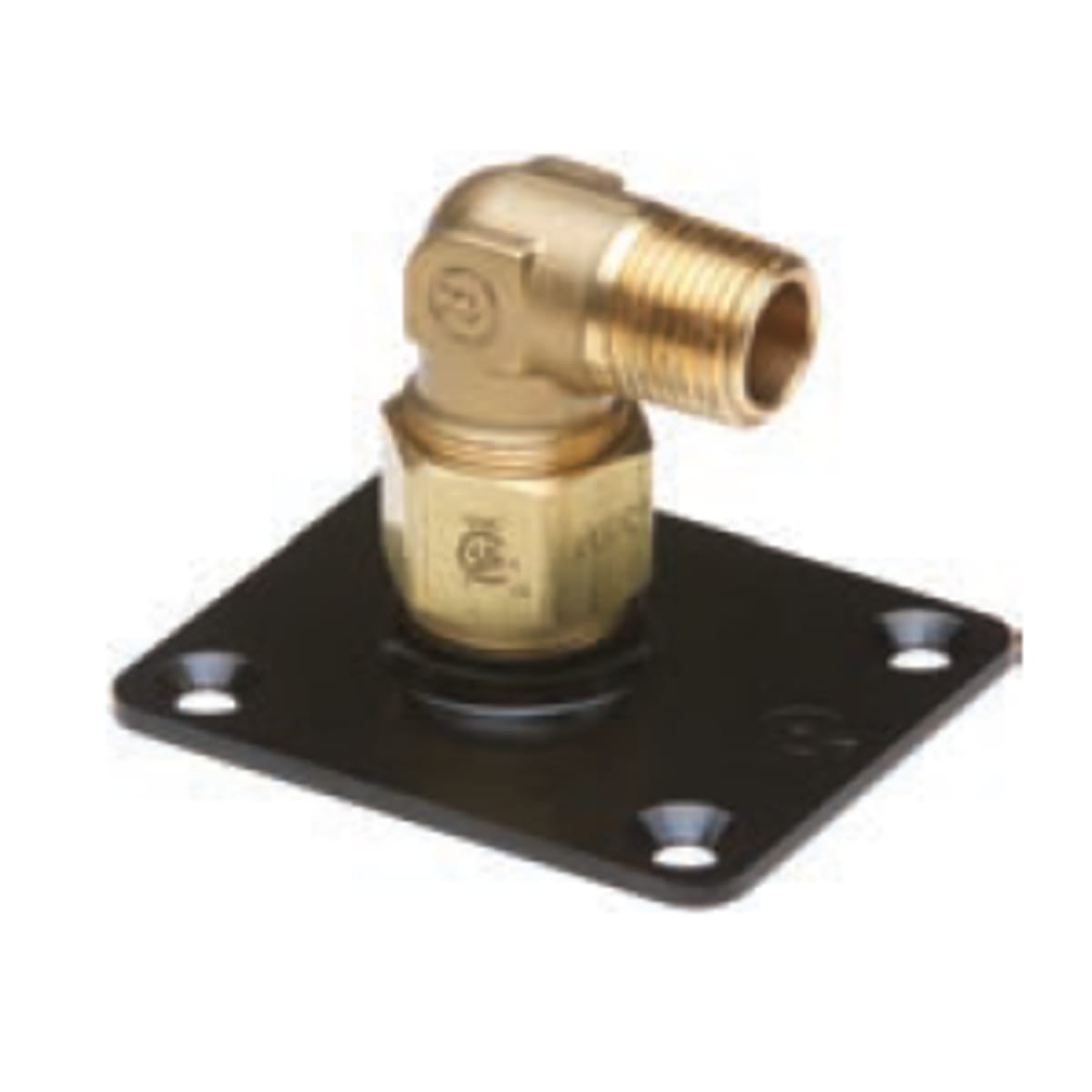

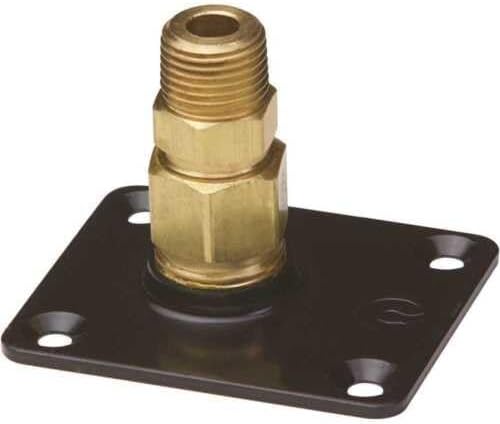

Omegaflex FGP-RFG-375 3/8 inches Tracpipe Flange Adapter

Product Description

The OMEGAFLEX FGP-RFG-375 is a 3/8" TracPipe flange adapter. It is a self-piloting fitting that attaches TracPipe CounterStrike to traditional gas fittings and appliances. Constructed of steel, this fitting has a MNPT connection type and is suitable for indoor, outdoor, and concealed location applications.

• Self-piloting design
• Nominal size of 3/8 inch
• Made of steel

Product Highlights

This flange fitting is designed for use with TracPipe systems and offers a reliable connection without the need for special tools.

Product Information

Standard Information

• Brand: OMEGAFLEX
• Manufacturer Part Number: FGP-RFG-375
• Country of Origin: Domestic

Technical Specifications

• Size: 3/8"
• Type: Flange Adapter
• Sub Brand: TracPipe® AutoFlare®
• Nominal Size: 3/8 inch
• Connection Type: MNPT
• Length: 2-3/4 inch
• Material: Steel
• Pressure Rating: 25 psig
• Temperature Rating: -20 to 200 deg F
• Diameter: 1-1/8 inch OD
• Applications: For use in Indoor, Outdoor and Concealed Location Applications
• Standards/Approvals: ANSI LC1/CSA 6.26, ANSI Z223.1, ICC Certified, NFPA 54, UPC Certified
• End Style: MNPT
