Omegaflex FGP-FST-500 Auto Flare MA Straight Fitting 1/2 (24/CTN)

Product Description

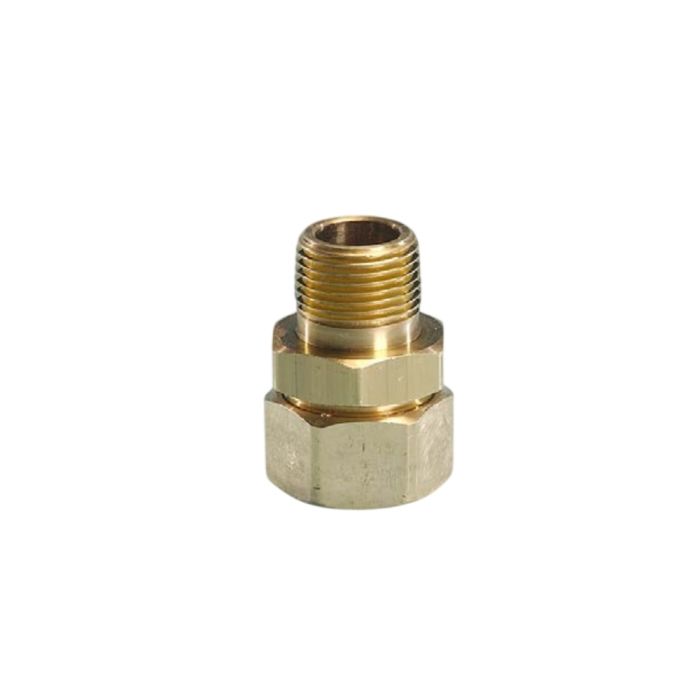

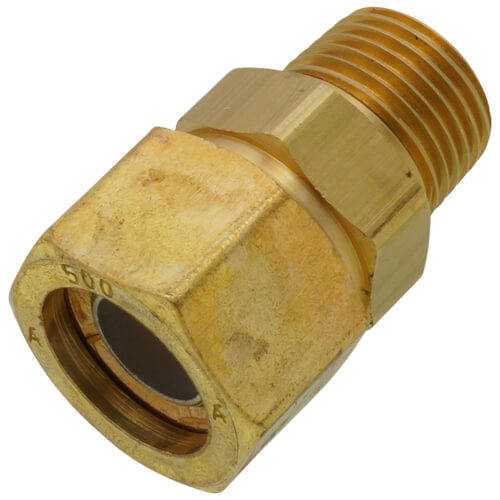

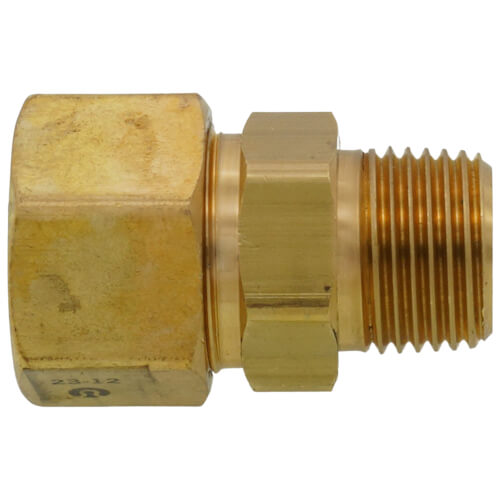

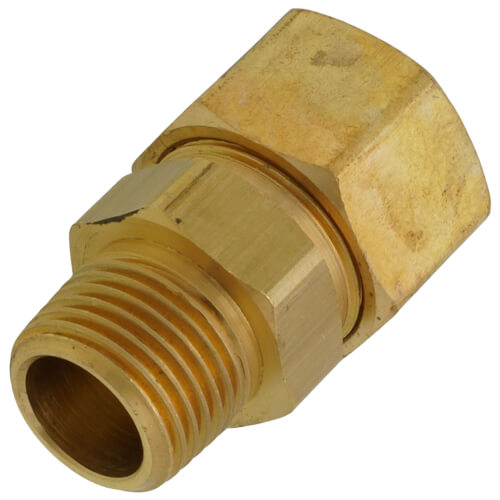

Omegaflex FGP-FST-500 is a 1/2 inch AutoFlare MA straight fitting that provides a self-piloting, self-flaring transition between TracPipe/CounterStrike tubing and 1/2 inch MNPT fittings. The brass fitting includes a stainless steel insert and 1 inch split rings and installs without special tools. It is rated for 25 PSIG and -20 to 200 F for indoor, outdoor, and concealed locations.

• AutoFlare MA to 1/2 inch MNPT straight mechanical fitting; self-piloting and self-flaring
• Yellow brass body with stainless steel insert and 1 inch stainless split rings; installs without special tools
• Operating pressure 25 PSIG; operating temperature range -20 to 200 F

Product Highlights

1/2 inch AutoFlare straight fitting for TracPipe/CounterStrike to 1/2 inch MNPT; brass with stainless steel insert; 25 PSIG rating.

Product Information

Standard Information

• Brand: OMEGAFLEX
• Manufacturer Part Number: FGP-FST-500
• Country of Origin: US

Technical Specifications

• Brand: OMEGAFLEX
• Manufacturer Part Number: FGP-FST-500
• Type: Straight mechanical fitting / male adapter
• Connection Type: AutoFlare to MNPT
• TracPipe/CounterStrike Size: 1/2 inch
• Male NPT Size: 1/2 inch (MNPT)
• Material: Yellow brass body
• Insert Material: Stainless steel insert
• Split Rings: 1 inch stainless steel split rings
• Function: Self-piloting; self-flaring
• Operating Pressure: 25 PSIG
• Operating Temperature Range: -20 to 200 F
• Application: Indoor, outdoor, and concealed locations
• Weight: 0.4 pound
• Pack Quantity: 24 per carton
• Product Title / Model: AutoFlare Straight 1/2 inch
• Product SKU: FGP-FST-500
• Diameter: 1-1/8 inch
• Length: 2 inch
• Standards Approvals: ANSI LC1/CSA 6.26; ANSI Z223.1; CAN/CSA B149.1; IAPMO (UPC) File No. 3682/ES ER-0227; ICC PMG 1046/1058; ICC Codes (IFGC/IRC/IMC/IPC); NFPA 54; NFPA 58
