Omegaflex FGP-CS-750-250 Counterstrike Trac Pipe 3/4 (250 ft)

Product Description

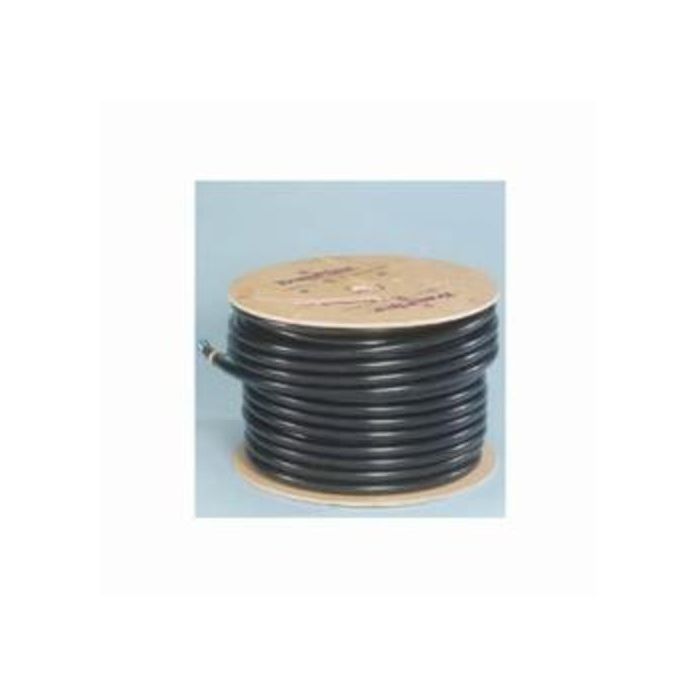

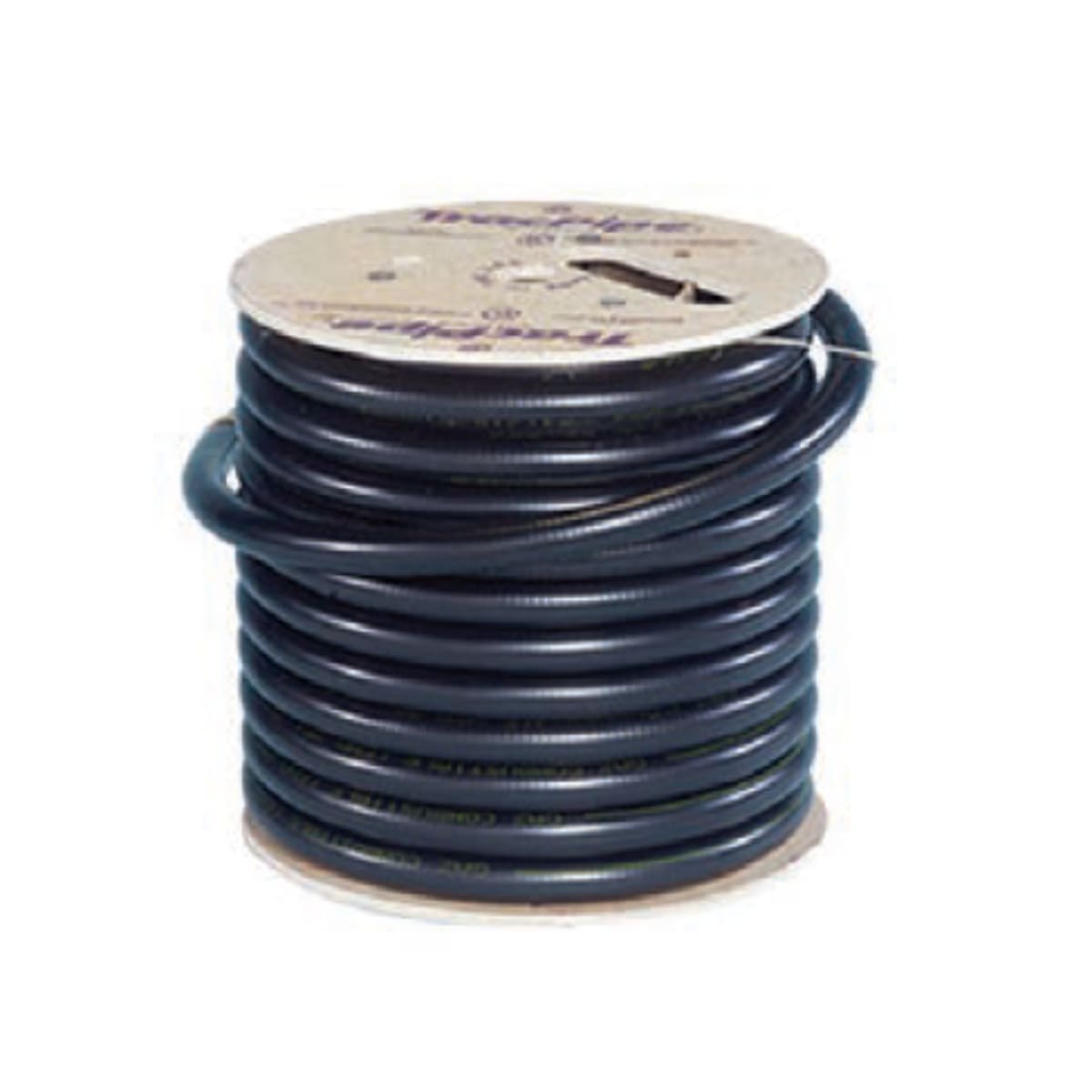

Omegaflex FGP-CS-750-250 is a CounterStrike corrugated stainless steel tubing (CSST) supplied on a 250 ft reel with a nominal 3/4 in size. The product combines 300 series stainless steel tubing and a conductive, UV/ozone resistant polyethylene jacket to provide improved resistance to electrical arcing and suitability for gas piping installations. It is compatible with AutoSnap fittings and carries listings for fire and building code standards.

• 3/4 in nominal inside diameter corrugated stainless steel tubing on a 250 ft reel; inside diameter 0.82 in, outside diameter 1.14 in, wall thickness 0.01 in.
• 300 series stainless steel tube with conductive, UV/ozone resistant polyethylene flame-retardant jacket; designed to disperse electrical energy and improve lightning/seismic performance.
• Rated for -20 to 200 deg F and 25 PSIG working pressure; meets ANSI LC1/CSA 6.26, ANSI Z223.1, ASTM E84 and related ICC/IAPMO/UL standards; for use with AutoSnap fittings.

Product Highlights

3/4 in x 250 ft corrugated stainless steel CSST with conductive flame-retardant jacket; rated -20 to 200 deg F and 25 PSIG; UL and ICC/ANSI/CSA listed; for use with AutoSnap fittings.

Product Information

Standard Information

• Brand: OMEGAFLEX
• Manufacturer Part Number: FGP-CS-750-250
• Country of Origin: Domestic

Technical Specifications

• Brand: OMEGAFLEX
• Manufacturer Part Number: FGP-CS-750-250
• Product Type: CounterStrike CSST TracPipe
• Series: CounterStrike
• Length: 250 ft
• Nominal Size: 3/4 in
• Inside Diameter: 0.82 in
• Outside Diameter: 1.14 in
• Wall Thickness: 0.01 in
• Material: 300 series stainless steel
• Jacket: Conductive UV/ozone resistant polyethylene, flame retardant
• Working Pressure: 25 PSIG
• Temperature Rating: -20 to 200 deg F
• Standards/Certifications: ANSI LC1/CSA 6.26; ANSI Z223.1; ASTM E84; ICC (IFGC, IPC); ICC LC 1024; ICC PMG 1058; IAPMO ES ER-0227; UL 723; UL Listed; Factory Mutual listings (seismic)
• Compatible Fittings: AutoSnap fittings
• Country of Origin: USA
