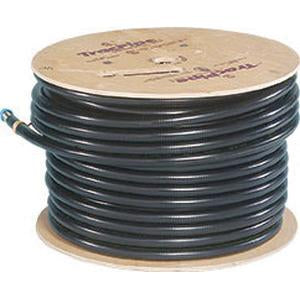

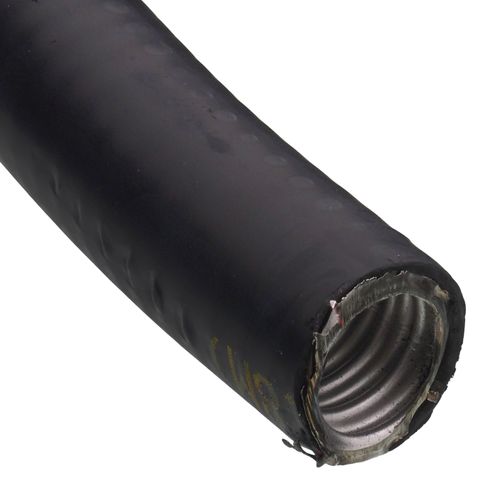

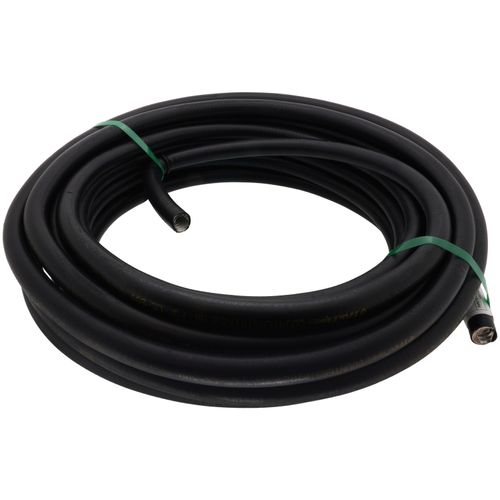

Omegaflex FGP-CS-500-50 TracPipe CounterStrike CSST flexible gas line 1/2 in x 50 ft

Product Description

Omegaflex FGP-CS-500-50 is a TracPipe CounterStrike CSST flexible gas line sized 1/2 in by 50 ft, constructed from 300 series stainless steel with a proprietary energy-dissipating jacket. It provides enhanced resistance to electrical arcing and improved crush resistance, is non-annealed for easier cutting, and is compatible with AutoFlare/AutoSnap fittings for residential and commercial gas distribution. Rated to 125 PSI, it lays straighter and pulls easier.

• 300 series stainless steel construction with proprietary energy-dissipating jacket
• Nominal 1/2 in tube, 50 ft length; rated to 125 PSI
• Compatible with AutoFlare/AutoSnap fittings; non-annealed for greater crush resistance; up to 400x resistance to electrical arcing compared to yellow CSST

Product Highlights

CounterStrike CSST, 1/2 in x 50 ft, 300 series stainless steel, UL/FM listed

Product Information

Standard Information

• Brand: OMEGAFLEX
• Manufacturer Part Number: FGP-CS-500-50
• Country of Origin: USA

Technical Specifications

• Brand: Omegaflex
• Manufacturer Part Number: FGP-CS-500-50
• Product Type: CounterStrike CSST flexible gas tubing
• Series: CounterStrike 300
• Material: 300 series stainless steel
• Construction: Semi-rigid corrugated stainless steel, non-annealed
• Jacket: Proprietary polymer energy-dissipating conductive jacket
• Tube Size (Nominal): 1/2 in
• Inner Diameter: 0.597 in
• Outside Diameter: 0.888 in
• Length: 50 ft
• Pressure Rating: 125 PSI
• Maximum Pressure (PSI): 125
• Compatible Fittings: AutoFlare / AutoSnap fittings
• Approvals: UL listed; Factory Mutual (FM) seismic resistance; Listed to ANSI LC 1-2005
• ASTM Compliance: ASTM E84 (flame spread not to exceed 25; smoke density not to exceed 50)
• Country of Origin: USA
• Features: Lays straighter and pulls easier; increased crush resistance; higher flow ratings than competitive CSST; up to 400x resistance to damaging electrical arcing compared to yellow CSST
