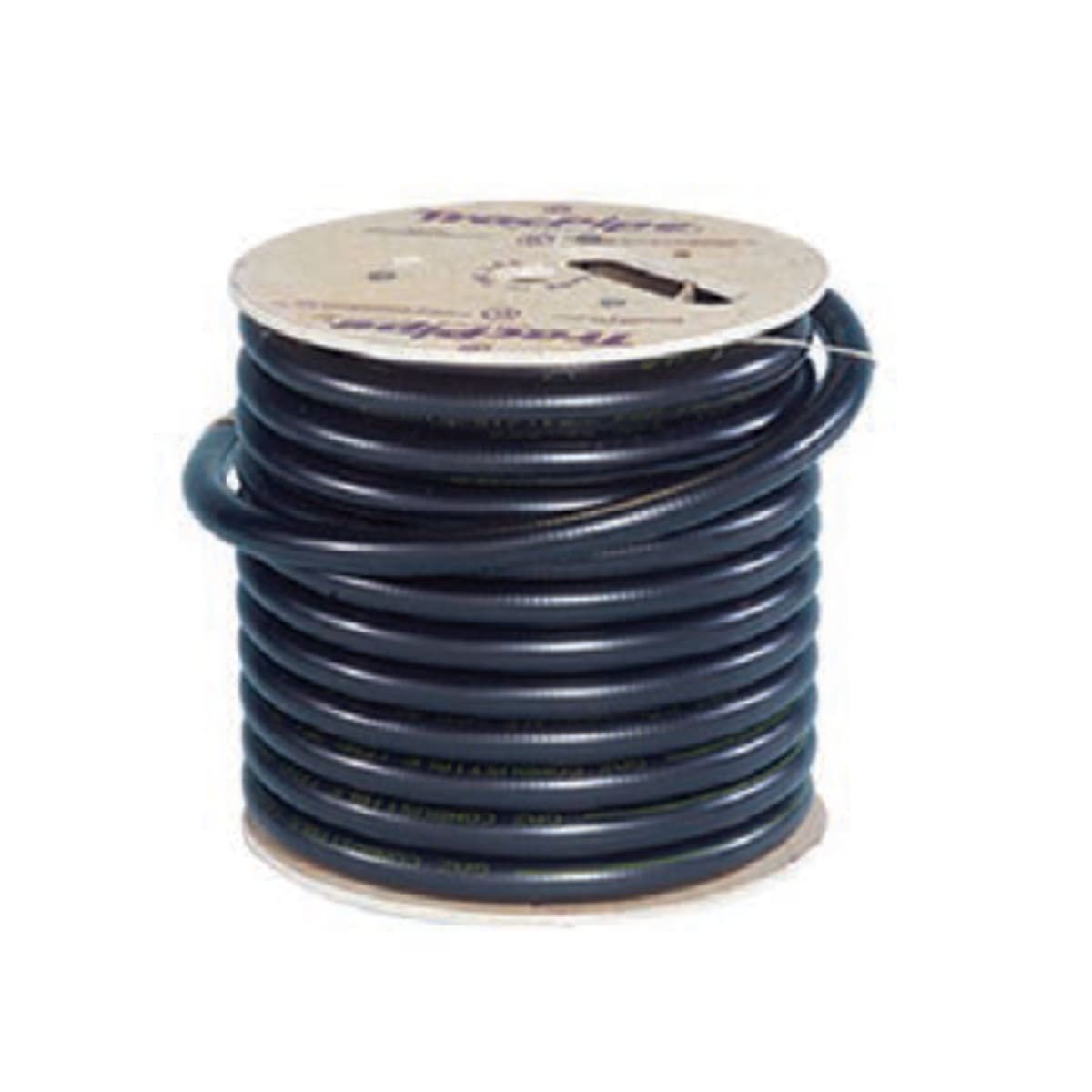

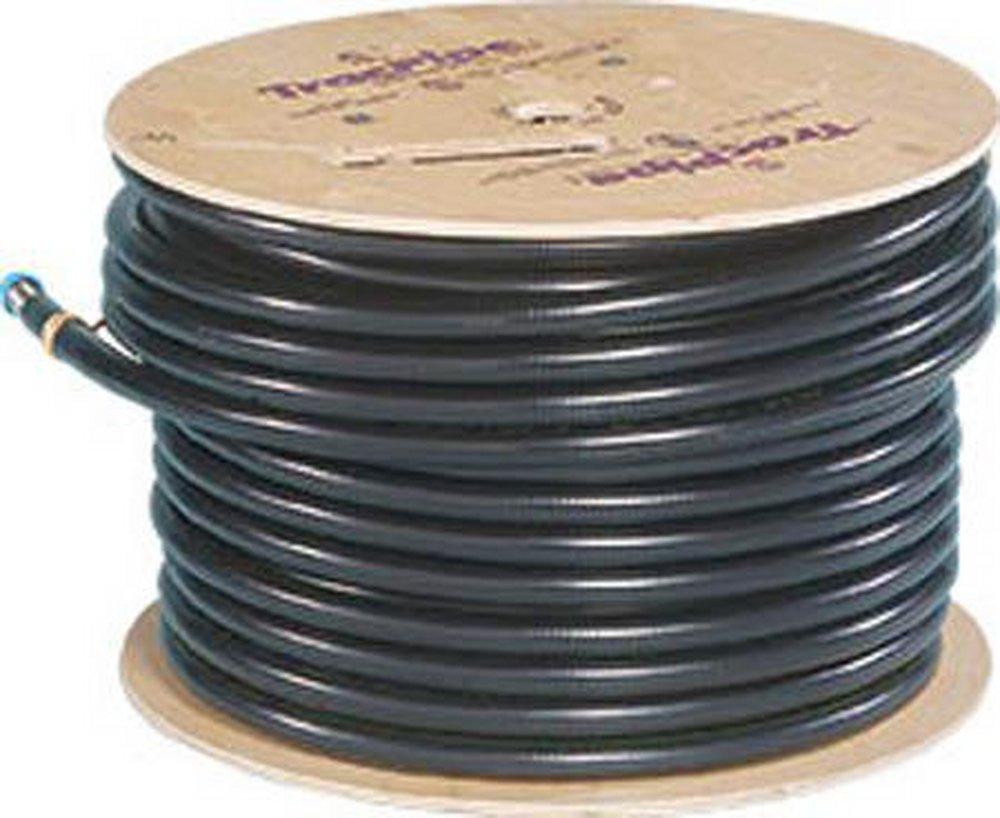

Omegaflex FGP-CS-100-100 CounterStrike 1 in x 100 ft Reel

Product Description

Omegaflex FGP-CS-100-100 is CounterStrike flexible stainless steel gas tubing supplied as a 1 inch nominal diameter by 100 foot reel for gas piping applications. Constructed of 300 series stainless steel with a proprietary conductive polymer jacket, it has a 0.01 in wall thickness, 1.06 in inside diameter, 1.415 in outside diameter, 25 psi working pressure and a -20 to 200 deg F temperature rating. Compatible with AutoSnap fittings and meets multiple industry standards.

• Nominal size 1 in, length 100 ft per reel; inside diameter 1.06 in, outside diameter 1.415 in, wall thickness 0.01 in
• Material: 300 stainless steel with proprietary conductive polymer jacket; working pressure 25 psi; temperature range -20 to 200 deg F
• Meets ANSI LC1/CSA 6.26, ANSI Z223.1, ASTM E84, IAPMO ES ER-0227, UL 723; uses AutoSnap fittings and sold per reel

Product Highlights

CounterStrike CSST flexible gas tubing on a 100 ft reel with conductive jacket, AutoSnap fitting compatibility, and multiple industry approvals.

Product Information

Standard Information

• Brand: OMEGAFLEX
• Manufacturer Part Number: FGP-CS-100-100
• Country of Origin: US

Technical Specifications

• Brand: Omegaflex
• Manufacturer Part Number: FGP-CS-100-100
• Product Line: CounterStrike
• Model: CounterStrike CSST
• Product Type: Flexible gas tubing (CSST)
• Nominal Size: 1 in
• Inside Diameter: 1.06 in
• Outside Diameter: 1.415 in
• Length: 100 ft
• Form: Reel
• Material: 300 stainless steel
• Jacket: Proprietary conductive polymer jacket
• End Style: CSST
• Working Pressure: 25 psi
• Temperature Rating: -20 to 200 deg F
• Application: Natural gas and liquified petroleum (propane) gas applications; commercial, industrial, residential
• Fittings Compatibility: AutoSnap fittings
• Standards Approvals: ANSI LC1/CSA 6.26; ANSI Z223.1; ASTM E84; ICC codes; IAPMO ES ER-0227; UL 723
• Package Quantity: 1 (per reel)
• Country Of Origin: US
• UPC: 076335152097
