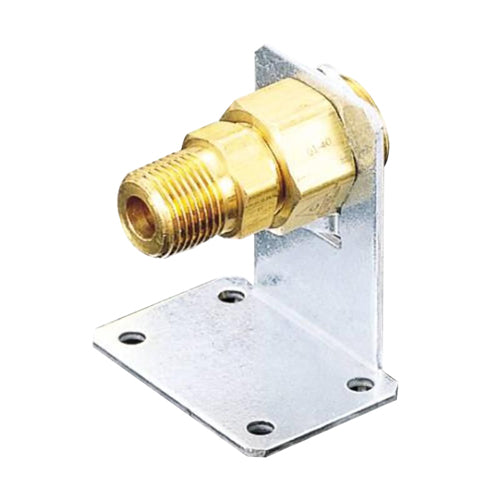

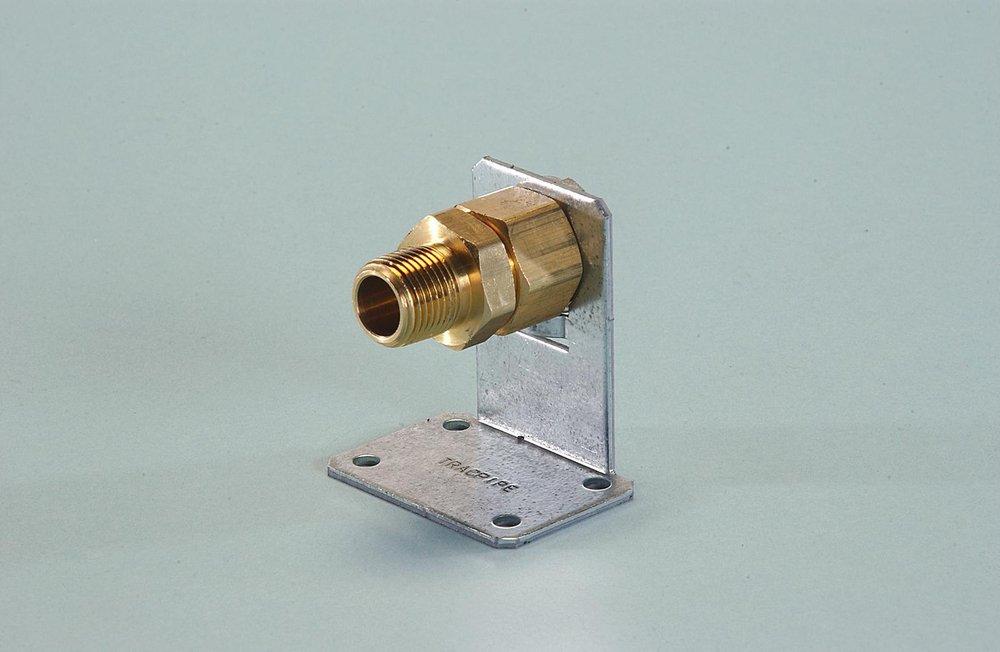

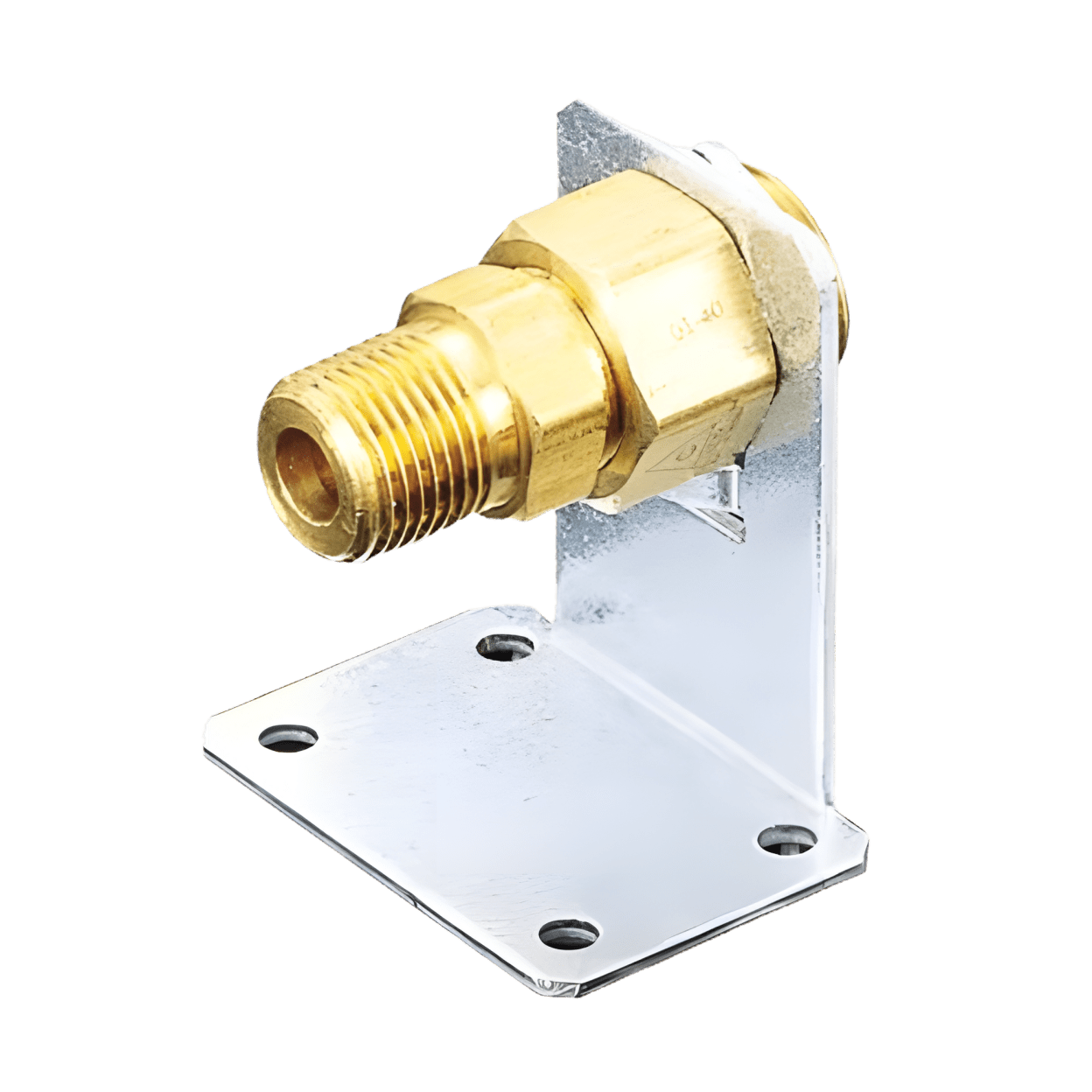

Omega Flex FGPKVB500 1/2 in. NPT Key Valve Bracket

Product Description

The Omega Flex FGPKVB500 is a key valve bracket designed for use with TracPipe and CounterStrike systems. This product helps securely mount a fireplace key valve. It features metal-to-metal sealing and self-flaring technology for easy installation.

• Available in a nominal size of 1/2 inches.
• Constructed from high-quality galvanized steel for durability.
• Packaged with eighteen units per box for bulk procurement.

Product Highlights

This key valve bracket connects efficiently while providing a reliable seal in gas applications. It is suitable for both indoor and outdoor use.

Product Information

Standard Information

• Brand: Omega Flex
• MPN: FGPKVB500

Technical Specifications

• Nominal Size: 1/2 inches
• End Style: TracPipe PS-II/CounterStrike
• Operating Pressure: 25 psig
• Max Operating Pressure: 125 psig
• Operating Temperature: -20 to 200 degrees F
• Material: Galvanized steel with stainless steel insert
• Installation Requirements: Must be installed according to the TracPipe design guide
