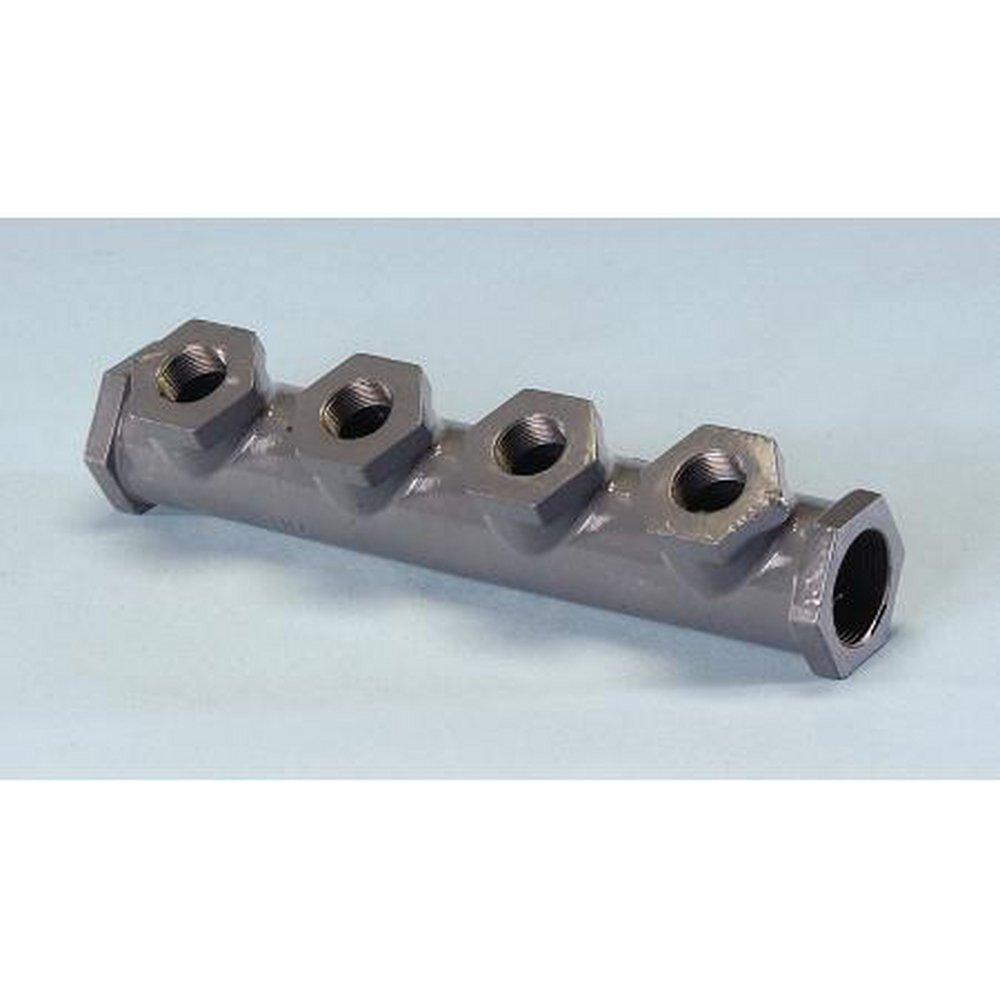

Omega Flex FGP-MI-PC-1X 4 x 4 x 3/4 x 3/4 in. FIP Inlet Coated Manifold

Product Description

The Omega Flex FGP-MI-PC-1X is a coated manifold designed to facilitate parallel installations in gas systems. This manifold features four outlets, each three-quarters of an inch in size, allowing multiple home-run connections to each appliance. It can be mounted using brackets or installed within gas load centers. The manifold works seamlessly with the TracPipe system.

• Coated malleable iron construction
• Supports multiple outlet connections
• Rated for maximum pressure of twenty-five psig

Product Highlights

This large coated manifold is ideal for HVAC and plumbing applications where parallel piping installations are necessary. It meets various safety standards and housing codes, ensuring reliable performance in residential settings.

Product Information

Standard Information

• Brand: Omega Flex
• Part Number: FGPMIPC1X

Technical Specifications

• Dimensions: 2 inches OD x 11-1/2 inches L
• Material: Cast Iron
• Inlet Size: 1 to 1-1/4 inches
• Outlet Size: 3/4 inches
• Pressure Rating: 25 psig
• Temperature Rating: -20 to 200 degrees Fahrenheit
• Number of Outlets: 4
• Type: Large Coated
