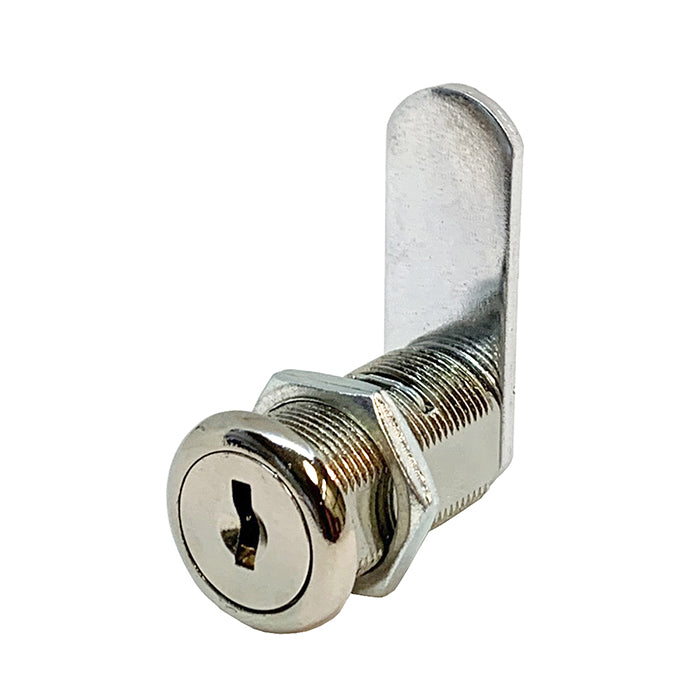

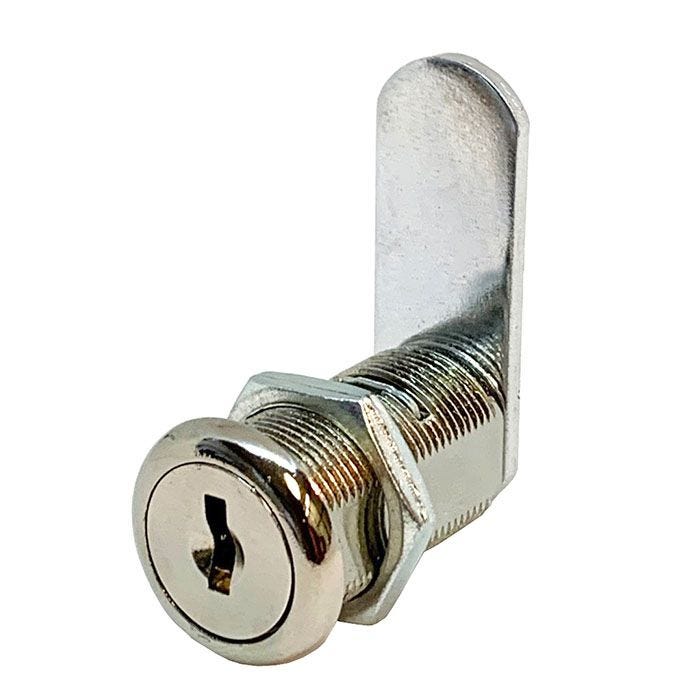

OLYMPUS 961-14A-C346A Disc Tumbler Cam Lock 2 Inch

Product Description

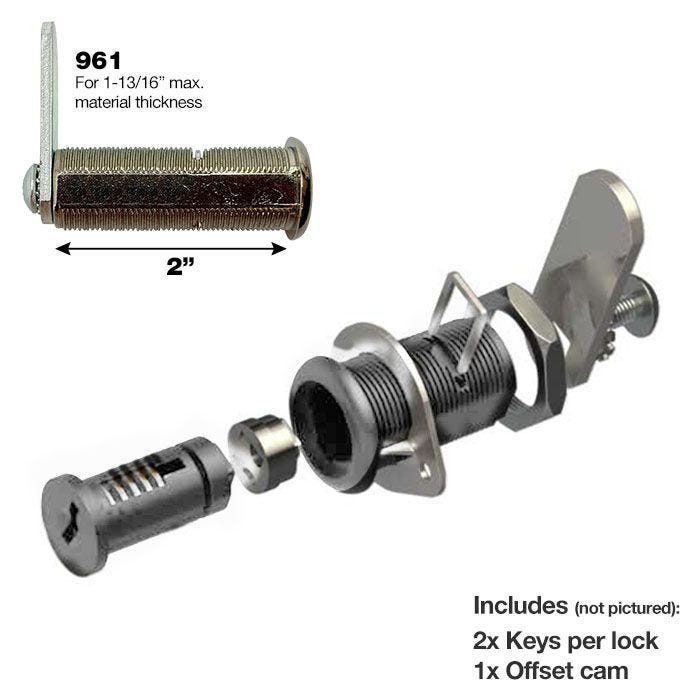

The OLYMPUS 961-14A-C346A is a disc tumbler cam lock designed for securing drawers and doors. This reliable lock has been engineered for vigorous use, boasting over twenty-five years of manufacturing expertise. It includes a two-inch cylinder length and works for material thickness of one and thirteen-sixteenths inches.

• Cylinder and body are assembled for quick installation.
• Meets ANSI/BHMA Grade 2 cycle test: 20,000 cycles including key insertion and removal.
• Key can be removed in both locked and unlocked positions.

Product Highlights

This OLYMPUS cam lock provides a solid locking solution for various applications, ensuring convenience and security.

Product Information

Standard Information

• Manufacturer: OLYMPUS Lock
• Product Type: Cabinet Lock

Technical Specifications

• MPN: 961-14A-C346A
• Cylinder Length: 2 inches
• Material Thickness: 1-13/16 inches
• Key Number: C346A
• Lock Type: Cam Lock
• Mounting Type: Flush or Lipped/Overlay
• Rotation: 90 degrees
• Mounting Hole Size: 3/4 inch in wood, 5/8 inch x 3/4 inch in metal
• Material: Die-Cast Zinc
