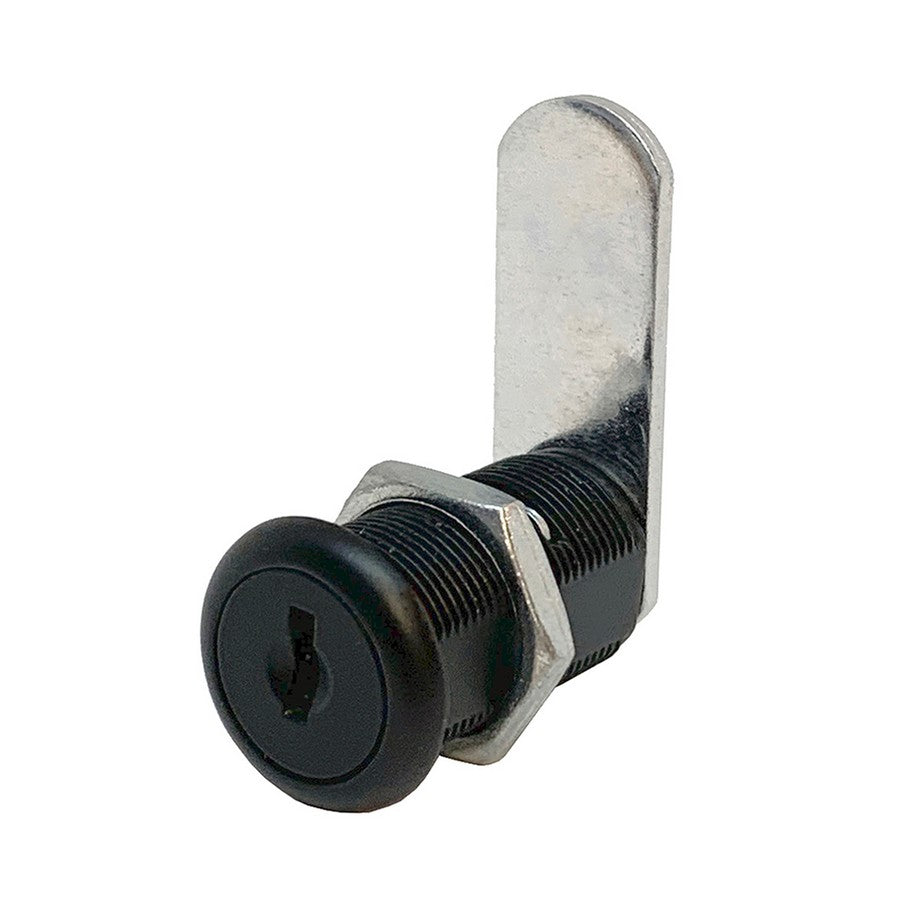

Olympus 960-US19-C346A Lock 5-Disc Tumbler Cam Lock Cascade Series 1-3/4inch

Product Description

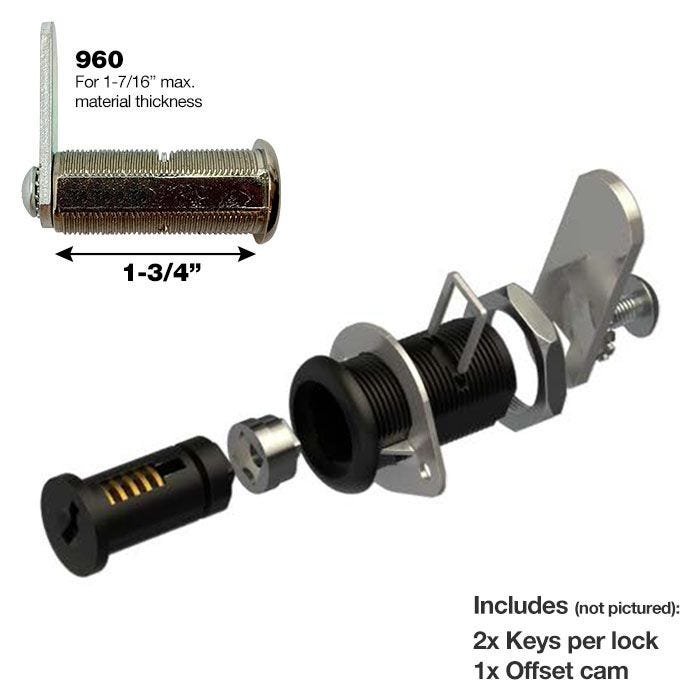

The Olympus 960-US19-C346A lock is part of the Cascade Series and operates as a reliable cam key lock. The lock is designed to be compatible with C8053 and similar disc tumbler locks. It has a cylinder length of 1-3/4 inches, making it suitable for materials with a maximum thickness of 1-7/16 inches. The mounting requires a standard hole of 3/4 inches in diameter.

• Compatible with C8053 and similar disc tumbler locks.
• Features a robust 5-Disc Tumbler Key System for security.
• Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles.

Product Highlights

This cam lock is ideal for securing cabinets, lockers, and drawers. It allows for a 90-degree cam rotation and can lock in both positions, enhancing usability during operation.

Product Information

Standard Information

• Brand: Olympus
• Manufacturer: Olympus Lock

Technical Specifications

• Lock Type: Key Lock
• Material: Die-Cast Zinc
• Style: Key #C415A
• Finish: Matte Black (US19)
• Application: Doors and Drawers
• Security Certification: ANSI/BHMA Grade 2
• Keying: C346
• Mounting Type: Flush or Lipped/Overlay
