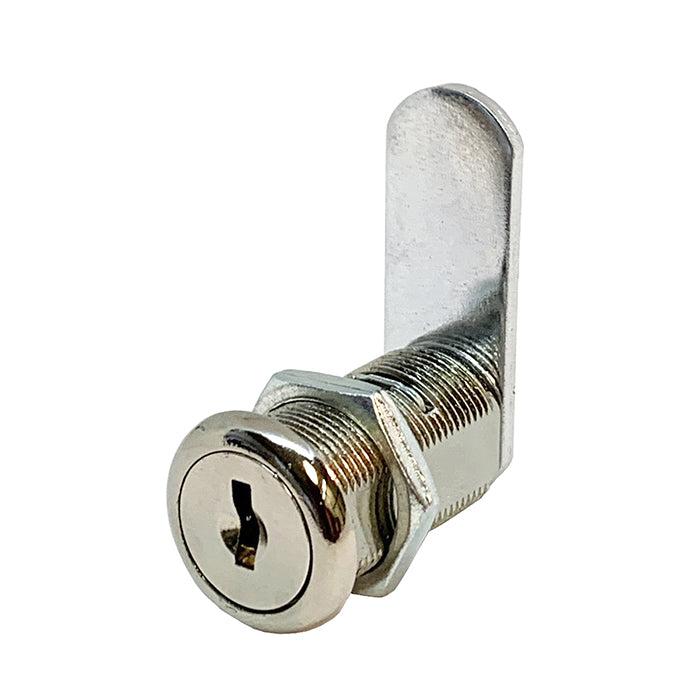

OLYMPUS 960-14A-C413A Cylinder Disc Tumbler Cam Lock 1-3/4 inch

Product Description

The OLYMPUS 960-14A-C413A is a cylinder disc tumbler cam lock designed for doors and drawers. It has a cylinder length of one and three quarter inches. This lock is ideal for lipped or flush mounting installations. It meets ANSI/BHMA Grade 2 standards, having successfully undergone a cycle test with twenty thousand cycles.

• Spur washer with eyelet to prevent lock rotation
• Revolutionary cylinder system for easy swapping
• Key removable in both locked and unlocked positions

Product Highlights

This cam lock offers flexible security options, available in keyed different and master keyed configurations, making it suitable for various applications.

Product Information

Standard Information

• Manufacturer: OLYMPUS LOCK
• Product Type: Cam Lock

Technical Specifications

• MPN: 960-14A-C413A
• Product Finish: Bright Nickel
• Cylinder Length: One and three quarter inches
• Max Material Thickness: One and seven sixteenths inches
• Keying: Master keyed and keyed different
• Manufacturer Series: 960
• Application: Suitable for doors and drawers
• Tumbler Type: Disc
• Mounting Type: Flush or lipped/overlay
• Rotation: Ninety degrees
