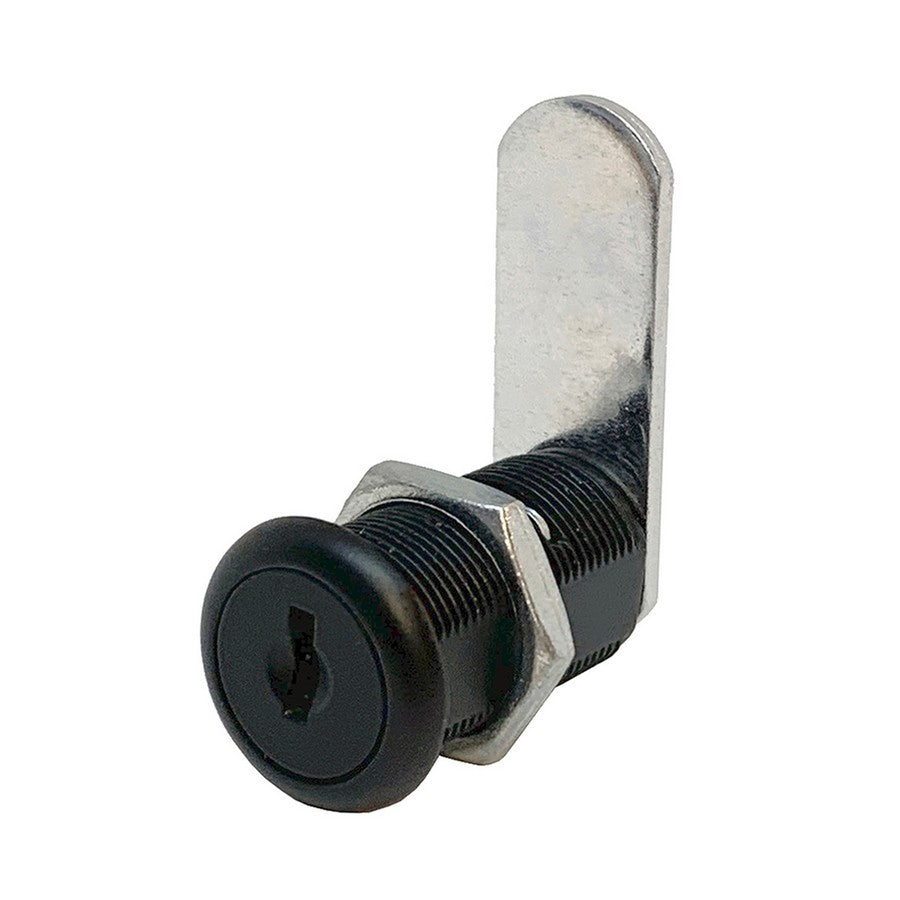

OLYMPUS 953-US19-C390A Cylinder Disc Tumbler Cam Lock 1-3/16inch

Product Description

The OLYMPUS 953-US19-C390A is a cam lock designed for securing doors and drawers. It features a cylinder length of one and three-sixteenths inches and can accommodate material thicknesses up to seven-eighths inches. This lock has a rotation of ninety degrees and includes all necessary components for installation.

• Includes keys, cams, and mounting hardware.
• Key can be removed when locked or unlocked.
• Cylinder extender allows use with different size cam lock bodies.

Product Highlights

This cam lock is suitable for a variety of applications, including cabinets and furniture.

Product Information

Standard Information

• Brand: OLYMPUS LOCK
• Product Type: Cam Lock

Technical Specifications

• MPN: 953-US19-C390A
• Manufacturer's Part: 953-US19-C390A
• Max Material Thickness: 7/8 inches
• Keying: C390
• Tumbler Type: Disc
• Security Certification: ANSI/BHMA Grade 2 (E07262)
• Material: Die-Cast Zinc

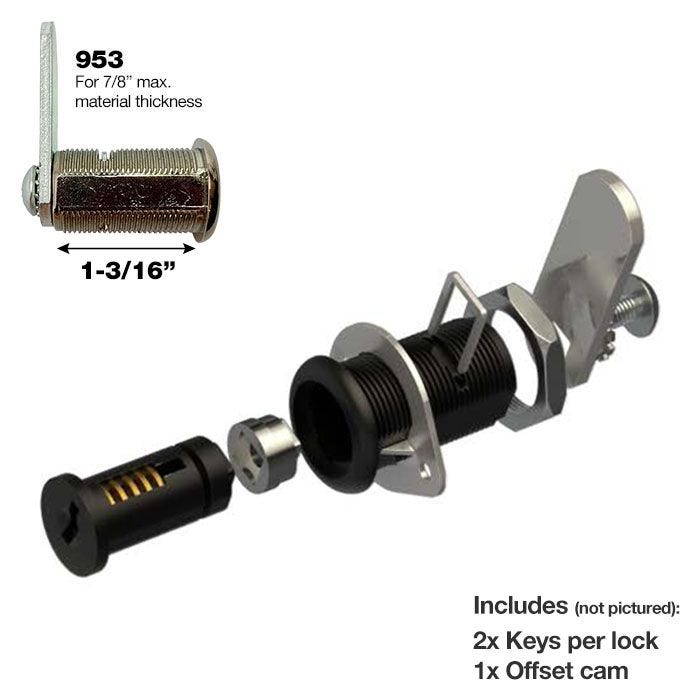

• Includes: (1) Cylinder with lock body assembly, (2) Keys, (1) 1-1/2 inch straight cam, (1) 1-1/8 inch long cam with offset, (1) Eyelet spur washer, (1) Fixing nut, (1) Trim ring, (1) Cam screw with star washer, (1) Retainer staple, (1) Plug extender
