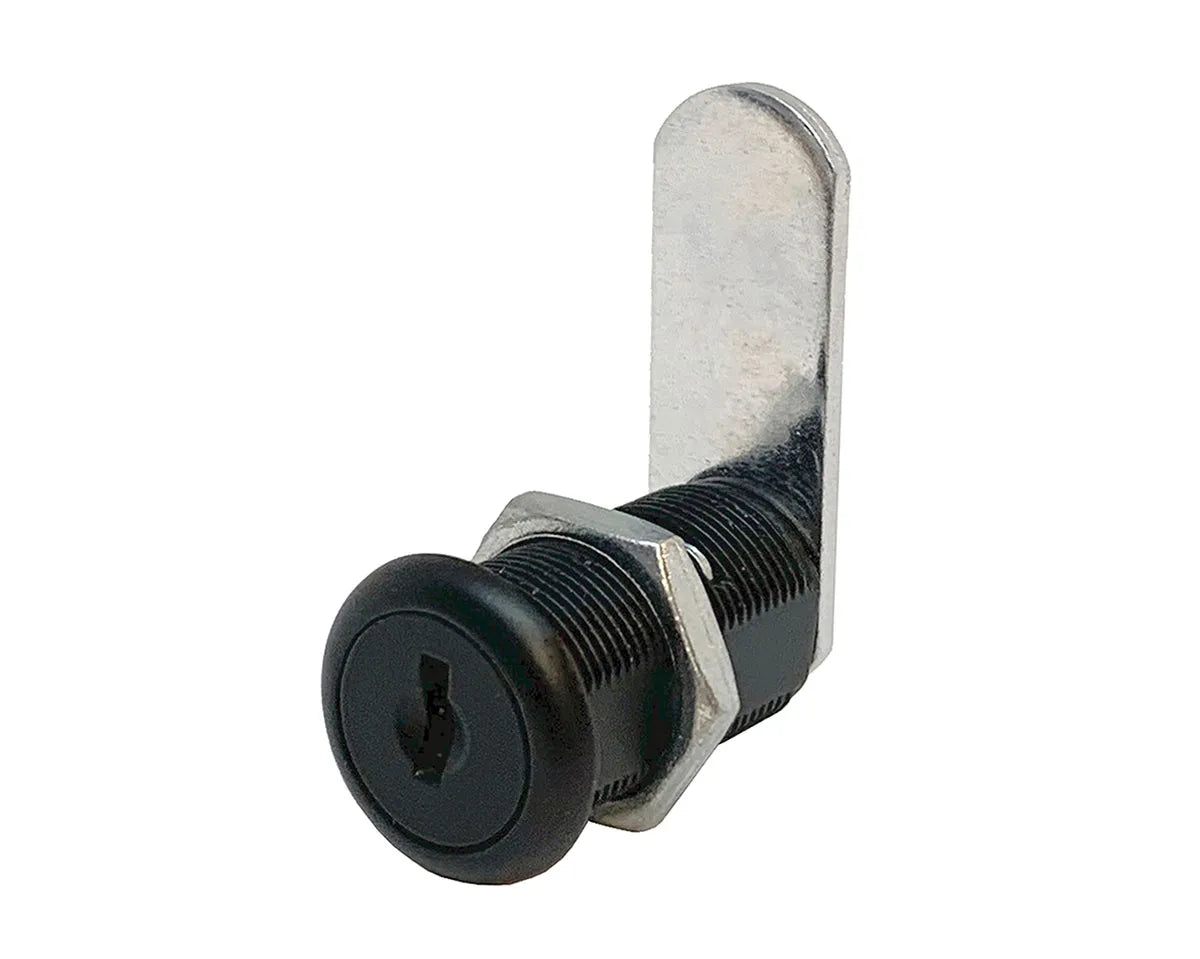

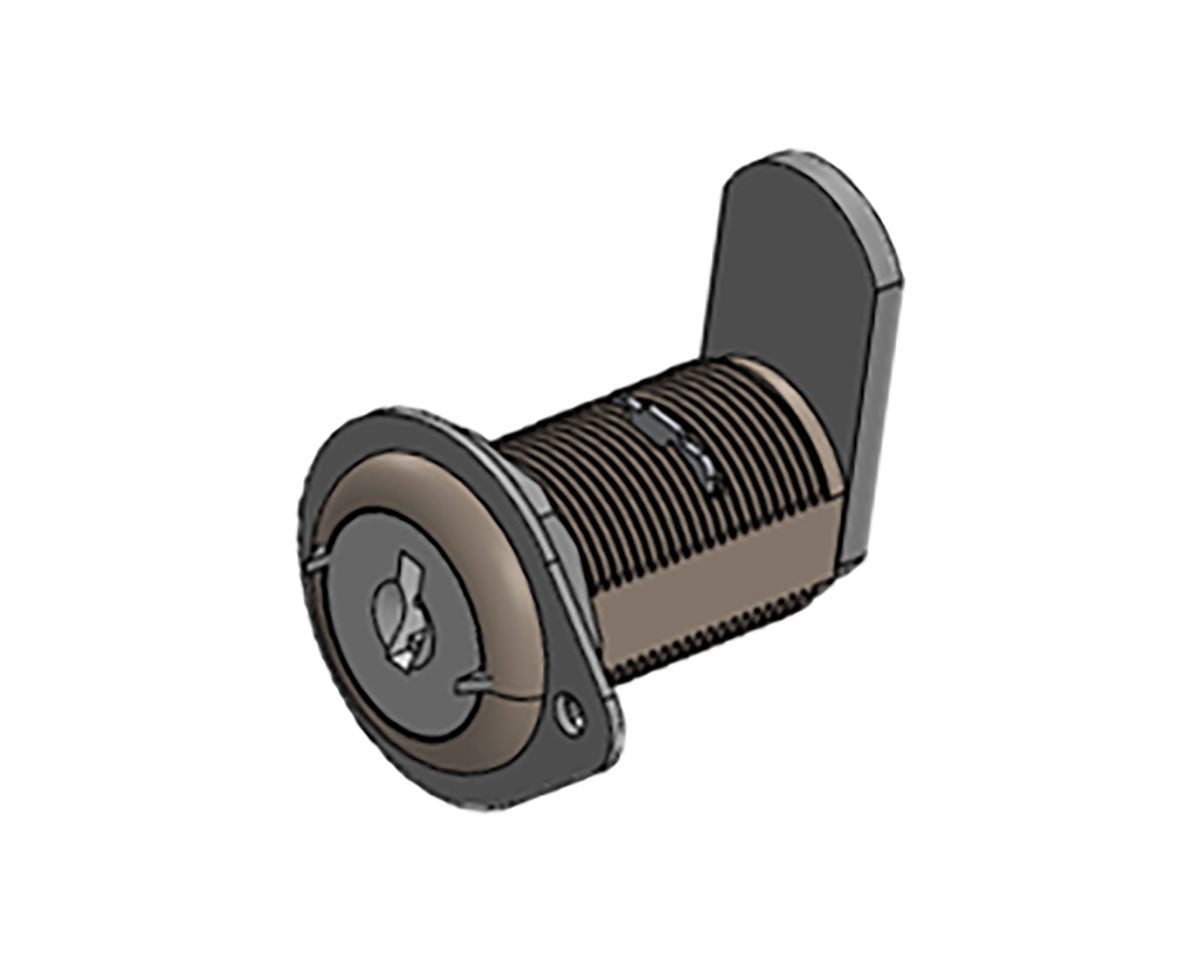

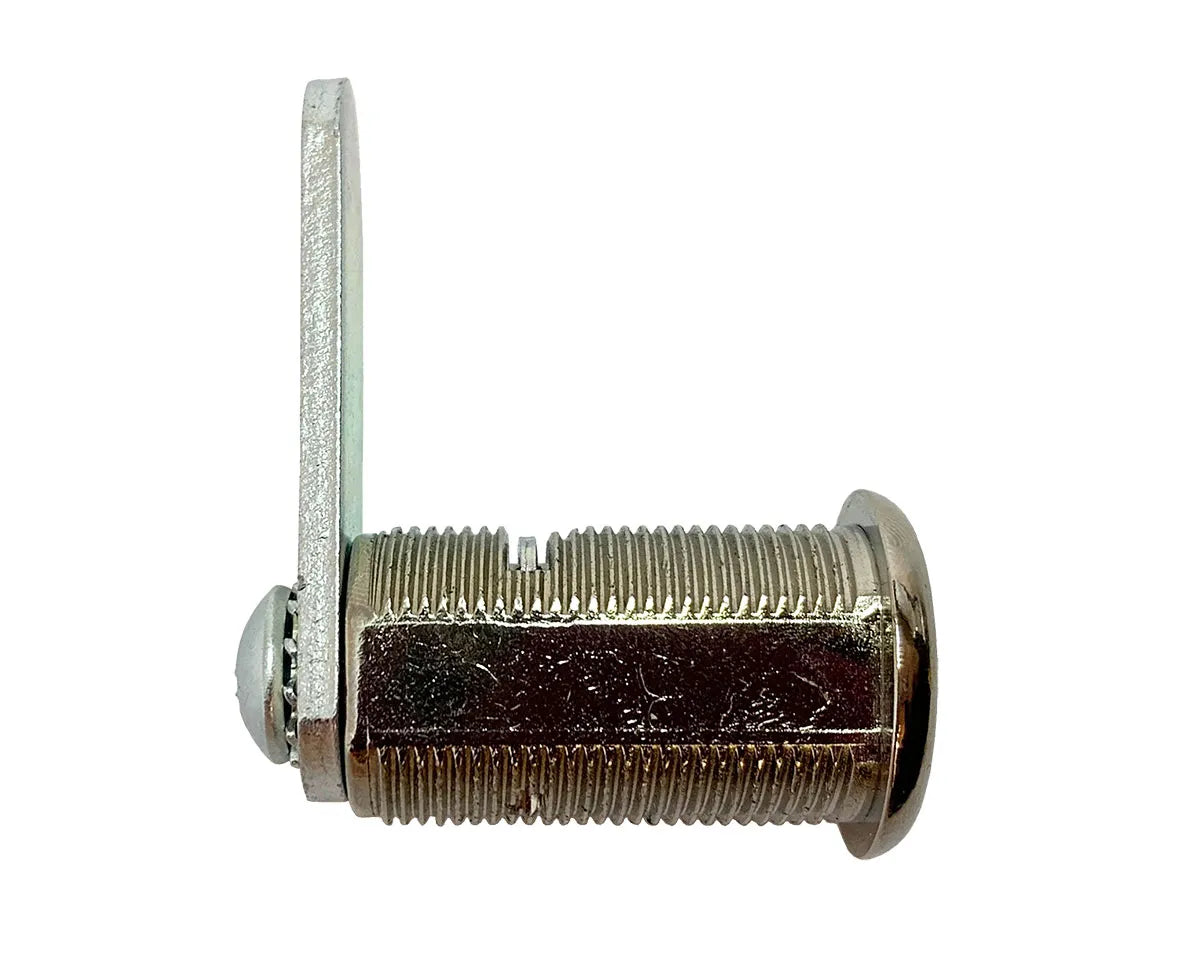

Olympus 953-US19-C346A Cascade 1-3/16 Disc Tumbler Cam Lock

Product Description

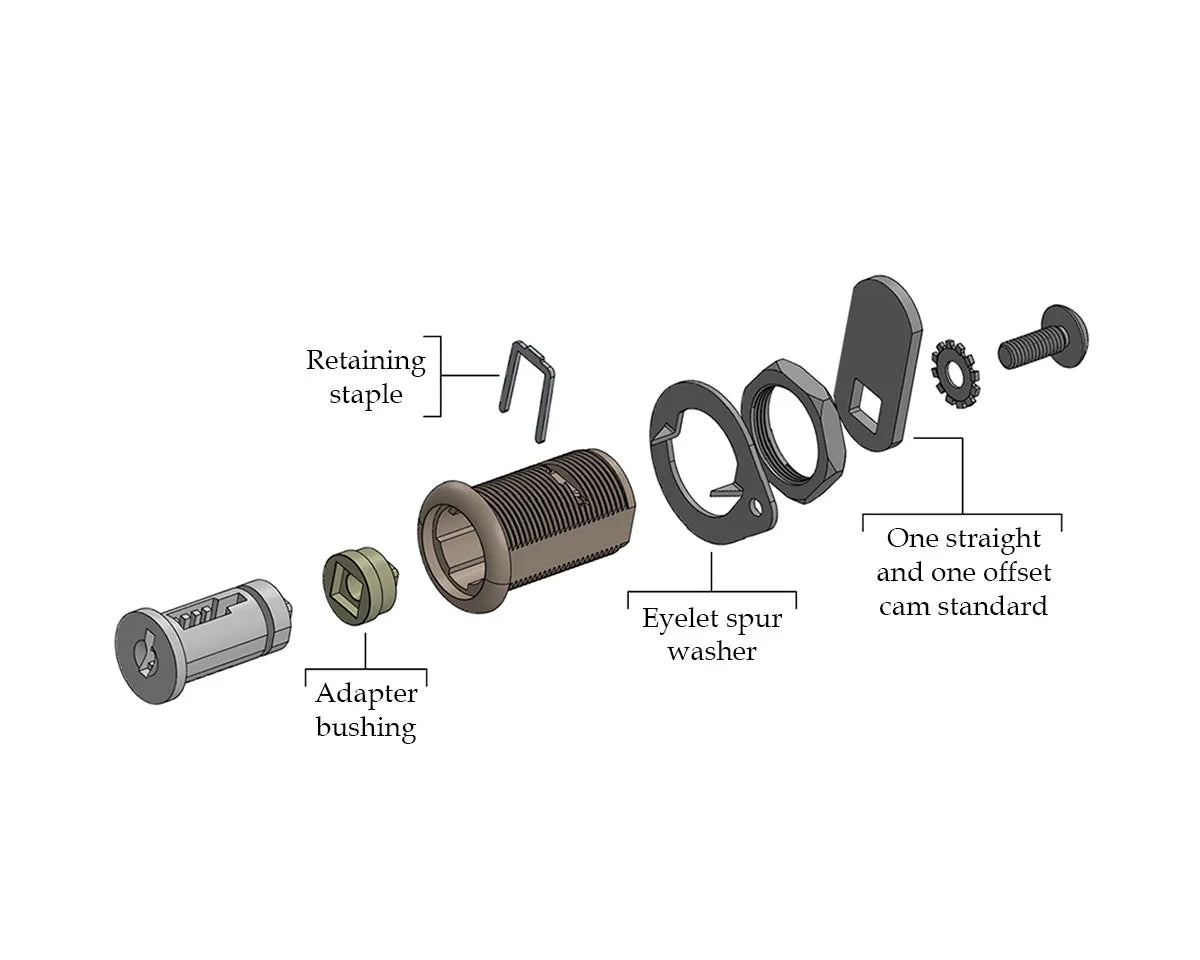

The Olympus 953-US19-C346A Cascade Series 1-3/16 inch Disc Tumbler Cam Lock provides a secure locking option for drawers and doors. This product features a patented retainer staple that simplifies the installation of the plug into the cylinder without using keys. It is pre-assembled, making the setup fast and convenient. The cam lock includes everything necessary for installation, such as keys, cams, and mounting hardware.

• Patented design allows for quick assembly without tools
• Passed ANSI/BHMA Grade 2 tests for durability with twenty thousand cycles
• Compatible with CompX National disc tumbler locks for added flexibility

Product Highlights

The Olympus cam lock is built for durability and ease of use. Its design is suited for various applications, including cabinets and storage units, providing reliable security.

Product Information

Standard Information

• Manufacturer: Olympus Lock
• Manufacturer Location: Taiwan

Technical Specifications

• Material: zinc die-cast
• Type: cabinet lock
• Warranty: 1 year limited
• Maximum Material Thickness: 7/8 inch
• Cylinder Length: 1-3/16 inch
• Bore Hole: 3/4 inch
• SKU: 11666730
• Product Type: Cam Lock
• Application: Doors and Drawers
• Tumbler Type: Disc
• Mounting Type: Flush or Lipped/Overlay
• Rotation: 90 degrees
• Cam Length: 1-1/2 inch (Straight), 1-1/8 inch (Offset)
• Keyway: Cascade Series (equivalent to National 5-disc system)
• Key Code: C346A
• Security Certification: ANSI/BHMA Grade 2
