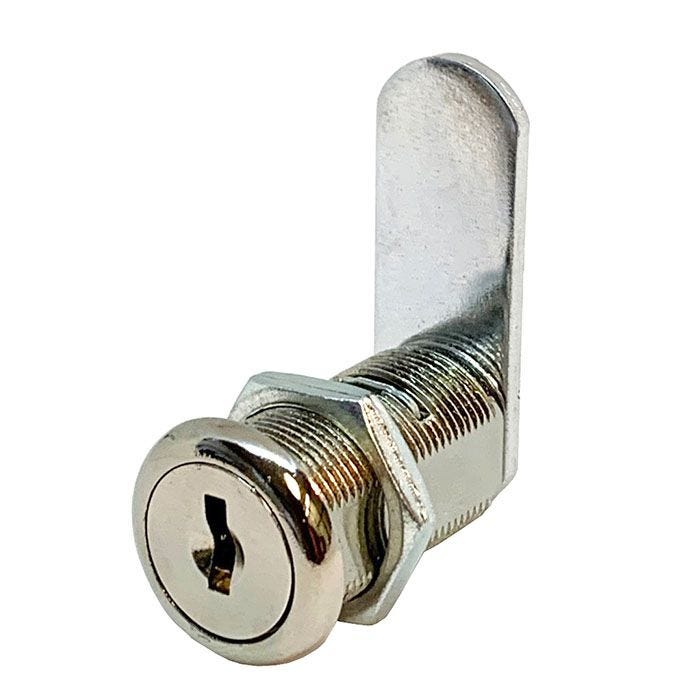

Olympus 953-14A-C452A Cascade Series Disc Tumbler Cam Lock 1-3/16inch

Product Description

The Olympus Lock 953-14A-C452A Cascade Series disc tumbler cam lock features a durable die-cast zinc body and cylinder design. The cylinder measures one and three sixteenths inches in length, making it compatible with CompX National C8053 Series locks. This lock set comes complete with change keys, both straight and offset cams, and all necessary hardware for installation.

• Die-cast zinc body and cylinder
• Compatible with CompX National disc tumbler locks
• Passed ANSI/BHMA Grade 2 cycle test, ensuring 20,000 cycles of operation

Product Highlights

This cam lock is made for durability and is designed to work seamlessly with various locking systems, suitable for different material thicknesses.

Product Information

Standard Information

• Manufacturer SKU: 953-14A-C452A
• Brand: Olympus Lock

Technical Specifications

• Cylinder Length: 1-3/16 inches
• Series: Cascade Series
• Key Number: C452A
• Item Name: 953 Series Cam Lock Set
• Type: 5 Disc Tumbler Cam Lock

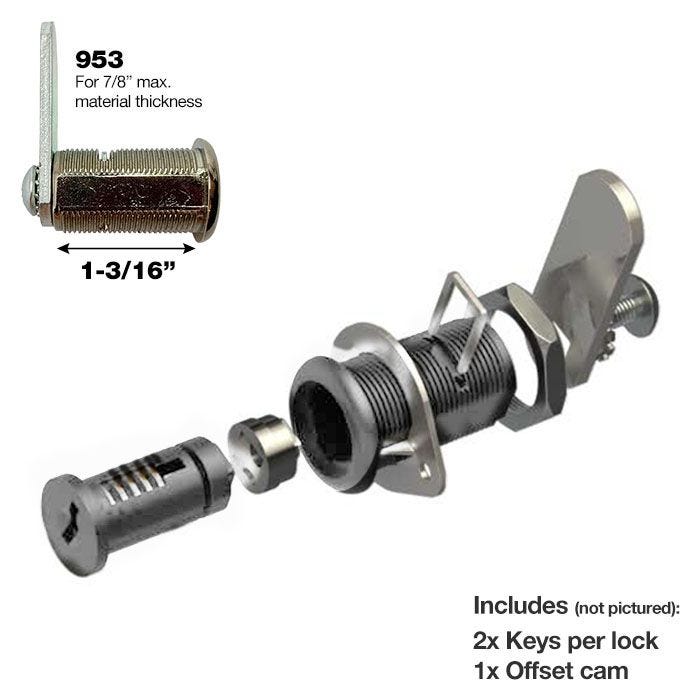

• Includes: Cylinder with lock body assembly, two keys, one straight cam, one offset cam, eyelet spur washer, fixing nut, trim ring, cam screw with star washer, retainer staple, plug extender
• Packaging Quantity: 15 per box
• Mounting Hole Size: three fourths inches in wood, five eighths by three fourths inches in metal
• Material: Die-Cast Zinc
• Key Type: Keyed Alike
