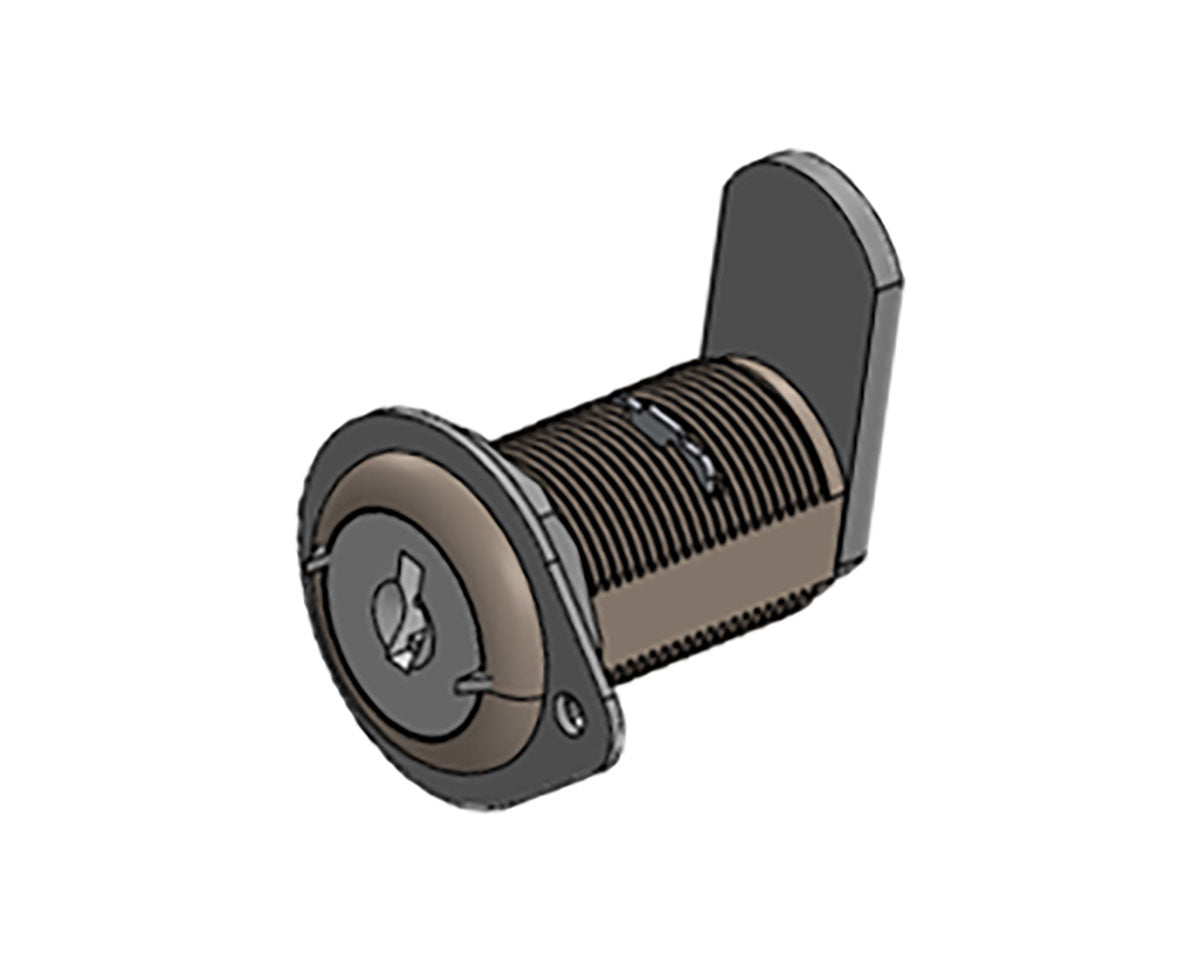

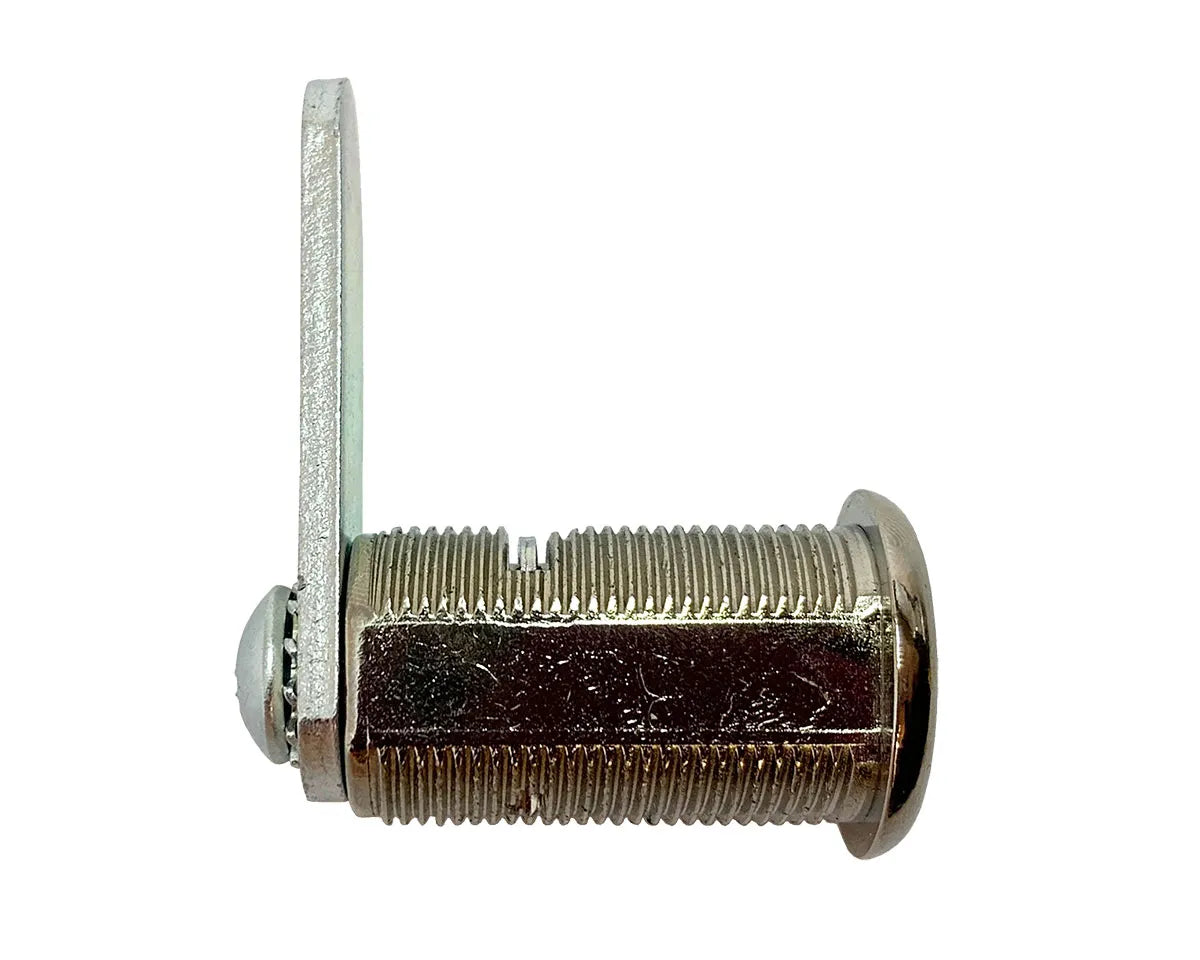

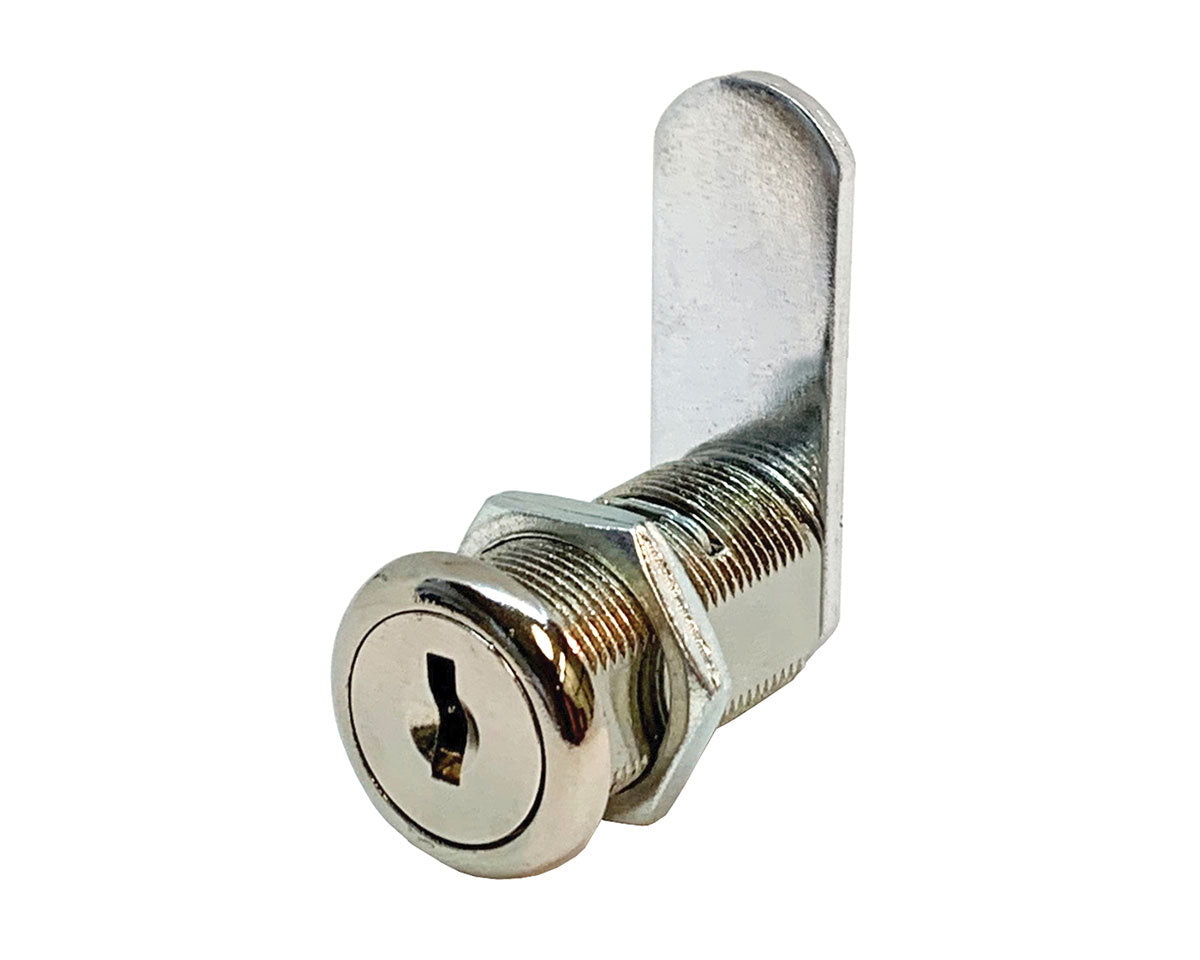

Olympus 953-14A-C413A Cascade 1-3/16 Disc Tumbler Cam Lock - Keyed Alike #413

Product Description

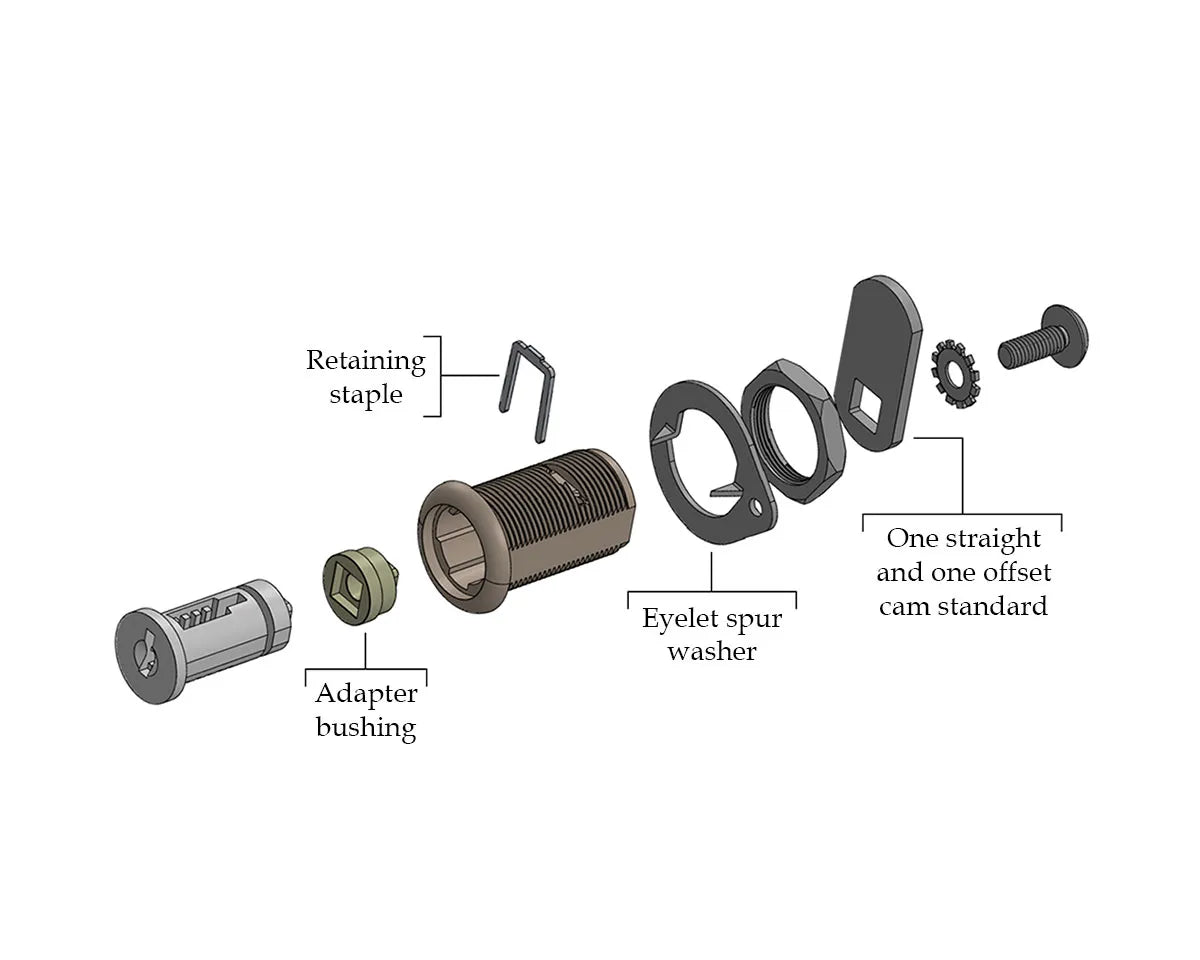

The Olympus 953-14A-C413A Cascade Series cam lock offers a secure and efficient locking solution for drawers and doors. It includes a patented retainer staple that allows for easy installation without needing keys. This lock is designed for maximum material thickness of seven-eighths inches and has passed a rigorous ANSI/BHMA Grade 2 cycle test of twenty thousand cycles.

• Use with drawers and doors, suitable for right-hand and left-hand applications.
• Quick and simple cylinder replacement process.
• Keyed alike for added convenience.

Product Highlights

This cam lock is ideal for securing cabinets, providing a reliable locking mechanism for both residential and commercial use.

Product Information

Standard Information

• Manufacturer: Olympus Lock
• Manufacturer Location: Taiwan

Technical Specifications

• Material: Zinc die-cast
• Type: Cabinet lock
• Warranty: 1 year limited warranty, includes mounting hardware
• Maximum Material Thickness: 7/8 inches
• Cylinder Length: 1-3/16 inches
• Bore Hole: 3/4 inches
• Product Type: Cam Lock
• Keying: C413
• Manufacturer Series: 953
• Application: Doors and Drawers
• Tumbler Type: Disc
• Mounting Type: Flush or Lipped/Overlay
• Rotation: 90 degrees
