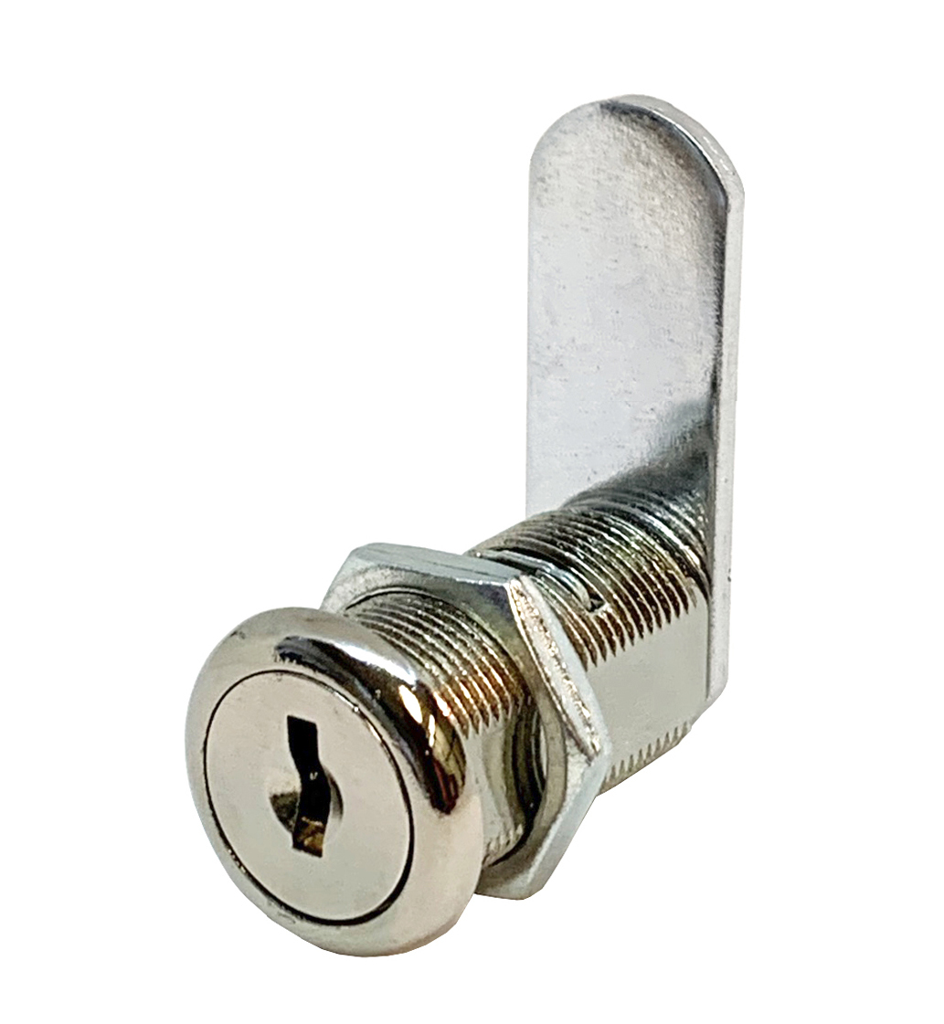

OLYMPUS 953-14A-C346A Cascade Series 1-3/16 Cabinet Lock

Product Description

The OLYMPUS 953-14A-C346A Cascade Series is a cabinet lock designed for security and ease of use. This 1-3/16 inch lock features a five-disc tumbler key system. It can key into CompX and National C8053 style disc tumbler locks, providing versatility. The lock allows for 90-degree cam rotation, with the key being removable in both locked and unlocked positions. It is suitable for installation in a standard three-quarter inch diameter hole.

• 5-disc tumbler key system
• Key removable in locked or unlocked position
• Includes two keys with each lock

Product Highlights

This cabinet lock is ideal for cabinets requiring secure locking mechanisms. Its durable design and compatibility with standard key systems make it a reliable choice for various applications.

Product Information

Standard Information

• Finish: US14 Bright Nickel Plated
• Key Type: Disc Tumbler

Technical Specifications

• Length: 1-3/16 inches
• Body Material: Zinc Die Cast
• Cylinder: Zinc Die Cast, 5 Disc Tumbler
• Standard Function: Key removable in locked or unlocked position
• Cams: Includes one straight and one offset cam
• Spur Washer: Anti-rotation, eyelet spur washer
• Keyway: Cascade Series
• Stock Keying: KD and MKKD
