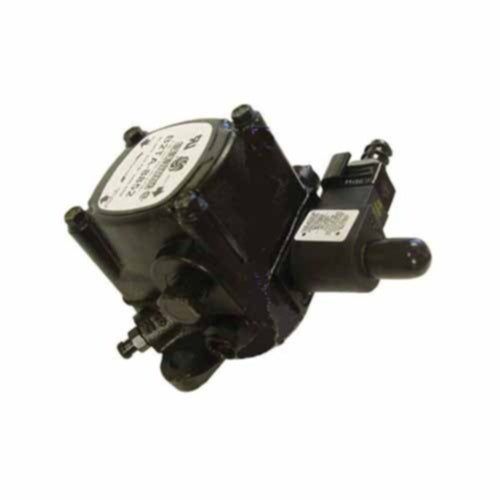

Suntec B2TA-8852 2-Stage Fuel Oil Pump 32 GPH 3450 RPM

Product Description

The Suntec B2TA-8852 is a reliable 2-stage fuel oil pump designed for various oil heating applications. Featuring a 3450 RPM speed and 32 GPH flow rate, this pump ensures efficient fuel oil transfer.

• Two pipe installations up to 17 Hg vacuum
• Adjustable manual or automatic high/low firing
• High efficiency burner applications

Product Highlights

The Suntec B2TA-8852 fuel oil pump supports lift or gravity feed applications with a 10 psi maximum inlet/return pressure and offers pressure adjustability for high and low fire. It is suitable for various configurations, featuring a two-bolt flange that allows mounting in any position except upside down, and a right nozzle location. This pump is primarily designed for number 2 fuel oil, and other fuels may require consultation with the factory.

Product Information

Standard Information

• Brand: Suntec
• MPN: B2TA-8852

Technical Specifications

• Flow Rate: 32 GPH
• Speed: 3450 RPM
• Mount: Flange
• Stages: 2
• Rotation: CW
• Inlet Pressure: 10 psi
• Pressure Adjustable: 100-300 psi
• Vacuum: 17 Hg
• Nozzle Location: Right
• Fuel Compatibility: No. 2 fuel oil
