OETIKER 16702498 Stepless Ear Clamp

Product Description

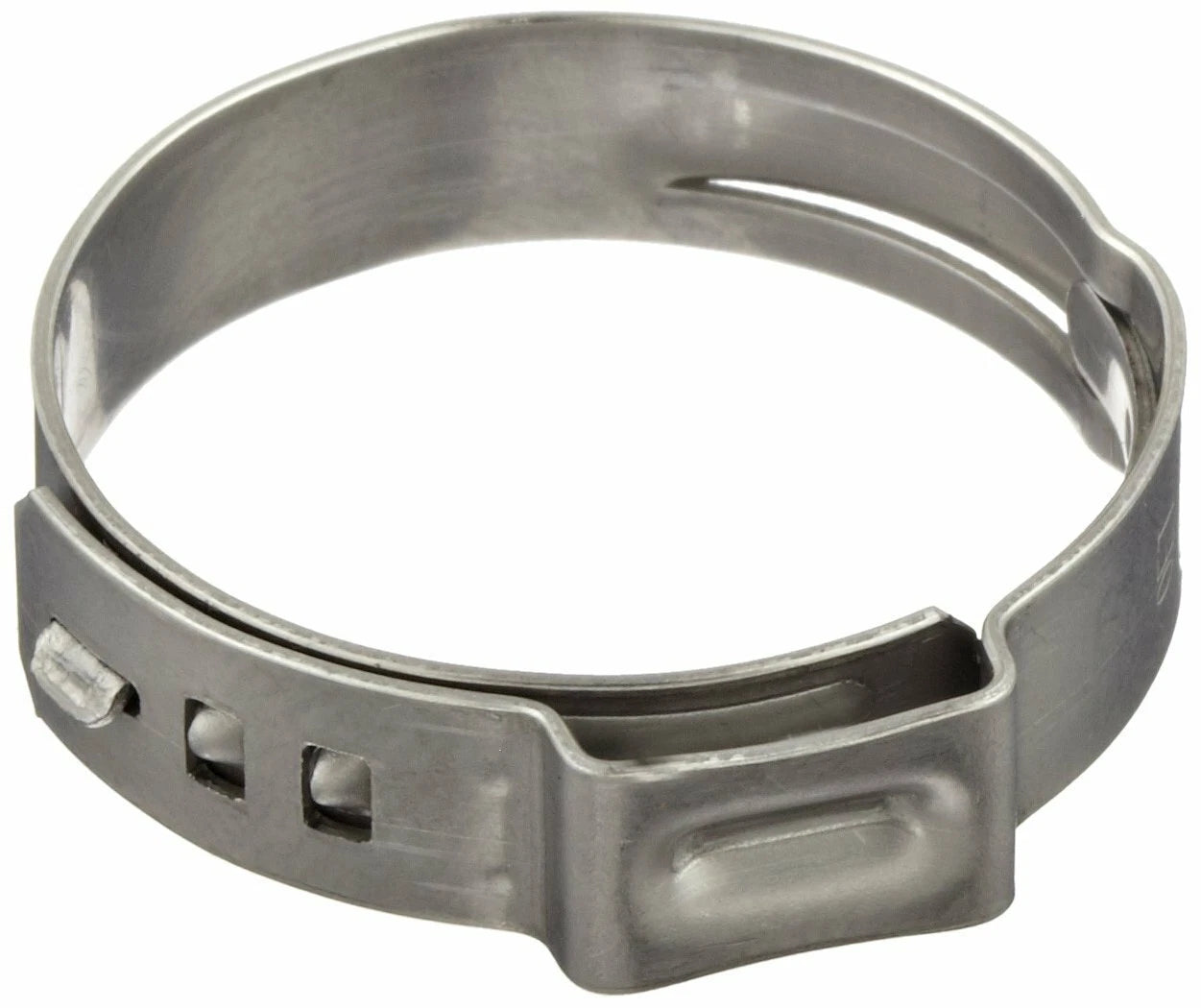

The OETIKER 16702498 is a stepless ear clamp made from stainless steel. It is designed to create a uniform seal around hoses and pipes. This clamp features a narrow band that helps to concentrate seal compression for a secure fit. Its smooth edges are intended to minimize damage to the clamped material. This versatile clamp is suitable for multiple applications in HVAC, plumbing, and automotive.

• Stepless design ensures uniform sealing.
• Narrow band focuses compression effectively.
• Safe for clamping with smooth edges.

Product Highlights

Reliable clamp for secure connections in various installations.

Product Information

Standard Information

• Brand: OETIKER
• MPN: 16702498

Technical Specifications

• Series: 167 Series
• Style: Ear Clamp
• Nominal Size: 3/4 in
• Size Range (mm): 16.6 - 19.8
• Size Range (inches): .654 - .780
• Minimum Diameter: 16.6 mm - 0.65 inch
• Maximum Diameter: 19.8 mm - 0.78 inch
• Band Width: 7.0 mm - 0.28 inch
• Band Thickness: 0.6 mm - 0.02 inch
• Band Material: 304 Stainless Steel
• Material: Stainless Steel
• RoHS Compliant: Yes
• Units Per Bag: 100 Clamps per bag
• Band Dimension: 7 mm Wide
