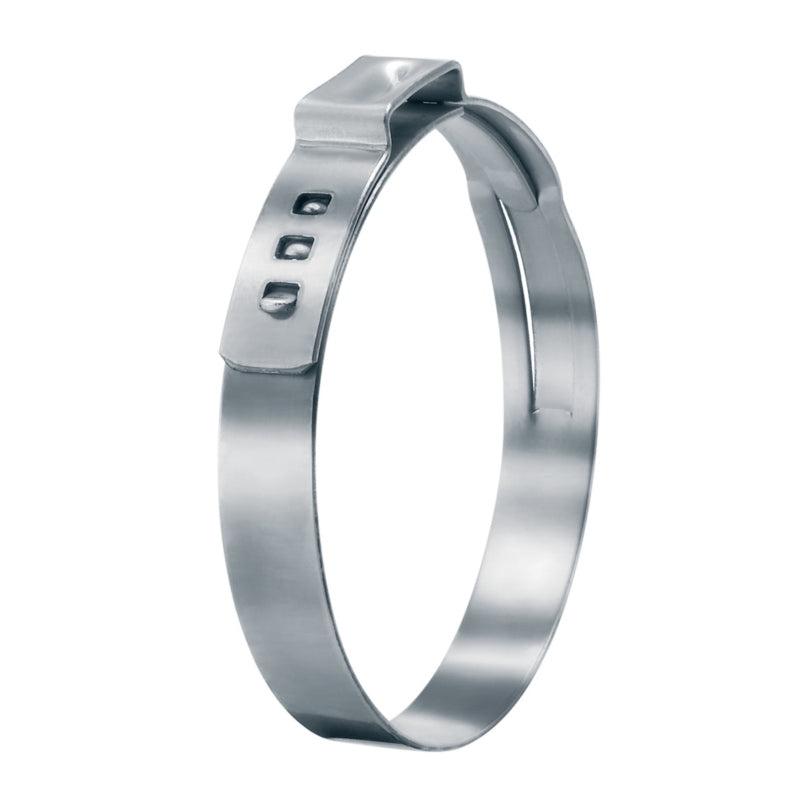

OETIKER 16700001 StepLess Ear Clamp

Product Description

The OETIKER 16700001 StepLess Ear Clamp offers reliable 360-degree compression. This clamp is engineered with a tongue-in-groove design that ensures a smooth inner surface. Made from stainless steel, it is resistant to corrosion and ideal for various plumbing applications. The narrow band design focuses on effective seal compression, ensuring secure connections. The clamp also features a design that shows signs of tampering clearly. It is suitable for PEX plumbing connections and meets ASTM F2098 standards for compatibility with ASTM F1807 or F2159 insert fittings and ASTM F876 PEX tubing.

• Provides uniform 360-degree compression
• Features a narrow band for concentrated seal
• Constructed from corrosion-resistant stainless steel

Product Highlights

This clamp is ideal for ensuring strong and reliable plumbing connections.

Product Information

Standard Information

• Manufacturer: Oetiker
• Series: 167 Series Stepless® Ear Clamps

Technical Specifications

• Material: Stainless Steel
• Band Width: 5 mm
• Band Thickness: 0.5 mm
• Clamp Range: 0.228 inch Closed - 0.276 inch Open Range (5.8 mm - 7 mm)
• Style: Ear Clamp
• PEX tube size 3/8: 13.3 mm width x thickness 7.0 x 0.6 mm
• PEX tube size 1/2: 17.5 mm width x thickness 7.0 x 0.8 mm
• PEX tube size 5/8: 20.8 mm width x thickness 7.0 x 0.8 mm
• PEX tube size 3/4: 23.3 mm width x thickness 9.0 x 0.8 mm
• PEX tube size 1: 29.6 mm width x thickness 10.0 x 1.0 mm
