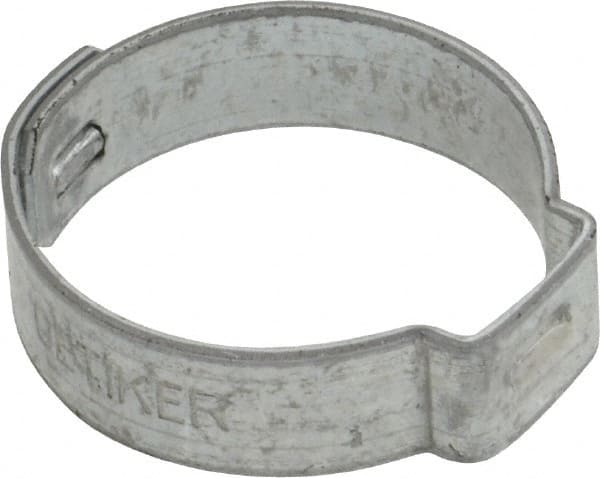

OETIKER 10500331 1-Ear Clamp

Product Description

The Oetiker 1-Ear Clamp, part number 10500331, features a narrow band suitable for various clamping tasks. This clamp is designed with a mechanical interlock for use with precoated materials and is available in carbon steel or stainless steel with a zinc-plated head coating.

• Narrow band width of seven millimeters
• One-ear design enhances clamping efficiency
• Accommodates precoated materials with mechanical interlock

Product Highlights

This clamp provides secure sealing in a compact design, ideal for plumbing and automotive applications.

Product Information

Standard Information

• Clamp Type: 1-Ear
• Nominal Size: 7/8

Technical Specifications

• Material: Carbon Steel
• Inner Width of Ear (mm): 9.00
• Inner Width of Ear (Decimal Inch): 0.3540
• Head Coating: Zinc-Plated
• Thickness (mm): 0.75
• Clamping Range (mm): 19.80 to 22.60
• Width (mm): 7.00
• Size: 226/9E
• Size Range (inches): 0.780 - 0.890
• Band Dimension: 7 mm Wide
• Series: 105 Series
• Style: Ear Clamp
• Manufacturer: Oetiker
