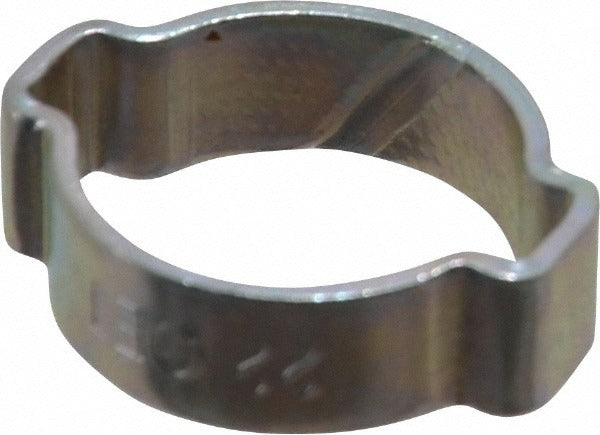

Oetiker 10100029-100 2-ear Clamp 13/16 Inch

Product Description

The OETIKER 10100029-100 is a 2-ear stepless clamp designed for secure, permanent hose and tubing connections in plumbing, HVAC, and fluid-handling applications. Constructed from carbon steel with a zinc-plated head coating, this clamp delivers reliable corrosion resistance and consistent clamping force once crimped. The band measures 9.00 mm wide and 1.50 mm thick, providing a sturdy profile suited to demanding service conditions. A licensed plumber, HVAC technician, or mechanical contractor typically installs this clamp using a dedicated ear-clamp pincer tool to achieve a uniform, leak-free crimp on hose assemblies and fittings.

This clamp is used wherever a permanent, tamper-resistant hose connection is required. Common applications include PEX tubing transitions, coolant hose assemblies, fuel line connections, and compressed-air or refrigerant-rated hose fittings. The 13/16 inch nominal size and 18.00 mm to 22.00 mm clamping range make it well suited for mid-range diameter hose and tubing found in residential and light commercial mechanical systems. Each clamp ships individually and is sold in multiples of 10.

Key Features

• 2-ear stepless design provides uniform radial clamping pressure around the full hose circumference
• Carbon steel construction with zinc-plated head coating for corrosion resistance
• 9.00 mm band width and 1.50 mm band thickness for a strong, stable grip
• Clamping range of 18.00 mm to 22.00 mm covers standard 13/16 inch nominal hose sizes
• Ear inner width of 6.28 mm (0.2560 inches) compatible with standard ear-clamp crimp tooling
• Permanent once crimped, reducing the risk of loosening from vibration or pressure cycling

Compatibility

Designed as an OEM-style replacement or new-installation clamp for 13/16 inch nominal diameter hose and tubing assemblies requiring a permanent 2-ear crimp connection.

Installation Notes

Installation requires a dedicated ear-clamp pincer or crimping tool sized for 2-ear clamps. Depressurize and drain the relevant system before removing any existing hose clamp or fitting. Slide the clamp onto the hose before seating the hose on the fitting barb, then position the ears away from obstructions and crimp fully until the ears close completely. Once crimped, this clamp cannot be removed without cutting and must be replaced if the connection is reopened.
