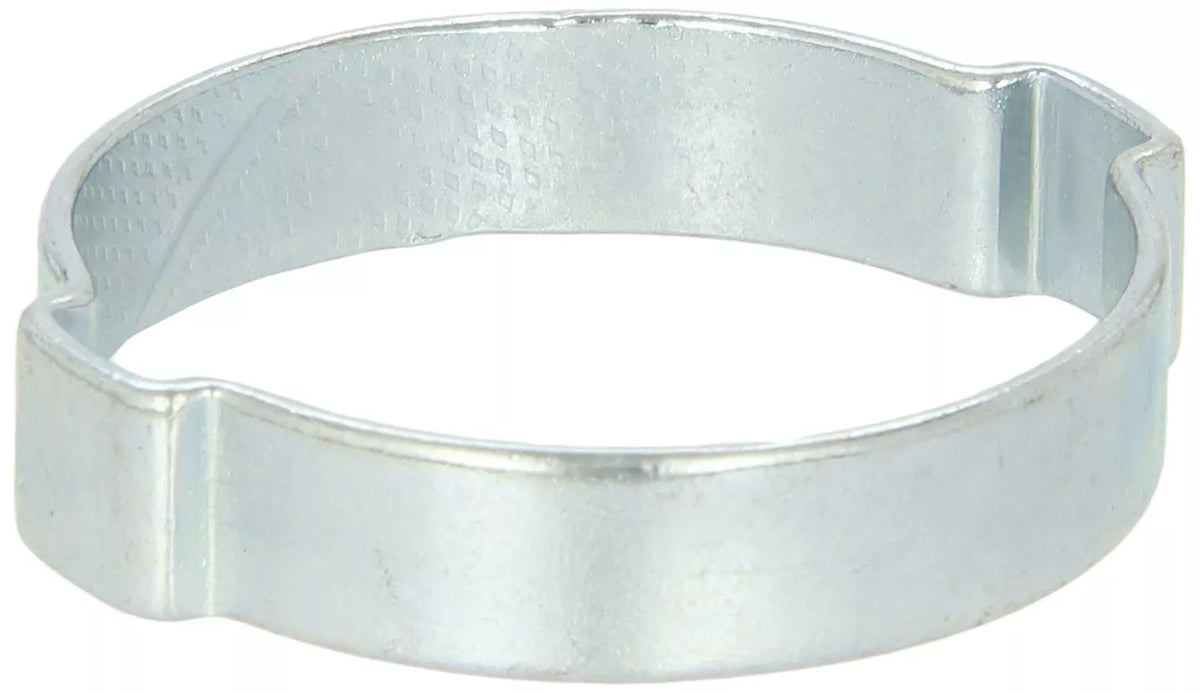

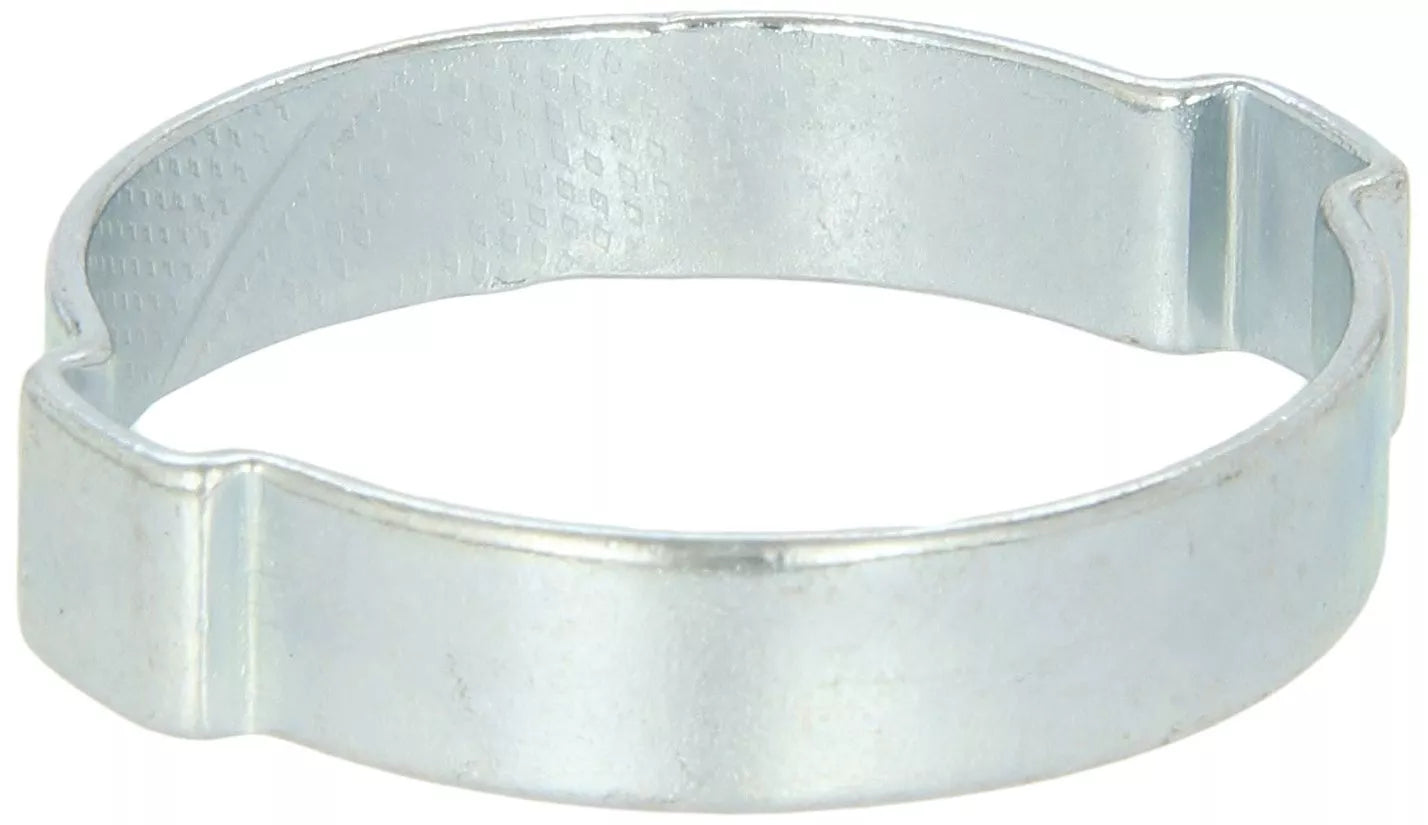

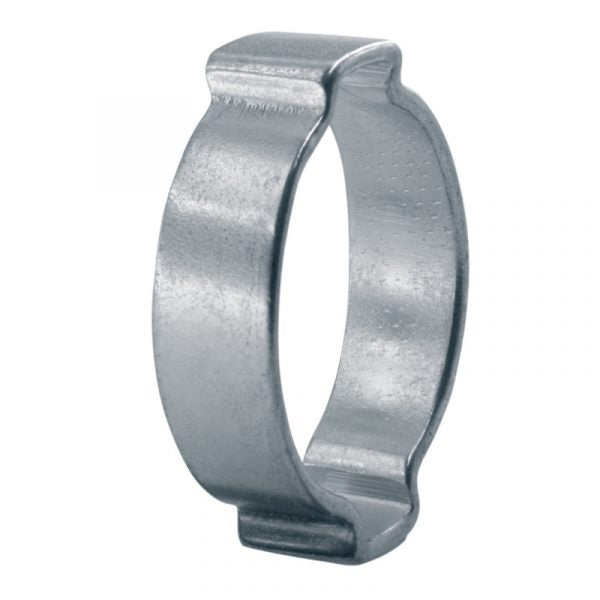

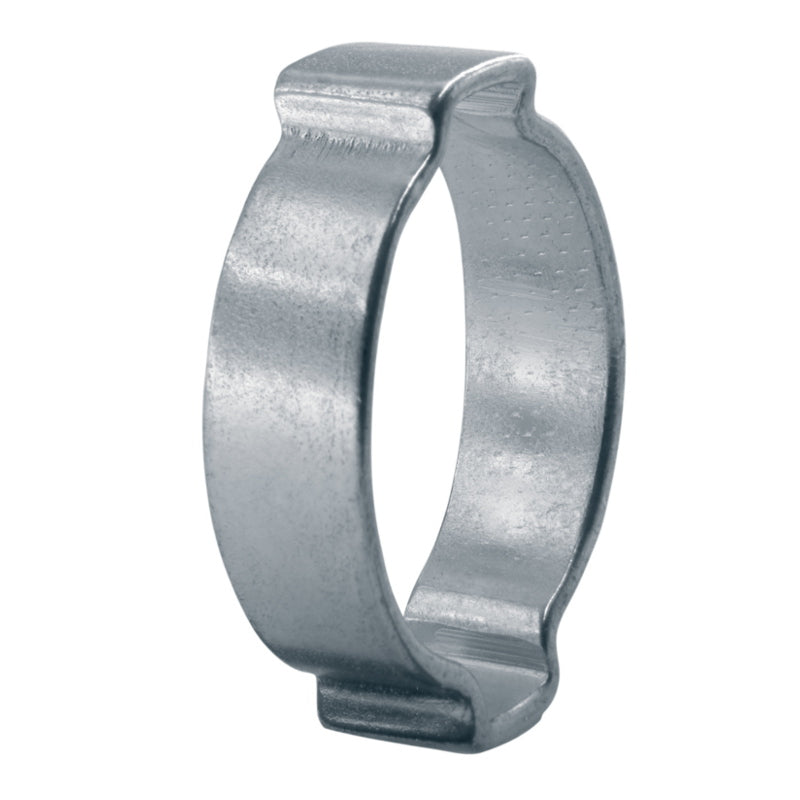

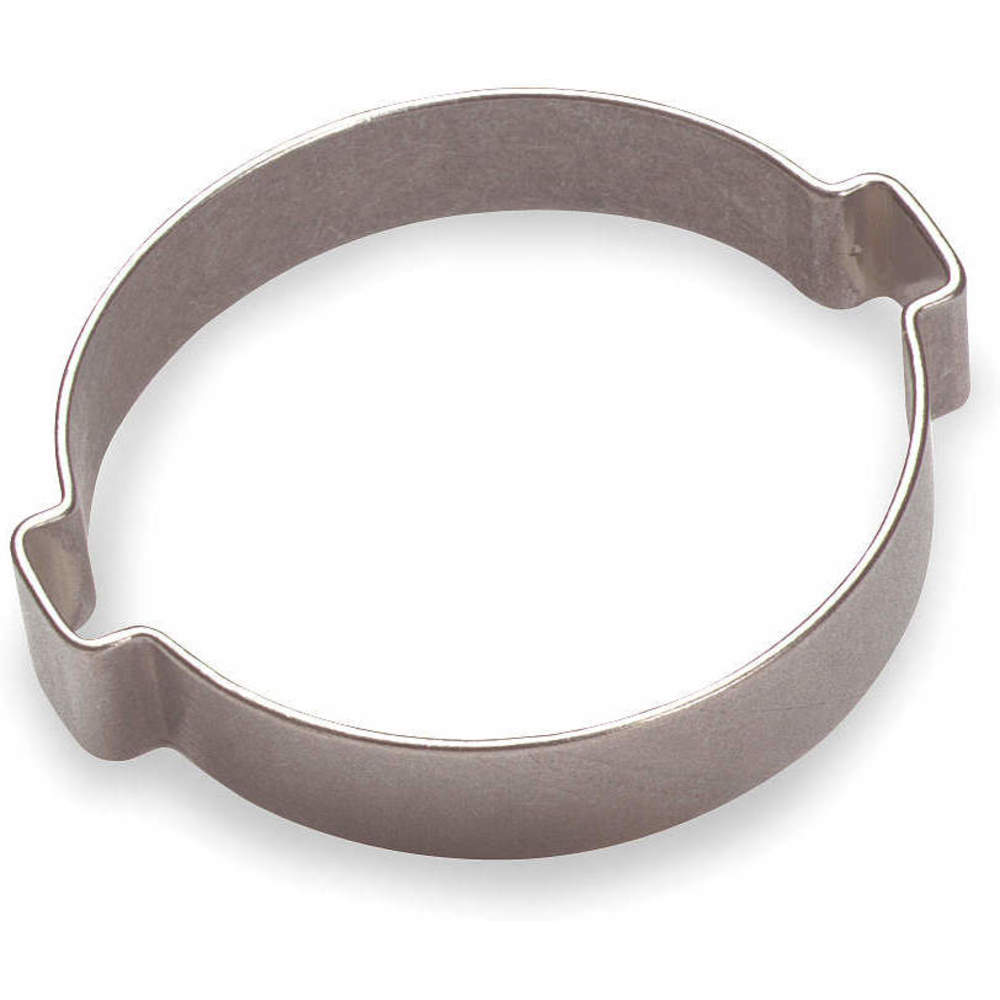

OETIKER 10100000 Double Ear Hose Clamp

Product Description

The OETIKER 10100000 is a double ear hose clamp suitable for hoses and tubing. It provides secure clamping suitable for various applications. The design allows for high resistance to vibration and temperature changes.

• Clamping range of three point one mm to four point one mm
• Made from zinc-plated steel for corrosion resistance
• Quick installation with a tamper-resistant seal

Product Highlights

This product is ideal for securing air and fluid media lines in multiple settings, ensuring a reliable connection.

Product Information

Standard Information

• Brand: OETIKER
• MPN: 10100000

Technical Specifications

• Type: Ear Clamp
• Clamp Type: Hose Clamp 2 Ear
• Material: Steel
• Material Finish: Zinc Plated
• Size Range: 3.1 mm to 4.1 mm
• Inside Diameter Minimum: 3.10 mm
• Inside Diameter Maximum: 4.10 mm
• Band Width: 7 mm
• Band Thickness: 0.5 mm
• Ear Width: 3.5 mm
• Resistance Properties: Corrosion Resistant
• Standards: DIN EN ISO 9227
• Pack Size: 100
• Weight: 0.0006 lbs
• RoHS Compliant: Yes
