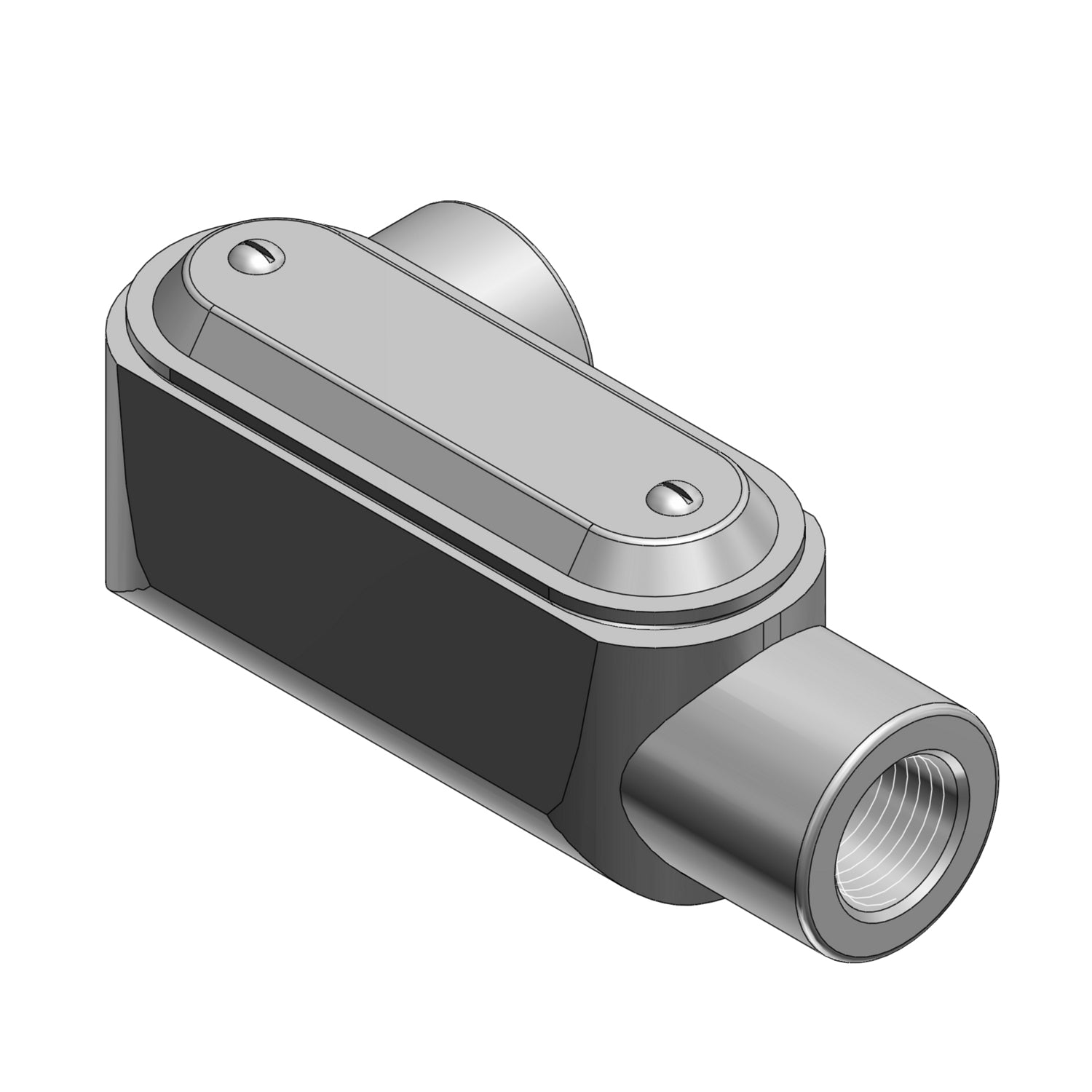

Ocal® LL37-G Type LL Conduit Body 1 in Hub Form 7

Product Description

The Ocal® LL37-G Type LL Conduit Body is designed for effective conduit connections. It features a one-inch hub and can accommodate two hubs, making it suitable for various wiring setups. This product allows for connections in straight runs or at angles, providing flexibility in installation.

Key features include:

• Made from iron, PVC coated for increased durability and protection.
• Has a capacity of 10.6 cubic inches, providing enough space for wire connections.
• Designed in accordance with Form 7 specifications for standard conduit applications.

Product Highlights

This conduit body facilitates convenient access for maintenance and future upgrades to the electrical system.

Product Information

Standard Information

• Manufacturer: ABB
• Brand: Ocal®

Technical Specifications

• Form: Form 7
• Type: Type LL
• Color: Dark Gray
• Hub Size: 1 inch
• Number of Hubs: 2
• Capacity: 10.6 cubic inches
• Material: Iron
• Finish: PVC Coated

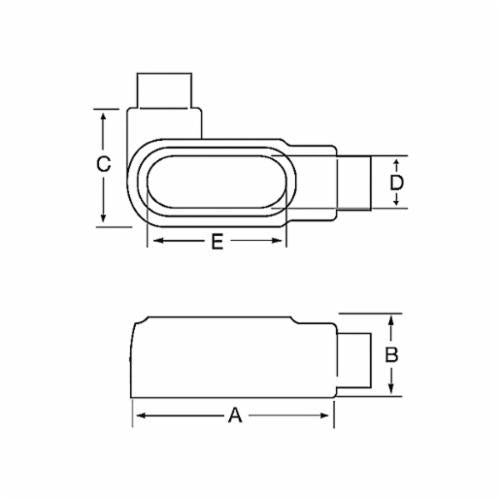

• Dimensions: 6 inches long x 1.9 inches wide x 2.6 inches high
• Connection Type: Threaded
