OATEY SD04BSTL QuickDrain 4 in. Square Tile-In Kit - Brushed Stainless Steel

Product Description

The Oatey SD04BSTL QuickDrain is a shower drain system that features a four-inch square drain cover and body. This system allows for easy integration with the surrounding tile using its tile-in cover.

• Made of 18-gauge 304 stainless steel.
• Compatible with a two-inch drain pipe.
• Handles a flow rate of up to twelve gallons per minute.

Product Highlights

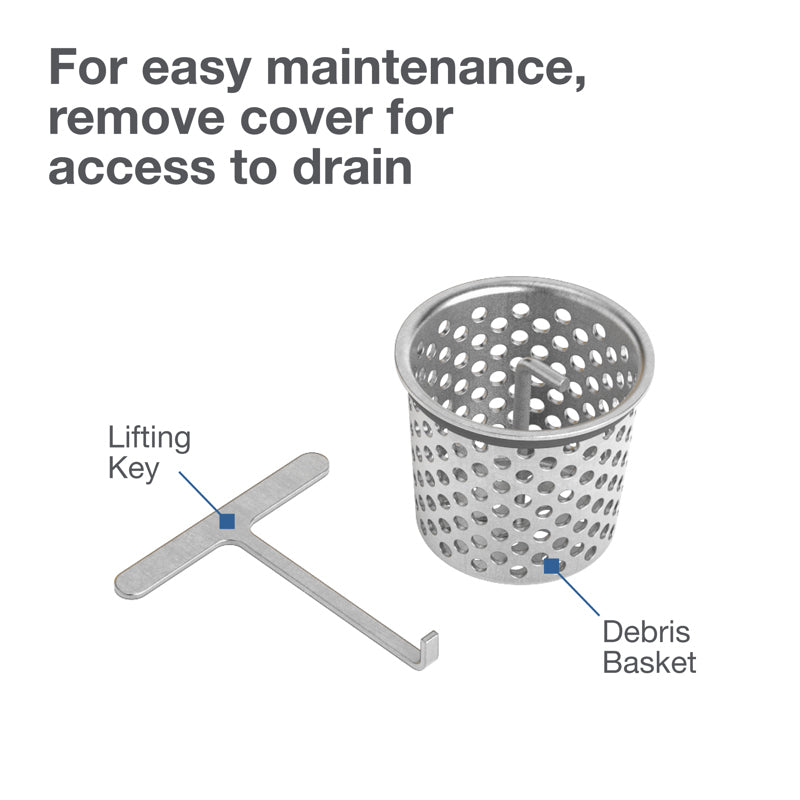

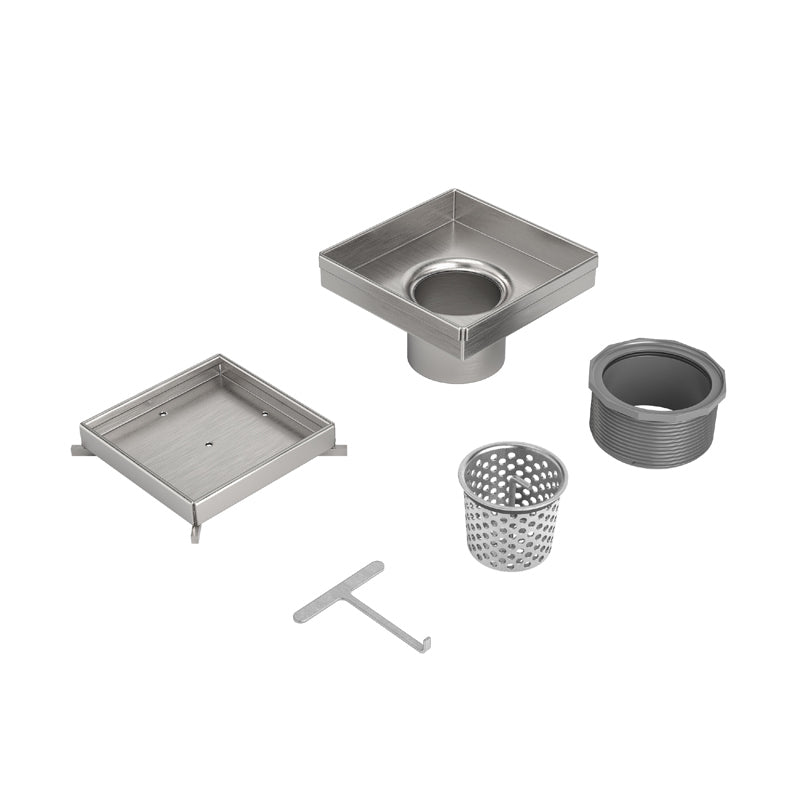

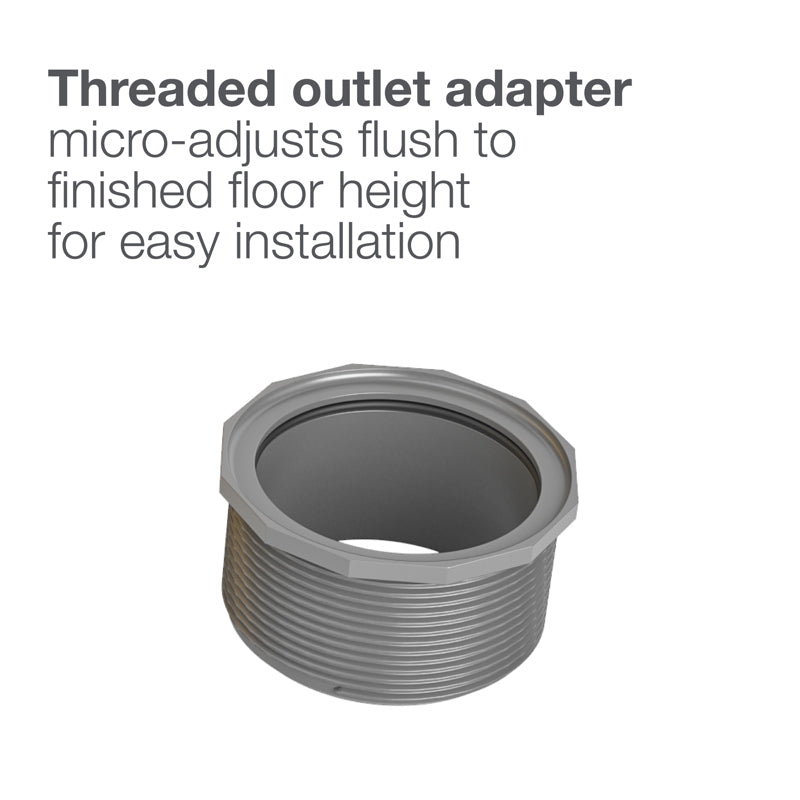

This QuickDrain kit includes a debris basket, a cover removal key for easy maintenance, and a threaded outlet adapter for straightforward installation.

Product Information

Standard Information

• Brand: OATEY
• Product Name: QuickDrain Tile-In Kit

Technical Specifications

• Material: 18-gauge 304 stainless steel
• Drain Connection: 2 inches
• Outlet: Compatible with 2 inches drain pipe; handles up to 12 GPM
• Gauge: 18
• Height: 2.5 inches
• Length: 4 inches
• Width: 4 inches
• Shape: Square
• Collection: QuickDrain SquareDrain Tile-In Kits
• Waterproofing Compatibility: Topical liquid, sheet membrane, PVC/CPE shower pan liner, and hot mop methods
