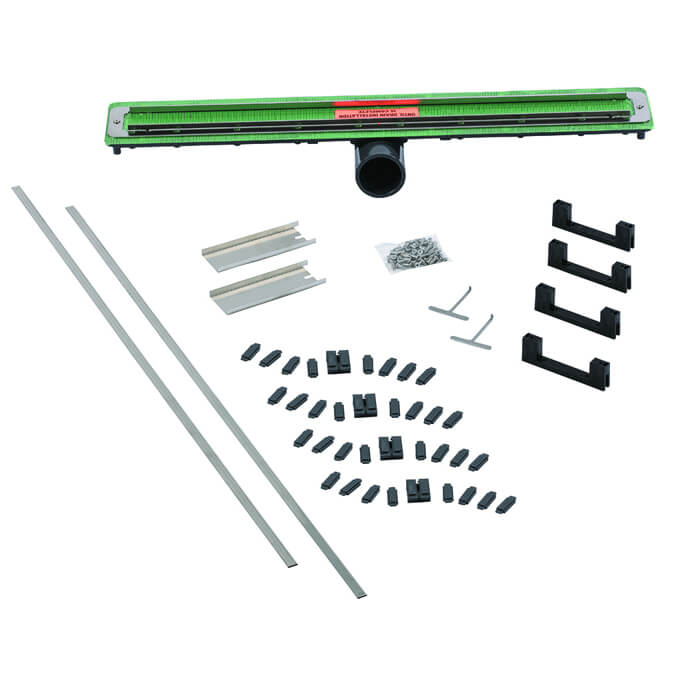

Oatey PVC2430D20 24 inches Pvc Showerline Drain Body With 2 inches Vertical Waste Outlet

Product Description

The OATEY PVC2430D20 ShowerLine linear drain system is engineered to accommodate a wide variety of parameters and enable easy installation. Features include adjustable trough extensions, accommodation of any topical waterproofing, and adjustable height. The drain body is made of PVC material, making it a cost-effective option.

• Internally Sloped Trough eliminates stagnant water and hard water build up.
• Length Adjustability of drain body with use of trough extensions to accommodate drain sizes from 24" - 72".
• Height Adjustability of drain cover with use of spacers for different thicknesses of finish material from 3/8" to 3/4".

Product Highlights

The ShowerLine linear shower drain is ideal for tub-to-shower conversions and projects that need to maximize the return on investment while delivering sophisticated style.

Product Information

Standard Information

• Brand: OATEY
• Manufacturer Part Number: PVC2430D20

Technical Specifications

• Drain Body Length: 24"
• Vertical Waste Outlet: 2"
• Drain Body Material: PVC
• Clamping Collar and Extender Material: 16 and 26 Gauge 304 Stainless Steel
• Fits finished opening: 24" to 32"
• Trough is internally pitched: 1" deep and 1" wide
• Drain capacity for 2 in. outlet: 12 GPM in a shower pan with curb and 5 GPM in a shower pan drain placed across entry
