Oatey P9702B Tubular P-Trap with Solvent Weld Adapter (1-1/2 Inch)

Product Description

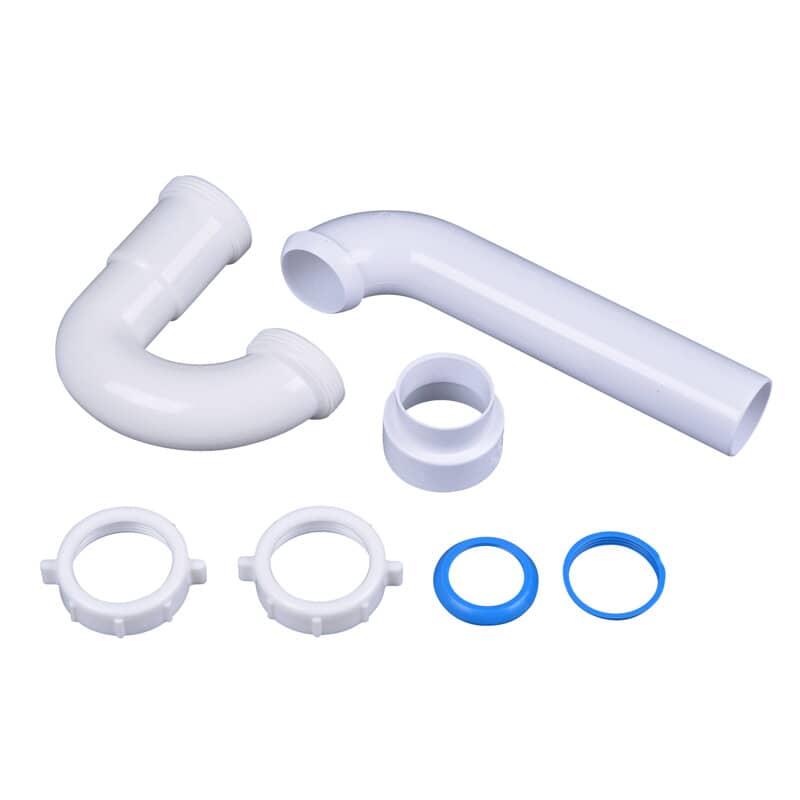

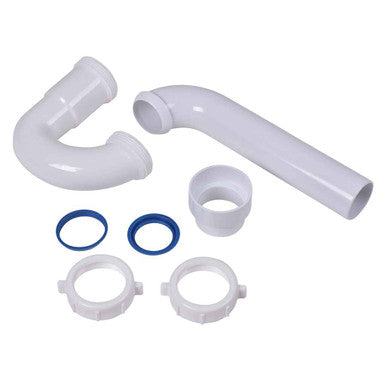

The Oatey P9702B is a tubular P-trap assembly for 1-1/2 inch nominal tubular drains, constructed of polypropylene and supplied with a solvent-weld adapter and PVC quarter bend. The unit is designed to connect to tubular drain systems and meets plumbing standards including cUPC, ASTM F 409, and IAPMO listings. Listed dimensions include a 5.14 inch height and a 10.95 inch length.

• Polypropylene tubular P-trap for 1-1/2 inch nominal pipe with solvent-weld adapter and PVC quarter bend
• Meets cUPC; also listed as meeting ASTM F 409 and IAPMO standards
• Designed for connection to tubular drains; dimensions: 5.14 in height and 10.95 in length

Product Highlights

1-1/2 in polypropylene tubular P-trap with solvent-weld PVC adapter, suitable for tubular drain connections; cUPC, ASTM F 409, and IAPMO listed.

Product Information

Standard Information

• Brand: OATEY
• Manufacturer Part Number: P9702B

Technical Specifications

• Manufacturer: Oatey
• Brand: Oatey
• Manufacturer Part Number: P9702B
• MPN: P9702B
• UPC: 041193104663
• Nominal Size: 1-1/2 in
• Pipe Size: 1-1/2 Inch
• Body Material: Polypropylene
• Material: Polypropylene
• Includes: Solvent weld adapter; PVC quarter bend
• Joint Type: Ground Joint
• Suitable For: Tubular drain
• Dimensions (Height): 5.14 in
• Dimensions (Length): 10.95 in
• Product Weight: 0.421 lb
• Standards/Listing: cUPC; Meets ASTM F 409; IAPMO listed
