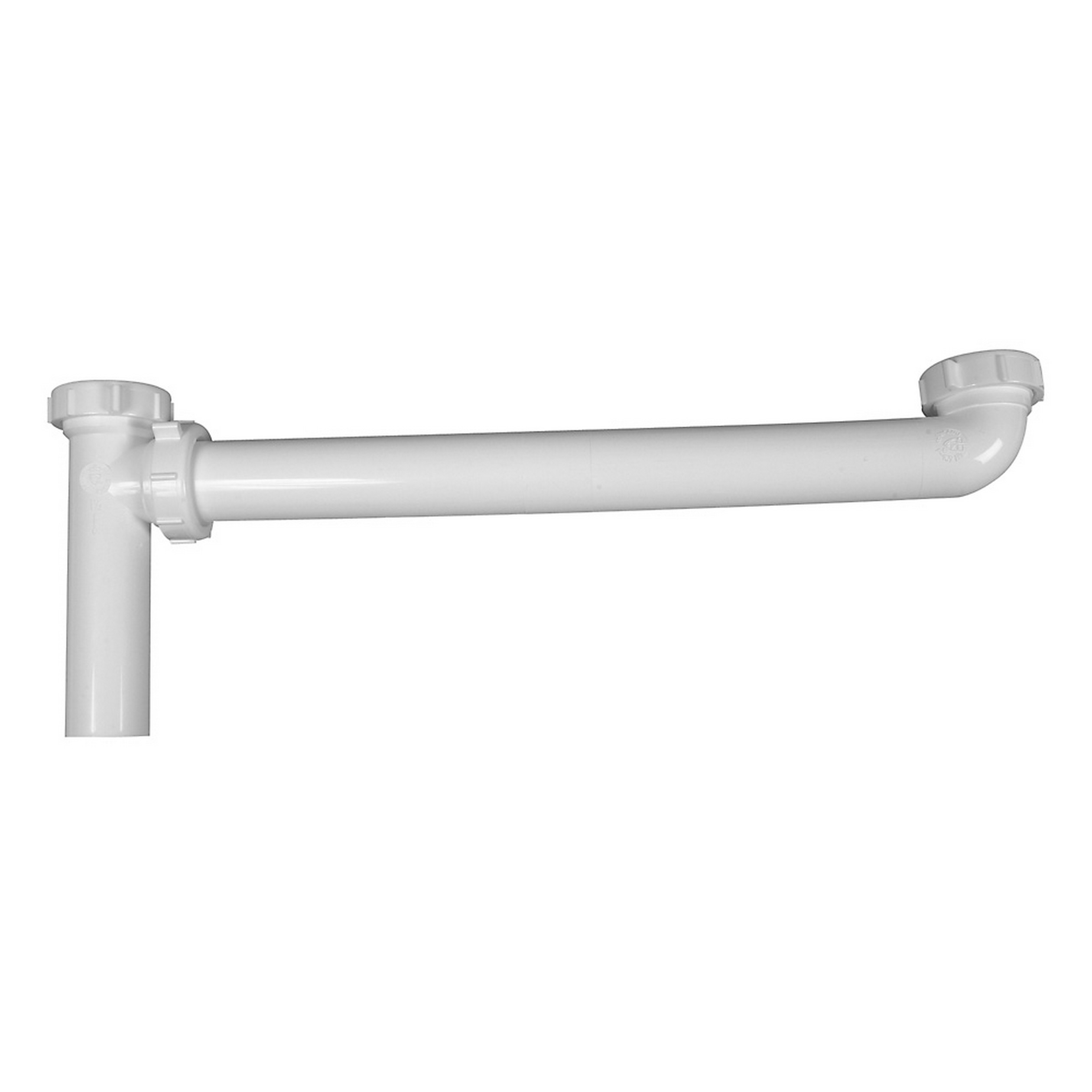

Oatey Keeney Mod Slip Joint Sink Waste Baffle Tee 1.5x16 Pvc

Product Description

The OATEY KEENEY MOD is a PVC slip joint end outlet sink waste assembly with an integrated baffle tee, sized at 1-1/2 inches by 16 inches center to center. This assembly manages wastewater drainage from the sink basin to the drain trap arm, providing a sealed, serviceable connection without solvent welding. The baffle tee directs flow and reduces splashback within the drain line. Licensed plumbers and experienced installers use this assembly in residential kitchen sink drain configurations where a slip joint end outlet layout is required.

This assembly is intended for kitchen sink drain applications requiring an end outlet configuration. The 1-1/2-inch slip joint connections allow for tool-accessible disassembly during service calls, trap replacements, or drain line inspections. The 16-inch center-to-center dimension suits standard single-bowl and certain double-bowl kitchen sink cabinet depths where the drain outlet exits toward the end of the waste arm run.

Key Features

• End outlet slip joint design provides accessible, wrench-free connections for service and maintenance
• Integrated baffle tee controls flow direction and reduces turbulence within the drain assembly
• 1-1/2-inch diameter fits standard kitchen sink drain outlets and trap arm connections
• 16-inch center-to-center length suits typical residential kitchen sink cabinet configurations
• PVC construction resists corrosion and chemical degradation from household drain effluent

Compatibility

Designed as an OEM-style replacement and new-installation slip joint end outlet waste assembly for standard 1-1/2-inch residential kitchen sink drain systems.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson in accordance with applicable IPC and local plumbing code requirements. Shut off the water supply and clear the drain line before beginning work. Slip joint nuts should be hand-tightened first, then snugged with channel-lock pliers — do not overtighten PVC slip joint connections. Inspect all slip joint washers for wear before reinstalling or reusing any existing components.

Technical Specifications

• Connection Type: Slip Joint
• Outlet Configuration: End Outlet
• Pipe Diameter: 1-1/2 inches
• Center to Center Length: 16 inches
• Material: PVC
• UPC: 041193104090

Standard Information

• Brand: OATEY
• Manufacturer Part Number: KEENEY MOD
