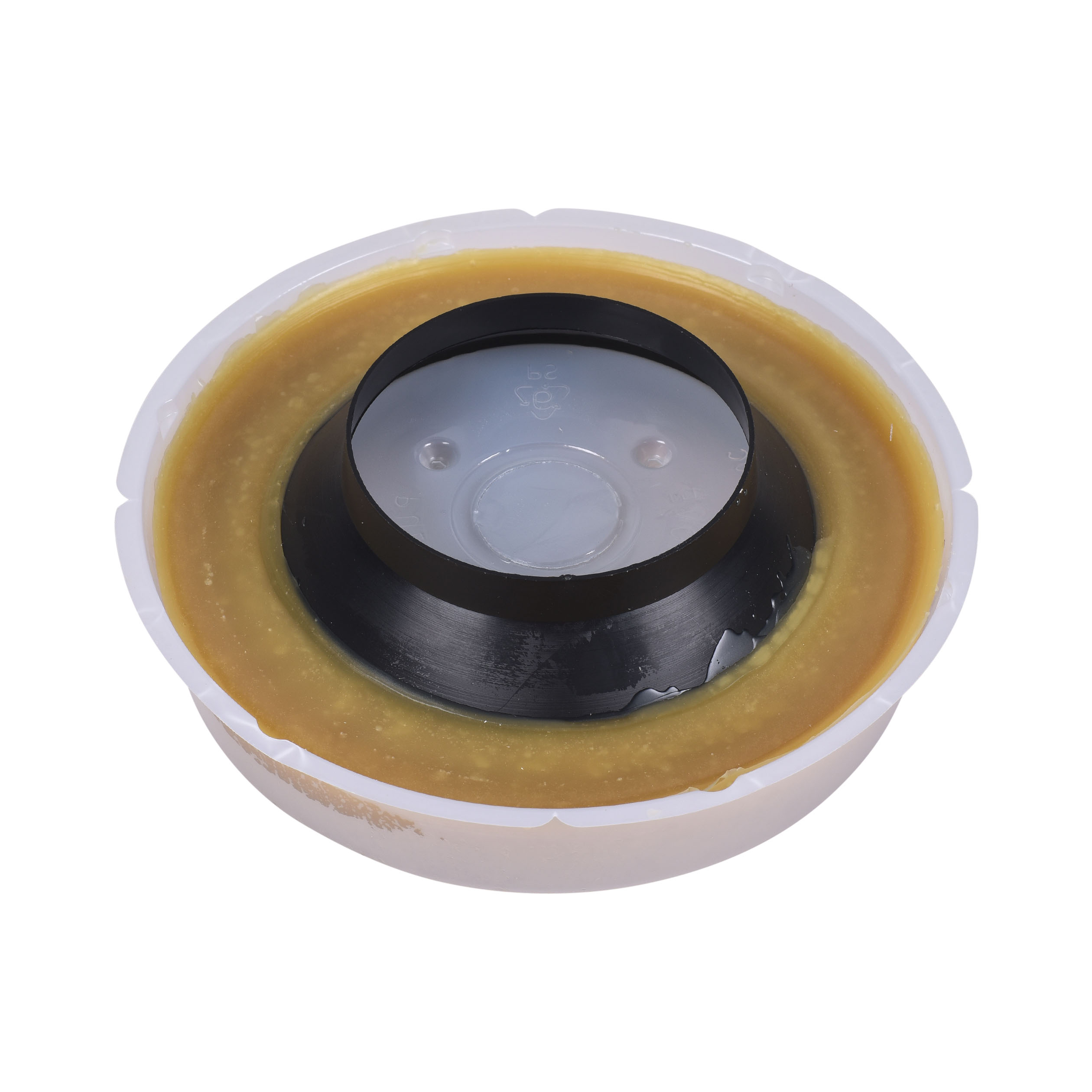

Oatey DWS Johni-ring Deep Wax Seal with Horn 3 4 Inch

Product Description

The OATEY DWS Johni-Ring is a deep wax toilet flange gasket with a plastic horn, designed to create a permanent, sanitary, gas-tight and watertight seal between a water closet and the drain flange. Constructed from high-quality golden wax, this gasket resists drying out, hardening, and deterioration over time. It fits standard 3-inch and 4-inch drain configurations, making it a versatile choice for residential toilet installations. Licensed plumbers rely on this style of wax seal for reliable, long-lasting closet connections in both new construction and replacement service work.

The DWS is suited for use with most standard water closets in residential plumbing applications. The plastic horn extension makes it the preferred choice when the toilet flange sits below the finished floor level, helping to maintain a proper seal where a standard-depth wax ring may fall short. It is commonly installed during toilet replacements, bathroom remodels, or any service call requiring a fresh wax seal at the base of a toilet.

Key Features

• Deep wax construction with plastic horn for sub-floor flange installations
• Fits 3-inch and 4-inch drain flange openings
• Golden wax formulation resists drying, hardening, and deterioration
• Creates a permanent, gas-tight and watertight seal
• Compatible with most standard water closet bases

Compatibility

Designed as an OEM-style replacement wax seal for use with most standard residential water closets on 3-inch or 4-inch drain flanges.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and completely drain the tank and bowl before removing the existing toilet. Set the wax ring horn-side down onto the flange or horn-side up against the toilet horn before lowering the fixture, following the manufacturer's recommended method. Never reuse a compressed wax seal — always install a fresh ring when resetting a toilet.

Technical Specifications

• Drain Size: 3 inches or 4 inches
• Horn Included: Yes, plastic horn
• Wax Type: Golden wax
• UPC: 032628902206

Standard Information

• Brand: OATEY
• Manufacturer Part Number: DWS
