Oatey Company 43400 Toilet Flange Extender Kit

Product Description

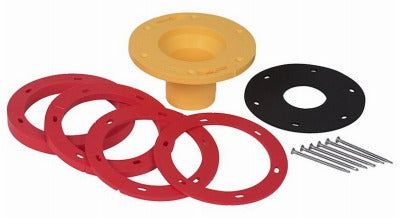

The OATEY COMPANY 43400 is a Set Rite Toilet Flange Extender Kit designed to correct floor elevation changes that leave an existing flange sitting below the finished floor surface. It accommodates elevation corrections from 1/8 inch up to 2-1/4 inches, making it a practical solution for remodel and renovation work where tile, hardwood, or other flooring materials have raised the finished floor above the original flange ring. The kit installs without replacing the existing flange and is listed to UPC standards. Licensed plumbers and experienced renovators are the primary installers. The patented design restores a proper sealing surface so a wax ring or gasket seal can seat correctly.

This flange extender kit is used in residential and light commercial plumbing renovation applications where the finished floor elevation has increased due to flooring installation or subfloor work. It is compatible with existing PVC, ABS, metal, stainless steel flange rings, and cast iron flanges. The kit is appropriate for repair and renovation scenarios where the goal is to restore the flange sealing surface to the correct height relative to the finished floor without full flange replacement. Each package contains 5 units.

Key Features

• Corrects flange elevations from 1/8 inch up to 2-1/4 inches above the existing flange ring
• Compatible with PVC, ABS, metal, stainless steel, and cast iron flanges
• Patented Set Rite design restores the flange sealing surface for proper wax ring or gasket seating
• UPC listed for code-compliant repair and renovation work
• No full flange replacement required — installs over the existing flange
• Sold in a package of 5 units

Compatibility

Designed for use with existing PVC, ABS, metal, stainless steel flange rings, and cast iron flanges in repair and renovation applications where the finished floor elevation has risen above the original flange seating surface.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson. Shut off the water supply and remove the toilet before beginning flange work. Verify the existing flange ring is structurally sound before installing the extender. Follow local plumbing code requirements, including applicable IPC provisions, for flange height and toilet rough-in specifications.

Technical Specifications

• Elevation Correction Range: 1/8 inch to 2-1/4 inches
• Compatible Flange Materials: PVC, ABS, Metal, Stainless Steel, Cast Iron
• Listing: UPC Listed
• Package Quantity: 5 units per package
• Unit of Measure: EA
• Weight: 5.9 pounds

Standard Information

• Brand: OATEY COMPANY
• Manufacturer Part Number: 43400
