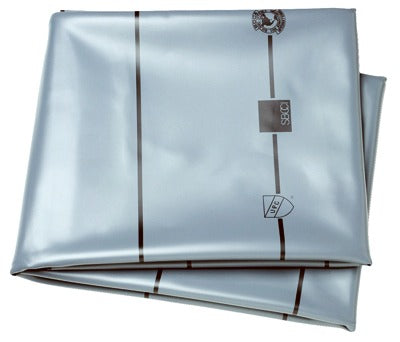

Oatey Company 41630 Shower Pan Liner Floor 5x6 Ft

Product Description

The OATEY COMPANY 41630 is a pre-cut shower pan liner floor sheet designed to waterproof the base of a custom-built shower stall. Constructed from 40mm thick flexible sheet material, it provides a durable moisture barrier between the shower floor mortar bed and the structural subfloor. At 5 feet by 6 feet, the liner arrives ready to install without field cutting for standard applications. Licensed plumbers and tile contractors install this liner as part of a code-compliant wet-area shower build. The flexible construction conforms to sloped mortar beds and coves at wall transitions.

This liner is sized to accommodate shower stall builds up to 3 feet by 5 feet. It is used in residential and light commercial applications where a mortar-bed shower system is constructed from the ground up. The liner is installed beneath the mortar bed, with edges turned up and clamped into a drain assembly to form a continuous waterproof basin. It is appropriate for new construction and remodel projects where a tile or stone finish floor is specified.

Key Features

• 40mm thick flexible sheet construction conforms to sloped mortar beds and wall transitions
• Pre-cut to 5 feet by 6 feet, sized to build stalls up to 3 feet by 5 feet
• Flexible material allows field forming at corners and coves without specialized tooling
• Single-piece construction minimizes seam points in the waterproof barrier

Compatibility

Designed as an OEM-style replacement or new-installation liner for mortar-bed shower pan systems in residential and light commercial tile installations.

Installation Notes

Installation is performed by a licensed plumber or qualified tile contractor in accordance with local plumbing code and the requirements of the IPC. The liner must be clamped securely into the drain body clamping ring before the mortar bed is poured. Do not use fasteners through the liner field; fasten only at the top edge above the finished flood line. Test the pan for leaks before setting tile.

Technical Specifications

• Sheet Thickness: 40mm
• Sheet Dimensions: 5 feet by 6 feet
• Maximum Stall Size: 3 feet by 5 feet
• Weight: 21 pounds
• Unit of Measure: Each
• Package Quantity: 4

Standard Information

• Brand: OATEY COMPANY
• Manufacturer Part Number: 41630
