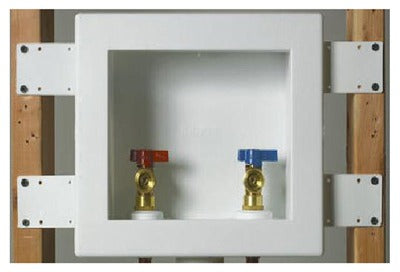

Oatey Company 38528 Washing Machine Outlet Box Pex Crimp

Product Description

The OATEY COMPANY 38528 is a washing machine outlet box designed for residential laundry rough-in applications. It accepts PEX crimp connections and features quarter-turn ball valves for reliable hot and cold supply shutoff. The patented Quadtro design supports right, left, or center drain placement and accommodates both bottom and top valve mounting configurations. A Lock Load valve mounting system allows quick valve positioning without additional tools. This box is typically installed by licensed plumbers during new construction or remodel work where a recessed laundry connection point is required.

This outlet box is suited for residential laundry installations where PEX supply lines are used. The versatile mounting configuration makes it adaptable to a range of framing layouts and wall cavity orientations. The single-lever valve mounting hub locks into position in seconds, reducing installation time on the rough-in. An integrated test cap is designed for easy installation and removal without falling into the drain opening, which simplifies pressure testing during inspection.

Key Features

• Patented Quadtro design allows right, left, or center drain positioning
• Compatible with PEX crimp connection method for hot and cold supply
• Quarter-turn ball valves provide positive shutoff with a single 90-degree handle rotation
• Lock Load valve mounting system enables fast, tool-free valve positioning
• Single-lever valve hub locks into place in seconds for efficient rough-in
• Test cap installs and removes without dropping into the drain opening
• Supports both bottom and top valve mount configurations

Compatibility

Designed as an OEM-style rough-in solution for residential washing machine supply and drain connections using PEX crimp supply lines.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the main water supply before making any connections to existing supply lines. Ensure the wall cavity depth is sufficient to fully recess the box before securing to framing. Pressure-test all connections using the included test cap prior to closing the wall.

Technical Specifications

• Connection Type: PEX Crimp
• Valve Type: Quarter-Turn Ball Valve
• Drain Position: Right, Left, or Center
• Valve Mount Position: Bottom or Top
• Weight: 6.8 pounds
• Package Quantity: 4 per package
• Unit of Measure: EA

Standard Information

• Brand: OATEY COMPANY
• Manufacturer Part Number: 38528
