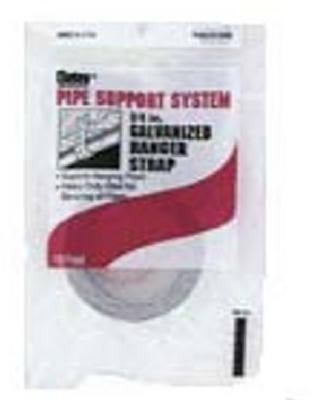

Oatey Company 33923 Metal Hanger Strap 28 Gauge Galvanized

Product Description

The OATEY COMPANY 33923 is a 3/4-inch wide, 28-gauge galvanized steel metal hanger strap used to support and hang pipe from joists, rafters, and structural framing members. Each roll is 10 feet long and features nail holes spaced 1 inch apart for consistent, evenly distributed fastening. The galvanized steel construction resists corrosion in damp or exposed environments common in residential and light commercial plumbing and mechanical installations. Plumbers and pipefitters use this strap as a fast, low-cost method to secure pipe runs without specialized hangers or clamps.

This hanger strap is suited for residential and light commercial applications where pipe needs to be supported overhead from wood framing. Typical uses include supporting copper, PVC, CPVC, and similar pipe in basement, crawlspace, and attic installations. The pre-punched nail holes allow straightforward attachment with common nails or screws directly into joists or rafters. Each unit is polybagged and sold individually, with a package quantity of 12 units per case.

Key Features

• 3/4-inch wide, 28-gauge galvanized steel construction for corrosion resistance
• 10-foot length per roll provides coverage across multiple joist or rafter spans
• Nail holes spaced 1 inch apart for consistent, secure fastening
• Compatible with a range of pipe materials including copper, PVC, and CPVC
• Polybagged packaging keeps the strap clean and tangle-free on the job site

Compatibility

Designed as a general-purpose pipe support strap for residential and light commercial plumbing and mechanical applications where 3/4-inch wide banding is appropriate for the pipe diameter and load being supported.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter following local plumbing code spacing requirements for pipe supports, such as those outlined in the IPC. Shut off water supply and depressurize lines before making any modifications to existing pipe runs. Use appropriately sized nails or screws rated for the framing material when fastening through the pre-punched holes. Avoid over-bending the strap at sharp angles, which can reduce its load-bearing integrity.

Technical Specifications

• Width: 3/4 inches
• Length: 10 feet
• Gauge: 28
• Material: Galvanized Steel
• Nail Hole Spacing: 1 inch apart
• Weight: 6 pounds
• Package Quantity: 12 per case
• Unit of Measure: EA

Standard Information

• Brand: OATEY COMPANY
• Manufacturer Part Number: 33923
