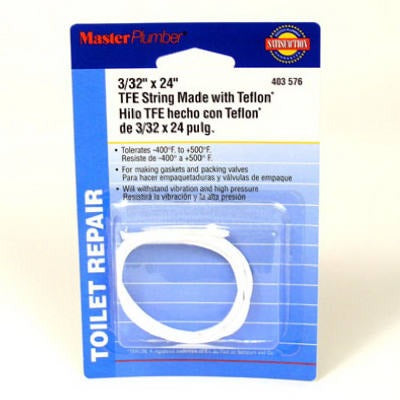

Oatey Company 020030-288 Tfe String Packing 3/32x24 in

Product Description

The OATEY COMPANY 020030-288 is a pure TFE string packing material designed for use in gaskets, valve packing, and sealing applications across plumbing and mechanical systems. Manufactured in string form from pure PTFE (TFE) material, this product measures 3/32 inches in diameter by 24 inches in length. It is engineered to withstand vibration and high-pressure conditions, making it a reliable choice for demanding service environments. Licensed plumbers and pipefitters use this material when repacking valves, forming compression gaskets, or sealing irregular flange faces where conventional pre-cut gaskets are impractical.

This TFE string packing is suited for residential and commercial plumbing applications wherever a conformable, chemically inert sealing material is required. It is commonly used on gate valves, globe valves, and stuffing boxes where packing must be replaced during routine maintenance or repair. Its pure Teflon composition makes it compatible with a wide range of fluid media, including water, mild chemicals, and gases handled in typical plumbing systems.

Key Features

• Pure TFE (PTFE) construction for chemical inertness and long service life
• String form allows the material to conform to irregular seating surfaces and valve stems
• Rated to withstand vibration and high-pressure service conditions
• 3/32 inches diameter by 24 inches length provides sufficient material for multiple packing applications
• Sold as a single unit (EA) with package quantity of 12 per case

Compatibility

Designed as an OEM-style replacement packing material for valve stuffing boxes and gasket applications in residential and commercial plumbing systems.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters. Shut off and depressurize the line and fully drain the system before removing existing valve packing or disassembling any flanged joint. Wrap or coil the TFE string into the stuffing box or form it against the sealing surface, then compress evenly using the appropriate gland nut or follower. Follow applicable IPC and local plumbing code requirements for valve maintenance and pressure system work.

Technical Specifications

• Material: Pure TFE (PTFE) Teflon
• Diameter: 3/32 inches
• Length: 24 inches
• Weight: 1.44 pounds
• Unit of Measure: EA
• Package Quantity: 12

Standard Information

• Brand: OATEY COMPANY
• Manufacturer Part Number: 020030-288
