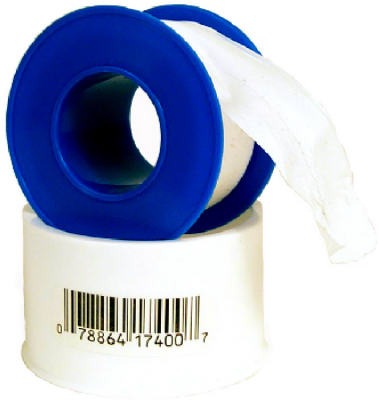

Oatey Company 017400-24 Ptfe Thread Seal Tape 24 Pack

Product Description

The OATEY COMPANY 017400-24 is a PTFE thread seal tape used to create leak-free seals on threaded pipe connections in plumbing, gas, and mechanical systems. Each roll measures 1 inch wide by 520 inches long and is made from virgin white PTFE at a density of 0.4 and a thickness of 0.003 inches. The tape handles a temperature range of -400 degrees F to 500 degrees F, making it suitable for a wide variety of service conditions. This package contains 24 rolls. Licensed plumbers and pipefitters regularly use this product as a standard consumable on residential and commercial jobs.

This tape is applied to male threaded fittings before assembly to prevent leaks on water, gas, and other fluid systems. It is commonly used in residential and light commercial plumbing rough-in, fixture installation, and mechanical piping work. The wide temperature tolerance makes it effective in both hot and cold service lines. Meets Military Specification T-27730A, so it is appropriate for applications where that specification is required.

Key Features

• Virgin white PTFE construction for clean, residue-free application
• 1 inch wide by 520 inches long per roll
• 0.003 inch thickness at 0.4 density for consistent wrap and seal
• Temperature rated from -400 degrees F to 500 degrees F
• Meets Military Specification T-27730A
• Sold as a 24-roll package for stocking job boxes and service vehicles

Compatibility

Designed as a standard thread sealant tape for threaded pipe joints in plumbing, gas, and mechanical piping applications across residential and commercial systems.

Installation Notes

Shut off the water or gas supply and depressurize the line before disassembling any threaded fitting. Wrap the tape clockwise around the male threads, starting at the first thread, and overlap each pass slightly for full coverage. Apply 2 to 3 wraps for most standard fittings. Follow applicable local plumbing codes and IFGC requirements when using on gas lines.

Technical Specifications

• Width: 1 inch
• Length: 520 inches per roll
• Thickness: 0.003 inches
• Density: 0.4
• Temperature Range: -400 degrees F to 500 degrees F
• Material: Virgin White PTFE
• Specification: Meets Mil Spec T-27730A
• Package Quantity: 24 rolls
• Weight: 1.44 pounds (package)

Standard Information

• Brand: OATEY COMPANY
• Manufacturer Part Number: 017400-24
