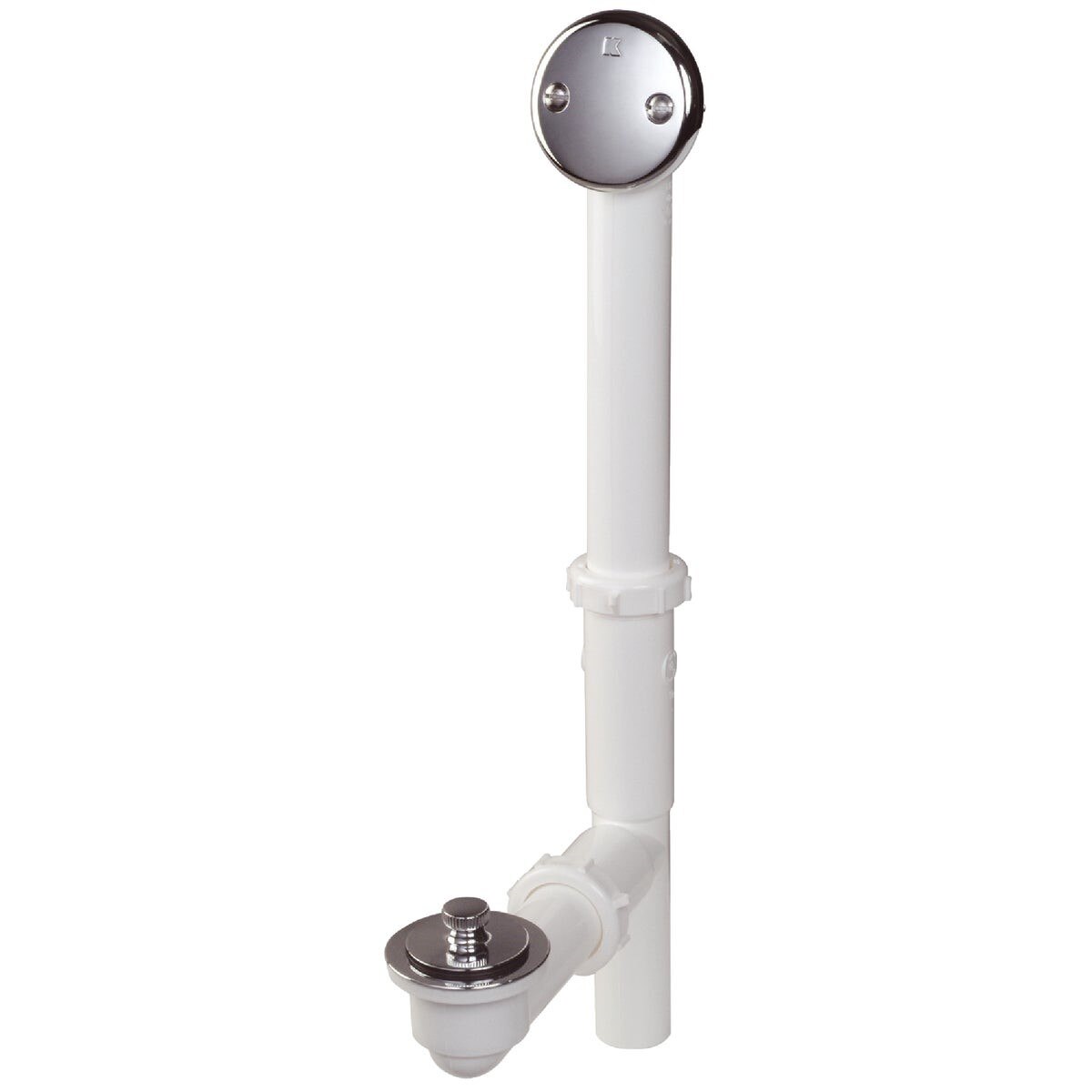

Oatey 62AW Plastic Bath Drain Lift and Turn Polished Chrome

Product Description

The OATEY 62AW is a plastic bath drain assembly with a zinc die cast lift and turn stopper mechanism, designed for standard residential bathtub drain applications. The body is constructed from white plastic with a 1-1/2 inch outer diameter, and the trim components are finished in polished chrome. This drain is installed by licensed plumbers or experienced contractors during new construction or tub drain replacement work. The lift and turn operation allows the end user to control water flow by rotating and lifting the stopper cap, requiring no additional trip lever or overflow linkage for function.

This drain assembly is suited for residential bathtub installations where a simple, reliable drain stopper solution is required. It is commonly used in standard alcove, freestanding, or drop-in tub configurations that accept a 1-1/2 inch drain outlet. The polished chrome trim provides a clean finish compatible with a wide range of fixture hardware styles found in residential bathrooms.

Key Features

• Zinc die cast lift and turn stopper mechanism for reliable open and close operation
• White plastic drain body with 1-1/2 inch outer diameter
• Polished chrome trim finish for a clean, finished appearance
• Self-contained design requires no trip lever or overflow linkage
• Sold individually, packaged and ready for installation

Compatibility

Designed as an OEM-style replacement or new-installation drain for residential bathtubs accepting a 1-1/2 inch drain body.

Installation Notes

Install by a licensed plumber in accordance with applicable IPC or local plumbing code requirements. Shut off the water supply and ensure the tub is dry before removing an existing drain or setting a new one. Use a drain wrench or crossbar tool to seat the drain body and avoid over-torquing the plastic body during installation. Apply plumber's putty or a gasket as required by the drain flange manufacturer to achieve a watertight seal.

Technical Specifications

• Body Material: Plastic
• Stopper Mechanism Material: Zinc Die Cast
• Body Outer Diameter: 1-1/2 inches
• Finish: Polished Chrome
• Weight: 1.403 pounds
• Unit of Measure: Each

Standard Information

• Brand: OATEY
• Manufacturer Part Number: 62AW
