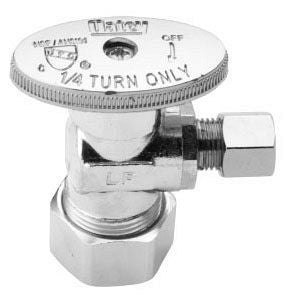

Oatey 4794PCLKLF Quarter Turn Angle Stop Valve

Product Description

The OATEY 4794PCLKLF is a quarter turn angle stop valve designed for residential and light commercial plumbing supply line connections. This lead-free valve features a 1/2 inch nominal sweat inlet and a 3/8 inch OD compression outlet, with a 5-inch extension body that provides clearance in tight installations. The quarter turn ball-style mechanism delivers fast, positive shutoff without multiple handle rotations. A loose key operation limits unauthorized access to the valve, making it well suited for commercial restrooms, multi-unit residential buildings, and any application where controlled access to individual fixture shutoffs is required. Licensed plumbers are the primary installers of this fitting.

This angle stop valve is used to isolate water supply to individual fixtures such as lavatories, toilets, and similar plumbing fixtures. The sweat inlet requires a soldered copper connection to the supply stub-out, while the 3/8 inch OD compression outlet connects directly to standard braided or rigid supply lines. The extended body accommodates wall depth variations common in remodel work and new construction framing. The loose key feature means the valve can only be operated with the accompanying removable key, restricting use to authorized personnel in public or semi-public spaces.

Key Features

• Quarter turn operation provides fast, reliable shutoff with a 90-degree handle rotation
• 1/2 inch nominal sweat inlet for soldered copper pipe connection
• 3/8 inch OD compression outlet compatible with standard fixture supply lines
• 5-inch extension body accommodates wall depth variations in remodel and new construction
• Loose key design restricts valve operation to authorized users
• Lead-free construction meets current potable water plumbing code requirements

Compatibility

Designed as an OEM-style replacement or new-installation angle stop for residential and commercial plumbing systems requiring a 1/2 inch nominal sweat inlet and 3/8 inch OD compression outlet configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the main water supply and depressurize the line before soldering the sweat inlet connection. Allow the fitting to cool completely before pressure-testing the joint, and do not apply heat near the valve body or compression outlet. Confirm that the compression ferrule and nut are properly seated before restoring water supply.

Technical Specifications

• Inlet Connection: 1/2 inch nominal sweat (copper solder)
• Outlet Connection: 3/8 inch OD compression
• Body Extension: 5 inches
• Valve Type: Quarter turn angle stop
• Operation: Loose key
• Lead Free: Yes
• UPC: 038753030784

Standard Information

• Brand: OATEY
• Manufacturer Part Number: 4794PCLKLF
