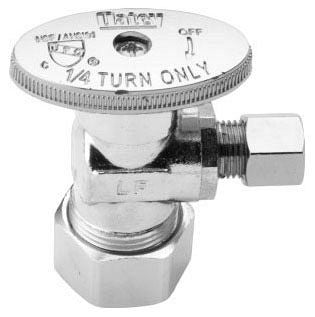

Oatey 4710PCLFBG Quarter Turn Angle Stop 1/2 X 3/8 in

Product Description

The OATEY 4710PCLFBG is a quarter turn angle stop valve designed for residential and light commercial plumbing supply lines. It connects a 1/2 inch copper sweat inlet to a 3/8 inch OD compression outlet, making it a standard under-sink shutoff for fixtures such as faucets, toilets, and ice makers. The quarter turn ball mechanism allows the valve to open or close with a single 90-degree handle rotation, reducing service time and providing a reliable, positive shutoff. Licensed plumbers and experienced DIYers install this fitting during rough-in work or fixture replacements.

This angle stop is suited for residential potable water systems wherever a copper sweat supply line transitions to a 3/8 inch OD flexible supply tube. Typical install locations include kitchen and bathroom sink faucets, toilet fill valves, and similar low-pressure fixture connections. The angled body configuration allows the valve to mount at a wall stub-out and redirect flow toward the fixture supply connection in a single fitting.

Key Features

• Quarter turn ball operation for fast, positive shutoff with no multi-turn wear
• 1/2 inch copper sweat inlet for direct solder connection to copper supply lines
• 3/8 inch OD compression outlet compatible with standard fixture supply tubes
• Angle body directs flow 90 degrees from wall stub-out to fixture
• Lead-free construction meets drinking water compliance requirements

Compatibility

Designed as an OEM-style replacement angle stop for residential plumbing systems requiring a 1/2 inch copper sweat inlet and a 3/8 inch OD compression outlet connection.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson. Shut off the main water supply and drain the line before soldering the sweat connection. Follow applicable IPC and local plumbing code requirements for potable water shutoff valves. Do not apply heat to the valve body after assembly; solder the copper stub-out connection before attaching the supply tube to the compression outlet.

Technical Specifications

• Inlet Connection: 1/2 inch copper sweat
• Outlet Connection: 3/8 inch OD compression
• Valve Type: Quarter turn angle stop
• Lead-Free: Yes
• UPC: 038753030203

Standard Information

• Brand: OATEY
• Manufacturer Part Number: 4710PCLFBG
