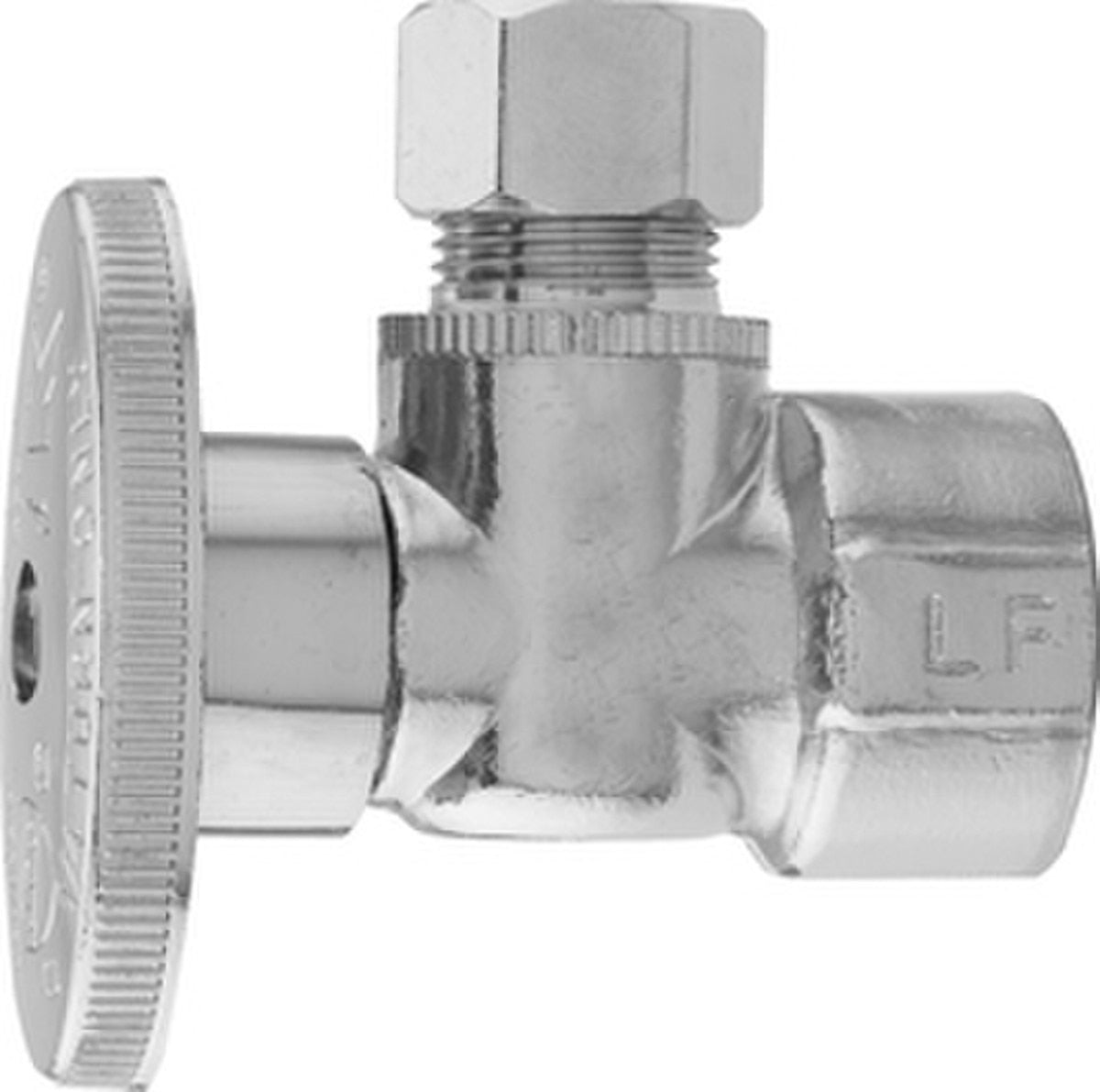

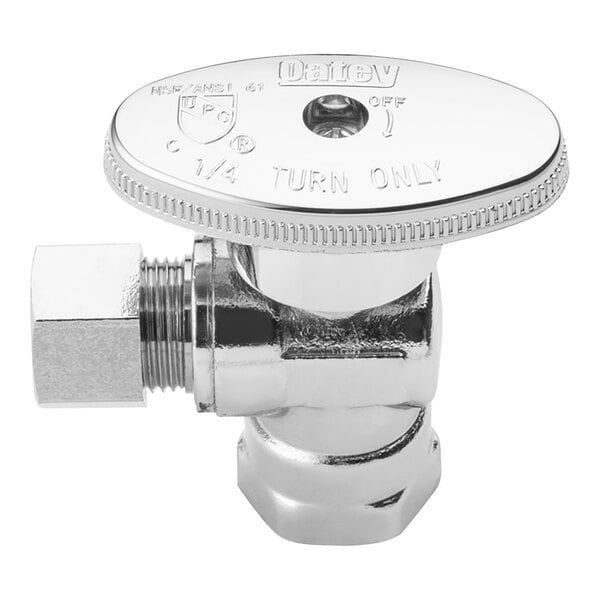

Oatey 4707PCLF 1/4-Turn Angle Water Stop Valve with 1/2 inches FIP Inlet and 3/8 inches O.D. Outlet

Product Description

The OATEY 4707PCLF water stop valve controls the flow of water in plumbing systems. Designed for horizontal connections, this valve is ideal for faucets, water coolers, refrigerators, ice makers, and dishwashers. It features a 1/4-turn design for use in tight spaces, a 1/2" FIP inlet, and a 3/8" O.D. compression outlet. Withstands temperatures from 40 to 160 degrees Fahrenheit and has a maximum pressure of 125 PSI.

• Includes a 1/2" FIP inlet and a 3/8" O.D. compression outlet
• Full-size handle and PTFE seats provide easy operation
• Durable brass construction with a chrome-plated body and ball

Product Highlights

This quarter-turn angle stop valve provides easy on/off operation and is suitable for horizontal connections where a water line passes through a wall.

Product Information

Standard Information

• Brand: OATEY
• Manufacturer Part Number: 4707PCLF

Technical Specifications

• MPN: 4707PCLF
• Brand: OATEY
• Features: Corrosion-Resistant
• Inlet Size: 1/2 Inch
• Material: Chrome-Plated Brass
• Maximum Pressure: 125 PSI
• Maximum Temperature: 160 Degrees F
• Outlet Size: 3/8 Inch
• Type: Angle Stops
• Nominal Size: 1/2, 3/8 in
• End Style: FIP x Compression
• Media: Water
• Body Material: Brass
• Finish: Chrome
