Oatey 39228 Air Admittance Valve 1-1/2 with PVC Sch40 Adapter 20 Branch 8 Stack DFU

Product Description

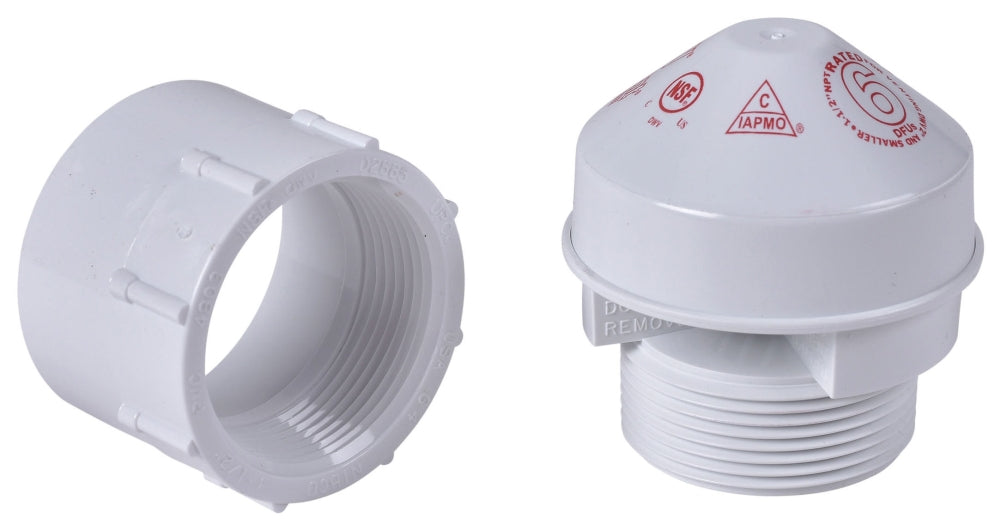

The Oatey 39228 Air Admittance Valve is designed for plumbing drainage systems. It features a one-way mechanism that allows air to enter the system when negative pressures occur. This valve includes a Schedule 40 PVC adapter and can handle media such as air and gas.

• Inlet size of one and one half inches
• Temperature rating of negative forty to positive one hundred fifty degrees Fahrenheit
• Complies with ASSE 1050/1051 standards

Product Highlights

This valve acts as a secondary vent, preventing the escape of sewer gases into a building while allowing air to enter as needed.

Product Information

Standard Information

• Brand: Oatey
• MPN: 39228

Technical Specifications

• Type: 1-Way
• Inlet Size: 1-1/2 Inch
• Body Material: PVC
• Temperature Rating: -40 to 150 Degrees Fahrenheit
• Media Handled: Air, Gas
• Applicable Standard: ASSE 1050/1051, NSF 14, ISO 9001, ICC ESR 1664, IAPMO, IPC, IRC
• Inclusions/Features: Schedule 40 Adapter
• Capacity: 6 DFU
